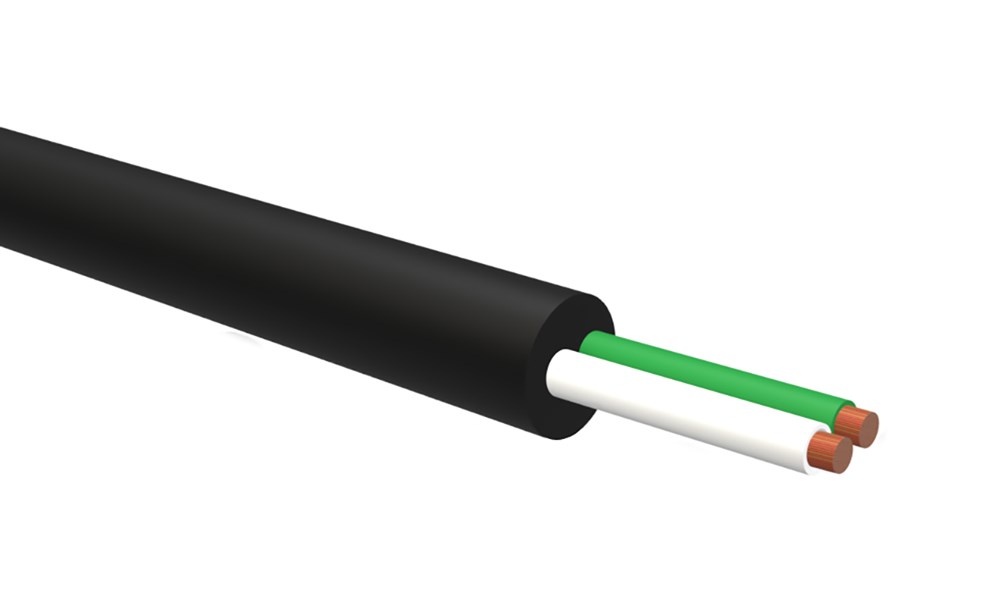

CAN, CAN-FD, FlexRay
RADOX Databus-kablar är speciellt designade för de krävande kraven på spårbunden verksamhet.
• RADOX MVB – Databusskablar (buss för flera fordon)
• RADOX WTB – Databusskablar (tågbuss)
• RADOX CAN – Databusskablar (styrenhetsnätverk)
Funktioner
• Utmärkt dataöverföringsprestanda
• Utmärkt screeningseffektivitet
• Halogenfri och flamskyddsmedel
• Hög motståndskraft mot värme, kyla, ozon och väderpåverkan
• Lätt att av mantla
• Lödbeständig
Technical properties
- Number of cores:
- 2 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyolefin
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black, Other
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 120 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Core colour:
- Several
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 52 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 2
| Product Description | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Unit | Availability | ||
|---|---|---|---|---|---|---|---|
| AUTO 2X0.35MM2P PE-X/TPU BK 500V, HF, FT, 120C | 500 . | 5 mm | 52 mm | m |
Yes
|
|
|
| RADOX AUTO 2X0.75mm2.P BLACK 60VDC, 155S, 150C | 4000 . | m |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AUTO 2X0.35MM2P PE-X/TPU BK 500V, HF, FT, 120C | N/A | N/A | N/A | N/A | Yes | No | No | No |
Yes
|
|
|
| RADOX AUTO 2X0.75mm2.P BLACK 60VDC, 155S, 150C |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Halogen free | Conductor category | Colour | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AUTO 2X0.35MM2P PE-X/TPU BK 500V, HF, FT, 120C | 2 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Black | Several | Tinned | Yes | 52 mm |
Yes
|
|
|
| RADOX AUTO 2X0.75mm2.P BLACK 60VDC, 155S, 150C | Black | Black | Yes |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| AUTO 2X0.35MM2P PE-X/TPU BK 500V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox CAN/ CAN-FD / FlexRay | AUTO 2X0.35MM2.P DATABUS PE-X/TPU SKH2023TOMMY3 | 12568380 |
Yes
|
|
|
| RADOX AUTO 2X0.75mm2.P BLACK 60VDC, 155S, 150C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox CAN/ CAN-FD / FlexRay | RADOX AUTO 2X0.75MM2.P SVART SKH2023TOMMY3 | 12566216 |
No
|
|
|
- Total: 2
