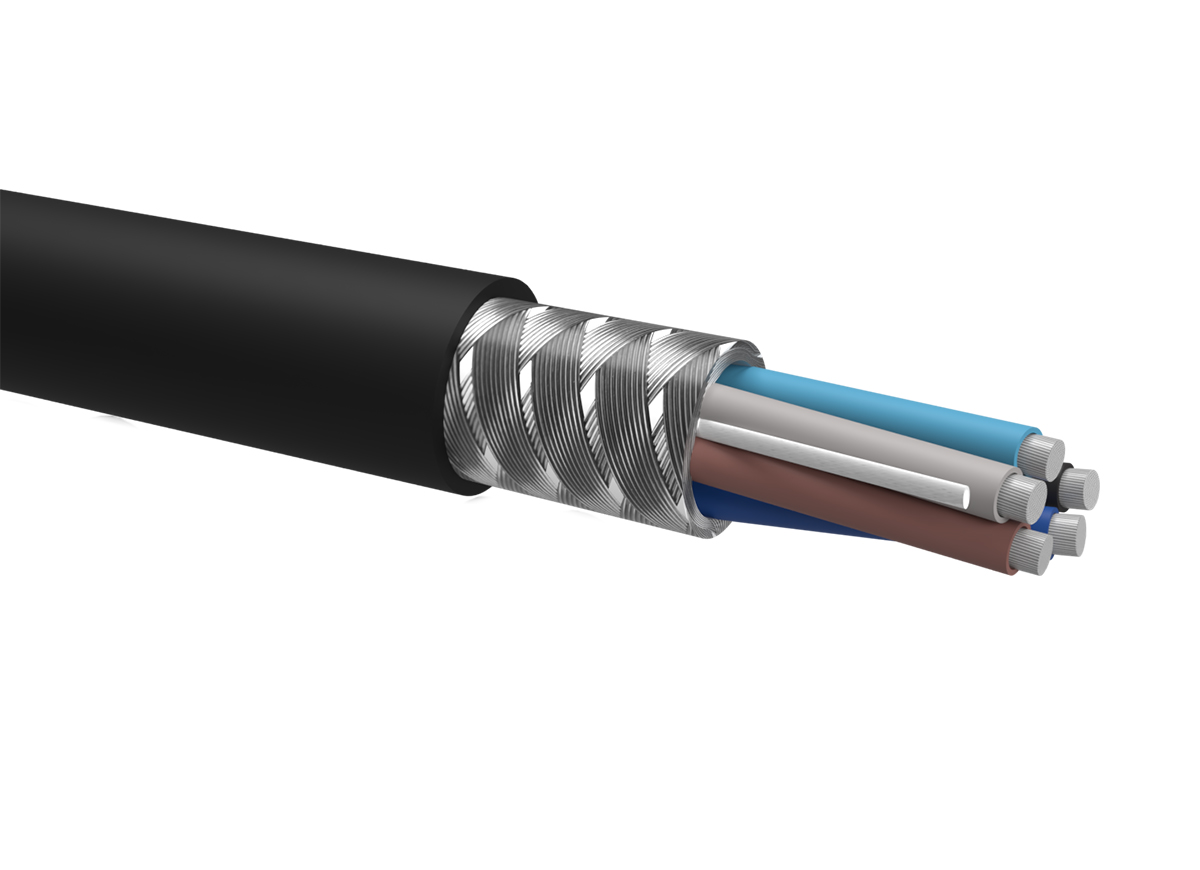

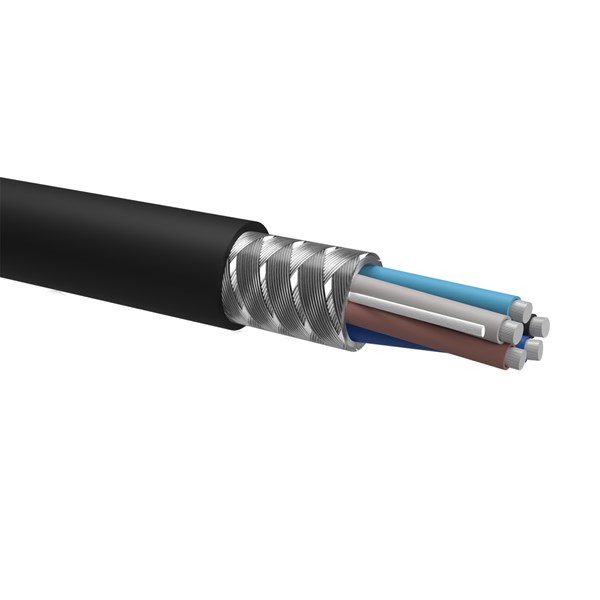

RADOX MARIN MFH-S B
Very flexible more conductor cable for fixed and free installations of power, control and lighting applications in harsh environments such as diesel engines, ship oil platforms and other offshore units.
Resistant to oil and drill bits according to NEK TS 606
The flexibility of the cables makes installation safe and easy.
Especially in small areas that are connection points for gears and motors.
The outer casing of the cable is specially designed to give small mechanical forces when you pull the cable and at the same time maintain the mechanical properties of the insulation.
Technical properties
- Number of cores:
- 3 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyolefin
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 120 °C
- Screen:
- Yes
- Protective barrier:
- N/A
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-120 °C
- Core colour:
- Several
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 17.25 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 1
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| RADOX MFH-S B, 3x0.5mm2,BLACK EMC, HF, FT, 120C | 0.5 mm² | 2000 . | 5.75 mm | 17.25 mm | m |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Approved according to DNV | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX MFH-S B, 3x0.5mm2,BLACK EMC, HF, FT, 120C | N/A | N/A | N/A | N/A | Yes | Yes | No | No |
|
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX MFH-S B, 3x0.5mm2,BLACK EMC, HF, FT, 120C | 3 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | -40-120 °C | Copper | Yes | 120 °C | Yes | N/A | Braiding | N/A | No | Yes | Class 5 = flexible | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 17.25 mm |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX MFH-S B, 3x0.5mm2,BLACK EMC, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Marine Cable - Radox MFH-S B, Multi conductor | MFH-S B | 85002705 |
No
|
|
|
- Total: 1
