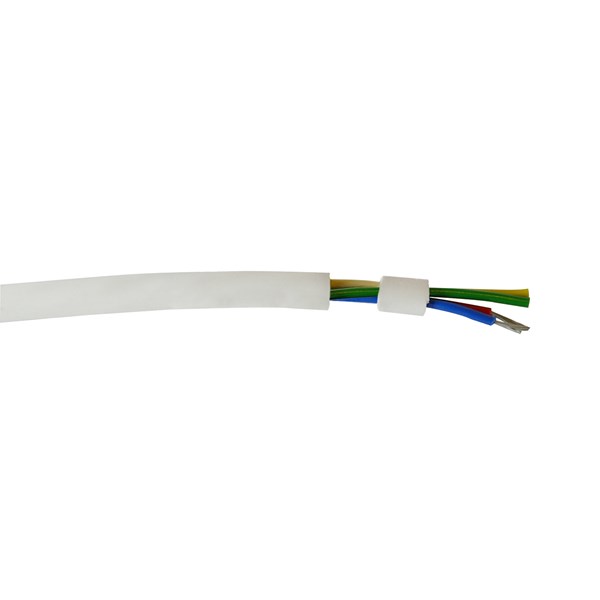

DEF-Y (Defense)
Flexible signal cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Tinned copper
Conductor insulation: PVC
Core identification: According def 61-12.
Outer sheath: PVC
Sheath colour: Grey
Technical data:
Rating voltage: 300 V
Test voltage: 1000 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Minimum bending radius: 15 x cable diameter
Oil resistance: Good
Flame resistance: IEC 228
Technical properties
- Number of cores:
- 2 ., 3 ., 4 ., 6 ., 8 ., 12 ., 18 ., 25 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey, White, Black
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 17 mm, 18 mm, 20 mm, 23 mm, 25 mm, 30.5 mm, 37 mm, 44.5 mm, 28 mm, 29.5 mm, 32.5 mm, 37.5 mm, 40 mm
Show more
Item List
- Total: 44
- Total: 44
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 44
- Total: 44
Similar Options
Approvals
- Total: 44
| Product Description | Approved according to IEC 228 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEF-Y, 2x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 2x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 2x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 2x0.22mm2, WHITE TYPE DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 2x0.22mm2, WHITE TYPE DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DEF-Y, 2x0.22mm2, WHITE DRUM,TYPE DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 3x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 3x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 3x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 4x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 4x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 4x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 4x0.22mm2, BLACK DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 6x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 6x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 6x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 6x0.22mm2, BLACK DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 8x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 8x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DEF-Y, 8x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 12x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 12x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 12x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 18x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 18x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DEF-Y, 18x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 25x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 25x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DEF-Y, 25x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 2x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 2x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 2x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 3x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 3x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 3x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 4x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 4x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 4x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 6x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 6x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DEF-Y, 6x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DEF-Y, 8x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DEF-Y, 8x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DEF-Y, 8x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
- Total: 44
Technical Properties
- Total: 44
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEF-Y, 2x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 17 mm |
No
|
|
|
| DEF-Y, 2x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 17 mm |
Yes
|
|
|
|||||
| DEF-Y, 2x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 17 mm |
Yes
|
|
|
| DEF-Y, 2x0.22mm2, WHITE TYPE DEF 61-12, 300V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | White | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 17 mm |
Yes
|
|
|
| DEF-Y, 2x0.22mm2, WHITE TYPE DEF 61-12, 300V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 17 mm |
No
|
|
|
|||||
| DEF-Y, 2x0.22mm2, WHITE DRUM,TYPE DEF 61-12, 300V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | White | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 17 mm |
No
|
|
|
| DEF-Y, 3x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 18 mm |
Yes
|
|
|
| DEF-Y, 3x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 18 mm |
Yes
|
|
|
|||||
| DEF-Y, 3x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 18 mm |
Yes
|
|
|
| DEF-Y, 4x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 20 mm |
Yes
|
|
|
| DEF-Y, 4x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 20 mm |
Yes
|
|
|
|||||
| DEF-Y, 4x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 20 mm |
Yes
|
|
|
| DEF-Y, 4x0.22mm2, BLACK DEF 61-12, 300V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Black | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 20 mm |
No
|
|
|
| DEF-Y, 6x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 23 mm |
No
|
|
|
| DEF-Y, 6x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 23 mm |
Yes
|
|
|
|||||
| DEF-Y, 6x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 23 mm |
Yes
|
|
|
| DEF-Y, 6x0.22mm2, BLACK DEF 61-12, 300V, PVC, 70C | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Black | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 23 mm |
Yes
|
|
|
| DEF-Y, 8x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 25 mm |
No
|
|
|
| DEF-Y, 8x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 25 mm |
No
|
|
|
|||||
| DEF-Y, 8x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 25 mm |
No
|
|
|
| DEF-Y, 12x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 30.5 mm |
Yes
|
|
|
| DEF-Y, 12x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 30.5 mm |
Yes
|
|
|
|||||
| DEF-Y, 12x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 30.5 mm |
Yes
|
|
|
| DEF-Y, 18x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 18 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 37 mm |
Yes
|
|
|
| DEF-Y, 18x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 18 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 37 mm |
No
|
|
|
|||||
| DEF-Y, 18x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 18 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 37 mm |
Yes
|
|
|
| DEF-Y, 25x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | 25 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 44.5 mm |
Yes
|
|
|
| DEF-Y, 25x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 25 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 44.5 mm |
No
|
|
|
|||||
| DEF-Y, 25x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 25 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 44.5 mm |
No
|
|
|
| DEF-Y, 2x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 28 mm |
No
|
|
|
| DEF-Y, 2x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 28 mm |
Yes
|
|
|
|||||
| DEF-Y, 2x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 28 mm |
Yes
|
|
|
| DEF-Y, 3x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 29.5 mm |
No
|
|
|
| DEF-Y, 3x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 29.5 mm |
Yes
|
|
|
|||||
| DEF-Y, 3x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 29.5 mm |
Yes
|
|
|
| DEF-Y, 4x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 32.5 mm |
No
|
|
|
| DEF-Y, 4x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 32.5 mm |
Yes
|
|
|
|||||
| DEF-Y, 4x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 32.5 mm |
Yes
|
|
|
| DEF-Y, 6x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 37.5 mm |
Yes
|
|
|
| DEF-Y, 6x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 37.5 mm |
Yes
|
|
|
|||||
| DEF-Y, 6x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 37.5 mm |
No
|
|
|
| DEF-Y, 8x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 40 mm |
Yes
|
|
|
| DEF-Y, 8x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Tinned | 40 mm |
No
|
|
|
|||||
| DEF-Y, 8x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 300 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Tinned | No | 40 mm |
Yes
|
|
|
- Total: 44
Other information
- Total: 44
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| DEF-Y, 2x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070202 |
No
|
|
|
|
| DEF-Y, 2x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070202-100 |
Yes
|
|
|
|
| DEF-Y, 2x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070202-500 |
Yes
|
|
|
|
| DEF-Y, 2x0.22mm2, WHITE TYPE DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070202-1 |
Yes
|
|
|
|
| DEF-Y, 2x0.22mm2, WHITE TYPE DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070202-1-100 |
No
|
|
|
|
| DEF-Y, 2x0.22mm2, WHITE DRUM,TYPE DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070202-1-500 |
No
|
|
|
|
| DEF-Y, 3x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070203 |
Yes
|
|
|
|
| DEF-Y, 3x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070203-100 |
Yes
|
|
|
|
| DEF-Y, 3x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070203-500 |
Yes
|
|
|
|
| DEF-Y, 4x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070204 |
Yes
|
|
|
|
| DEF-Y, 4x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070204-100 |
Yes
|
|
|
|
| DEF-Y, 4x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070204-500 |
Yes
|
|
|
|
| DEF-Y, 4x0.22mm2, BLACK DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070204-1 |
No
|
|
|
|
| DEF-Y, 6x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070206 |
No
|
|
|
|
| DEF-Y, 6x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070206-100 |
Yes
|
|
|
|
| DEF-Y, 6x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070206-500 |
Yes
|
|
|
|
| DEF-Y, 6x0.22mm2, BLACK DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070206-1 |
Yes
|
|
|
|
| DEF-Y, 8x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070208 |
No
|
|
|
|
| DEF-Y, 8x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070208-100 |
No
|
|
|
|
| DEF-Y, 8x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070208-500 |
No
|
|
|
|
| DEF-Y, 12x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070212 |
Yes
|
|
|
|
| DEF-Y, 12x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | DEF-Y, 12X0.22MM2, GRÅ | 070212-100 |
Yes
|
|
|
| DEF-Y, 12x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070212-500 |
Yes
|
|
|
|
| DEF-Y, 18x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070218 |
Yes
|
|
|
|
| DEF-Y, 18x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | DEF-Y, 18X0.22MM2, GRÅ | 070218-100 |
No
|
|
|
| DEF-Y, 18x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070218-500 |
Yes
|
|
|
|
| DEF-Y, 25x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070225 |
Yes
|
|
|
|
| DEF-Y, 25x0.22mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | DEF-Y, 25X0.22MM2, GRÅ | 070225-100 |
No
|
|
|
| DEF-Y, 25x0.22mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070225-500 |
No
|
|
|
|
| DEF-Y, 2x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070252 |
No
|
|
|
|
| DEF-Y, 2x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070252-100 |
Yes
|
|
|
|
| DEF-Y, 2x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070252-500 |
Yes
|
|
|
|
| DEF-Y, 3x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070253 |
No
|
|
|
|
| DEF-Y, 3x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070253-100 |
Yes
|
|
|
|
| DEF-Y, 3x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070253-500 |
Yes
|
|
|
|
| DEF-Y, 4x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070254 |
No
|
|
|
|
| DEF-Y, 4x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070254-100 |
Yes
|
|
|
|
| DEF-Y, 4x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070254-500 |
Yes
|
|
|
|
| DEF-Y, 6x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070256 |
Yes
|
|
|
|
| DEF-Y, 6x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | DEF-Y, 6X0.5MM2, GRÅ | 070256-100 |
Yes
|
|
|
| DEF-Y, 6x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070256-500 |
No
|
|
|
|
| DEF-Y, 8x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070258 |
Yes
|
|
|
|
| DEF-Y, 8x0.5mm2, GREY DEF 61-12, 300V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | DEF-Y, 8X0.5MM2, GRÅ | 070258-100 |
No
|
|
|
| DEF-Y, 8x0.5mm2, GREY DRUM, DEF 61-12, 300V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DEF-Y | 070258-500 |
Yes
|
|
|
- Total: 44
Back to top
Do you need help finding the right product or other advice contact us.
