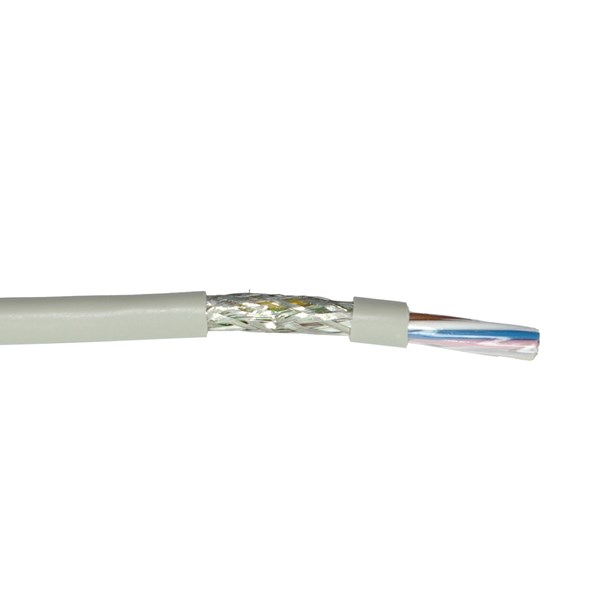

DINFLEX-CY (LiYCY) - Spool 100m
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned copper wire, which protects against mechanical stress and particular it isolates all electrical frequency as well inside and outside the cable (EMC Directive). It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath identification: Grey PETP-foil
Technical data:
Rating voltage: 0.14 mm² = 350 V > 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V > 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Technical properties
- Number of cores:
- 4 ., 2 ., 3 ., 5 ., 6 ., 7 ., 8 ., 10 ., 21 ., 27 ., 12 ., 16 ., 25 ., 28 ., 32 ., 40 ., 48 ., 50 ., 37 ., 20 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Protective barrier:
- N/A
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 27.5 mm, 18.5 mm, 19.5 mm, 20.5 mm, 23 mm, 23.5 mm, 24.5 mm, 26.5 mm, 31 mm, 38 mm, 40 mm, 22.5 mm, 25 mm, 27 mm, 29 mm, 33 mm, 37.5 mm, 42 mm, 46.5 mm, 53.5 mm, 25.5 mm, 34 mm, 40.5 mm, 42.5 mm, 47 mm, 28.5 mm, 31.5 mm, 37 mm, 45.5 mm, 30 mm, 35 mm, 41 mm, 35.5 mm, 44.5 mm, 32.5 mm, 36.5 mm, 50 mm, 53 mm, 56.5 mm, 63 mm, 64 mm, 34.5 mm, 64.5 mm, 46 mm, 60 mm, 55 mm
Show more
Item List
- Total: 64
- Total: 64
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 64
- Total: 64
Similar Options
Approvals
- Total: 64
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-CY, 2x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 5x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 7x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 10x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 12x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 16x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 3x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 4x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 5x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 7x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 10x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 2x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 3x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 4x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 5x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 7x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 4x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 5x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 5x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 14x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 16x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 20x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 24x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 16x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 4x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 2x2x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 3x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 6x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 7x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 8x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 10x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 21x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 27x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 5x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 7x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 8x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 10x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 12x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 16x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 21x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 25x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 25x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 37x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 6x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 4x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 4x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 5x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 3x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 4x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-CY, 3x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-CY, 2x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
- Total: 64
Technical Properties
- Total: 64
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-CY, 2x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 24.5 mm |
Yes
|
|
|
| DINFLEX-CY, 5x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 31 mm |
No
|
|
|
| DINFLEX-CY, 7x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 34 mm |
No
|
|
|
| DINFLEX-CY, 10x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 10 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 40.5 mm |
No
|
|
|
| DINFLEX-CY, 12x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 42.5 mm |
Yes
|
|
|
| DINFLEX-CY, 16x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 16 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 47 mm |
No
|
|
|
| DINFLEX-CY, 2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27 mm |
Yes
|
|
|
| DINFLEX-CY, 3x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 28.5 mm |
No
|
|
|
| DINFLEX-CY, 4x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 31.5 mm |
No
|
|
|
| DINFLEX-CY, 5x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 34 mm |
No
|
|
|
| DINFLEX-CY, 7x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 37 mm |
No
|
|
|
| DINFLEX-CY, 10x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 10 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 45.5 mm |
No
|
|
|
| DINFLEX-CY, 2x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 30 mm |
No
|
|
|
| DINFLEX-CY, 3x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 31.5 mm |
No
|
|
|
| DINFLEX-CY, 4x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 35 mm |
No
|
|
|
| DINFLEX-CY, 5x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 38 mm |
Yes
|
|
|
| DINFLEX-CY, 7x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 41 mm |
Yes
|
|
|
| DINFLEX-CY, 4x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 40.5 mm |
Yes
|
|
|
| DINFLEX-CY, 5x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 44.5 mm |
Yes
|
|
|
| DINFLEX-CY, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27.5 mm |
No
|
|
|
| DINFLEX-CY, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 29 mm |
No
|
|
|
| DINFLEX-CY, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 30 mm |
No
|
|
|
| DINFLEX-CY, 5x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 10 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 32.5 mm |
No
|
|
|
| DINFLEX-CY, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 36.5 mm |
No
|
|
|
| DINFLEX-CY, 14x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 28 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 50 mm |
Yes
|
|
|
| DINFLEX-CY, 16x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 32 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 53 mm |
No
|
|
|
| DINFLEX-CY, 20x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 40 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 56.5 mm |
No
|
|
|
| DINFLEX-CY, 24x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 48 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 63 mm |
No
|
|
|
| DINFLEX-CY, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 50 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 64 mm |
No
|
|
|
| DINFLEX-CY, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 33 mm |
Yes
|
|
|
| DINFLEX-CY, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 34.5 mm |
No
|
|
|
| DINFLEX-CY, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 36.5 mm |
No
|
|
|
| DINFLEX-CY, 16x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 32 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 64.5 mm |
No
|
|
|
| DINFLEX-CY, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 42 mm |
No
|
|
|
| DINFLEX-CY, 4x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 46 mm |
Yes
|
|
|
| DINFLEX-CY, 2x2x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 46.5 mm |
No
|
|
|
| DINFLEX-CY, 3x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 19.5 mm |
No
|
|
|
| DINFLEX-CY, 6x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 23.5 mm |
No
|
|
|
| DINFLEX-CY, 7x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 24.5 mm |
No
|
|
|
| DINFLEX-CY, 8x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 26.5 mm |
No
|
|
|
| DINFLEX-CY, 10x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 10 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 31 mm |
Yes
|
|
|
| DINFLEX-CY, 21x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 21 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 38 mm |
No
|
|
|
| DINFLEX-CY, 27x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 27 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 40 mm |
No
|
|
|
| DINFLEX-CY, 5x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27 mm |
No
|
|
|
| DINFLEX-CY, 7x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 29 mm |
No
|
|
|
| DINFLEX-CY, 8x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 33 mm |
No
|
|
|
| DINFLEX-CY, 10x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 10 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 37.5 mm |
Yes
|
|
|
| DINFLEX-CY, 12x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 37.5 mm |
Yes
|
|
|
| DINFLEX-CY, 16x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 16 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 42 mm |
No
|
|
|
| DINFLEX-CY, 21x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 21 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 46.5 mm |
No
|
|
|
| DINFLEX-CY, 25x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 25 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 53.5 mm |
No
|
|
|
| DINFLEX-CY, 25x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 25 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | No | Class 5 = flexible | Several | Bare | 41 mm |
No
|
|
|
|||||
| DINFLEX-CY, 37x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 37 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | No | Class 5 = flexible | Several | Bare | 60 mm |
No
|
|
|
|||||
| DINFLEX-CY, 6x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | No | Class 5 = flexible | Several | Bare | 37 mm |
No
|
|
|
|||||
| DINFLEX-CY, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 20 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | No | Class 5 = flexible | Several | Bare | 55 mm |
No
|
|
|
|||||
| DINFLEX-CY, 4x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27.5 mm |
No
|
|
|
| DINFLEX-CY, 2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 18.5 mm |
Yes
|
|
|
| DINFLEX-CY, 4x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 20.5 mm |
Yes
|
|
|
| DINFLEX-CY, 5x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 23 mm |
Yes
|
|
|
| DINFLEX-CY, 2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 22.5 mm |
Yes
|
|
|
| DINFLEX-CY, 3x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 22.5 mm |
Yes
|
|
|
| DINFLEX-CY, 4x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 25 mm |
Yes
|
|
|
| DINFLEX-CY, 3x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 25.5 mm |
No
|
|
|
| DINFLEX-CY, 2x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 35.5 mm |
Yes
|
|
|
- Total: 64
Other information
- Total: 64
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-CY, 2x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010300-100 |
Yes
|
|
|
|
| DINFLEX-CY, 5x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010303-100 |
No
|
|
|
|
| DINFLEX-CY, 7x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010305-100 |
No
|
|
|
|
| DINFLEX-CY, 10x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010307-100 |
No
|
|
|
|
| DINFLEX-CY, 12x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010308-100 |
Yes
|
|
|
|
| DINFLEX-CY, 16x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010310-100 |
No
|
|
|
|
| DINFLEX-CY, 2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010331-100 |
Yes
|
|
|
|
| DINFLEX-CY, 3x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010332-100 |
No
|
|
|
|
| DINFLEX-CY, 4x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010333-100 |
No
|
|
|
|
| DINFLEX-CY, 5x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010334-100 |
No
|
|
|
|
| DINFLEX-CY, 7x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010335-100 |
No
|
|
|
|
| DINFLEX-CY, 10x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010337-100 |
No
|
|
|
|
| DINFLEX-CY, 2x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010360-100 |
No
|
|
|
|
| DINFLEX-CY, 3x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010361-100 |
No
|
|
|
|
| DINFLEX-CY, 4x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010362-100 |
No
|
|
|
|
| DINFLEX-CY, 5x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010363-100 |
Yes
|
|
|
|
| DINFLEX-CY, 7x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010365-100 |
Yes
|
|
|
|
| DINFLEX-CY, 4x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010402-100 |
Yes
|
|
|
|
| DINFLEX-CY, 5x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010403-100 |
Yes
|
|
|
|
| DINFLEX-CY, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010530-100 |
No
|
|
|
|
| DINFLEX-CY, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010531-100 |
No
|
|
|
|
| DINFLEX-CY, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010532-100 |
No
|
|
|
|
| DINFLEX-CY, 5x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010533-100 |
No
|
|
|
|
| DINFLEX-CY, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010534-100 |
No
|
|
|
|
| DINFLEX-CY, 14x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010540-100 |
Yes
|
|
|
|
| DINFLEX-CY, 16x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010542-100 |
No
|
|
|
|
| DINFLEX-CY, 20x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010544-100 |
No
|
|
|
|
| DINFLEX-CY, 24x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010545-100 |
No
|
|
|
|
| DINFLEX-CY, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010546-100 |
No
|
|
|
|
| DINFLEX-CY, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010560-100 |
Yes
|
|
|
|
| DINFLEX-CY, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010561-100 |
No
|
|
|
|
| DINFLEX-CY, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010562-100 |
No
|
|
|
|
| DINFLEX-CY, 16x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010571-100 |
No
|
|
|
|
| DINFLEX-CY, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010600-100 |
No
|
|
|
|
| DINFLEX-CY, 4x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010602-100 |
Yes
|
|
|
|
| DINFLEX-CY, 2x2x0.75mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | 010630-100 |
No
|
|
|
|
| DINFLEX-CY, 3x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010201-100 |
No
|
|
|
|
| DINFLEX-CY, 6x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010204-100 |
No
|
|
|
|
| DINFLEX-CY, 7x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010205-100 |
No
|
|
|
|
| DINFLEX-CY, 8x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010206-100 |
No
|
|
|
|
| DINFLEX-CY, 10x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010208-100 |
Yes
|
|
|
|
| DINFLEX-CY, 21x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010215-100 |
No
|
|
|
|
| DINFLEX-CY, 27x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010218-100 |
No
|
|
|
|
| DINFLEX-CY, 5x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010253-100 |
No
|
|
|
|
| DINFLEX-CY, 7x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010255-100 |
No
|
|
|
|
| DINFLEX-CY, 8x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010256-100 |
No
|
|
|
|
| DINFLEX-CY, 10x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010257-100 |
Yes
|
|
|
|
| DINFLEX-CY, 12x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010258-100 |
Yes
|
|
|
|
| DINFLEX-CY, 16x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010260-100 |
No
|
|
|
|
| DINFLEX-CY, 21x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010264-100 |
No
|
|
|
|
| DINFLEX-CY, 25x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010266-100 |
No
|
|
|
|
| DINFLEX-CY, 25x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | DINFLEX-CY, 25X0.14MM2, GRÅ | 010217-100 |
No
|
|
|
| DINFLEX-CY, 37x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | DINFLEX-CY, 37X0.25MM2, GRÅ | 010272-100 |
No
|
|
|
| DINFLEX-CY, 6x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | DINFLEX-CY, 6X0.5MM2, GRÅ | 010334-1-100 |
No
|
|
|
| DINFLEX-CY, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) - Twisted pair | DINFLEX-CY, 10X2X0.25MM2, GRÅ | 010567-100 |
No
|
|
|
| DINFLEX-CY, 4x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010302-100 |
No
|
|
|
|
| DINFLEX-CY, 2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010200-100 |
Yes
|
|
|
|
| DINFLEX-CY, 4x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010202-100 |
Yes
|
|
|
|
| DINFLEX-CY, 5x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010203-100 |
Yes
|
|
|
|
| DINFLEX-CY, 2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010250-100 |
Yes
|
|
|
|
| DINFLEX-CY, 3x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010251-100 |
Yes
|
|
|
|
| DINFLEX-CY, 4x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010252-100 |
Yes
|
|
|
|
| DINFLEX-CY, 3x0.34mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-CY (LiYCY) | 010301-100 |
No
|
|
|
|
| DINFLEX-CY, 2x1.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | Cable - DINFLEX-CY (LiYCY) | 010400-100 |
Yes
|
|
|
- Total: 64
Back to top
Do you need help finding the right product or other advice contact us.
