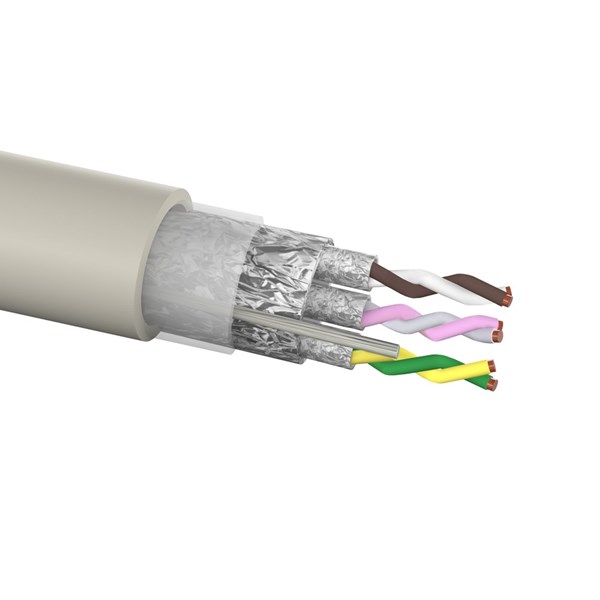

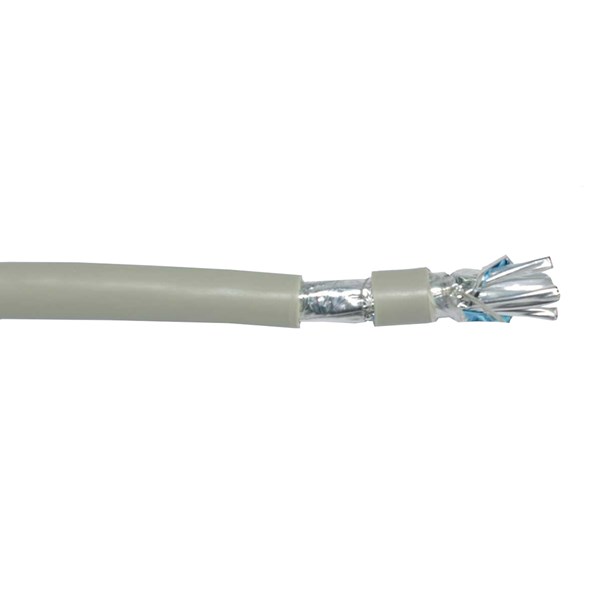

DINFLEX 43
Anslutningskabel för data- och elektronikutrustning inomhus. Försedd med skärm av aluminiumfolie, dels kring varje par och dels gemensamt.
Uppbyggnad
Ledare: Blank flertrådig koppar
Ledarisolation: Polyeten
Ledarfärg: Enligt DIN 47100
Bandering: PETP-folie
Skärm: Aluminiumfolie runt varje par. Gemensam skärm av aluminiumfolie. Bit tråd av koppar
Yttermantel: PVC
Mantelfärg: Grå
Tekniska data:
Märkspänning: 250 V
Ledarresistans: 98 Ohm/km
Parkapacitans: 75 Pf/km
Temperaturområde: -5ºC till +80ºC
Technical properties
- Number of cores:
- 4 ., 8 ., 16 ., 6 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Protective barrier:
- N/A
- Armouring/reinforcement:
- Other
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 250 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 24 mm, 43.5 mm, 50 mm, 34.5 mm
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 11
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | 0.22 mm² | 1 . | 4.8 mm | 24 mm | 0.22 mm | m | 250 V |
Yes
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 0.22 mm² | 100 . | 4.8 mm | 24 mm | 0.22 mm | m |
No
|
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 0.22 mm² | 500 . | 4.8 mm | 24 mm | 0.22 mm | m | 250 V |
Yes
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 0.22 mm² | 100 . | 6.9 mm | 34.5 mm | 0.22 mm | m |
No
|
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 0.22 mm² | 500 . | 6.9 mm | 34.5 mm | 0.22 mm | m | 250 V |
Yes
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | 0.22 mm² | 1 . | 8.7 mm | 43.5 mm | 0.22 mm | m | 250 V |
Yes
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 0.22 mm² | 100 . | 8.7 mm | 43.5 mm | 0.22 mm | m |
No
|
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 0.22 mm² | 500 . | 8.7 mm | 43.5 mm | 0.22 mm | m | 250 V |
Yes
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | 0.22 mm² | 1 . | 10 mm | 50 mm | 0.22 mm | m | 250 V |
Yes
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 0.22 mm² | 100 . | 10 mm | 50 mm | 0.22 mm | m |
No
|
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 0.22 mm² | 5000 . | 10 mm | 50 mm | 0.22 mm | m | 250 V |
No
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 11
Technical Properties
- Total: 11
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 24 mm |
Yes
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | No | Class 5 = flexible | Several | Bare | 24 mm |
No
|
|
|
|||||
| DINFLEX 4302, 2x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 24 mm |
Yes
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | No | Class 5 = flexible | Several | Bare | 34.5 mm |
No
|
|
|
|||||
| DINFLEX 4303, 3x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 34.5 mm |
Yes
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 43.5 mm |
Yes
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | No | Class 5 = flexible | Several | Bare | 43.5 mm |
No
|
|
|
|||||
| DINFLEX 4304, 4x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 43.5 mm |
Yes
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | 16 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 50 mm |
Yes
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | 16 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | No | Class 5 = flexible | Several | Bare | 50 mm |
No
|
|
|
|||||
| DINFLEX 4308, 8x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 16 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Other | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 50 mm |
No
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030250-T |
Yes
|
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | DINFLEX 4302, 2X2X0.22MM2, GRÅ | 030250-T-100 |
No
|
|
|
| DINFLEX 4302, 2x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030250-T-500 |
Yes
|
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | DINFLEX 4303, 3X2X0.22MM2, GRÅ | 030251-T-100 |
No
|
|
|
| DINFLEX 4303, 3x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030251-T-500 |
Yes
|
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030252-T |
Yes
|
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | DINFLEX 4304, 4X2X0.22MM2, GRÅ | 030252-T-100 |
No
|
|
|
| DINFLEX 4304, 4x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030252-T-500 |
Yes
|
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030256-T |
Yes
|
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DIN 47100, 250V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | DINFLEX 4308, 8X2X0.22MM2, GRÅ | 030256-T-100 |
No
|
|
|
| DINFLEX 4308, 8x2x0.22mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX 43 | 030256-T-500 |
No
|
|
|
- Total: 11
