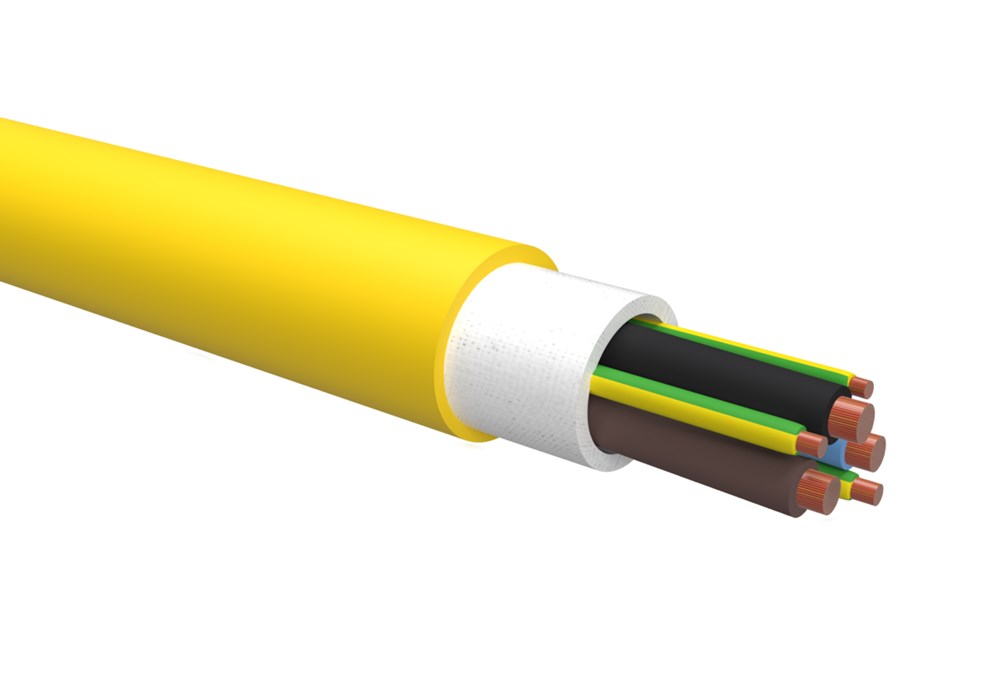

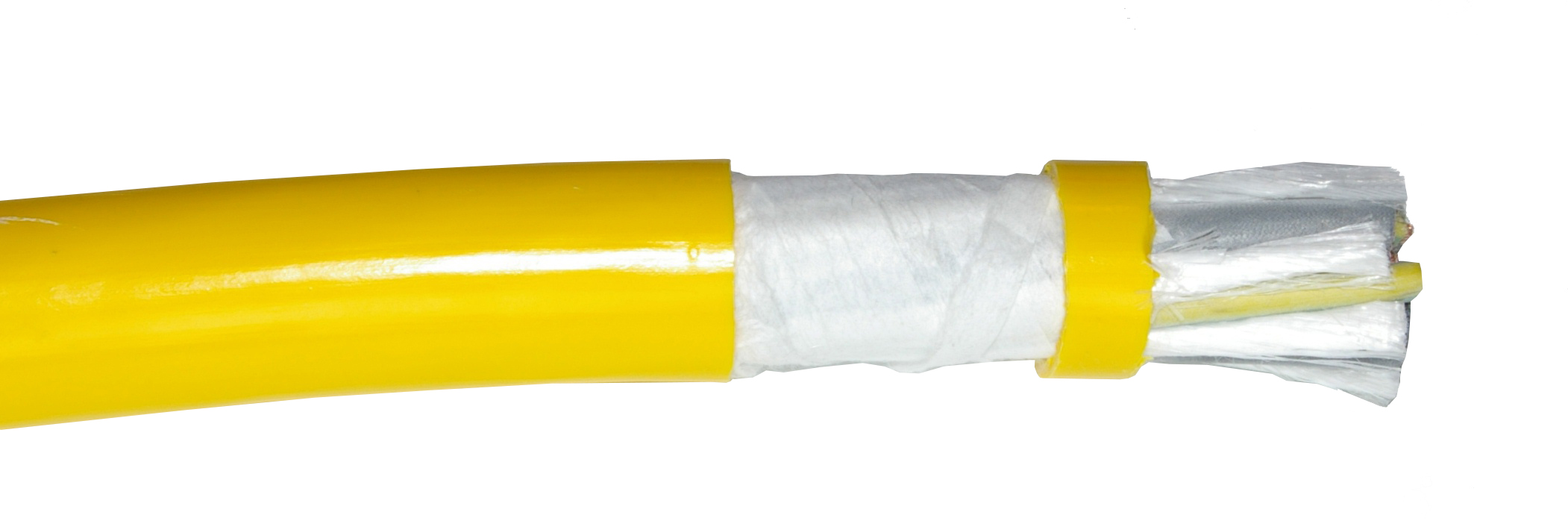

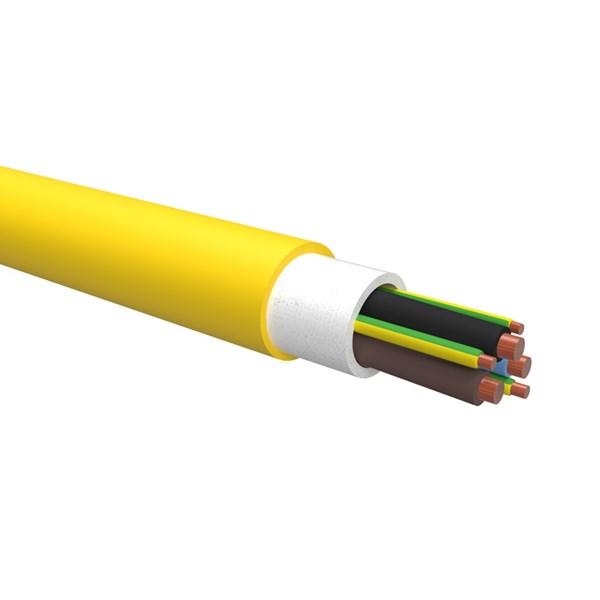

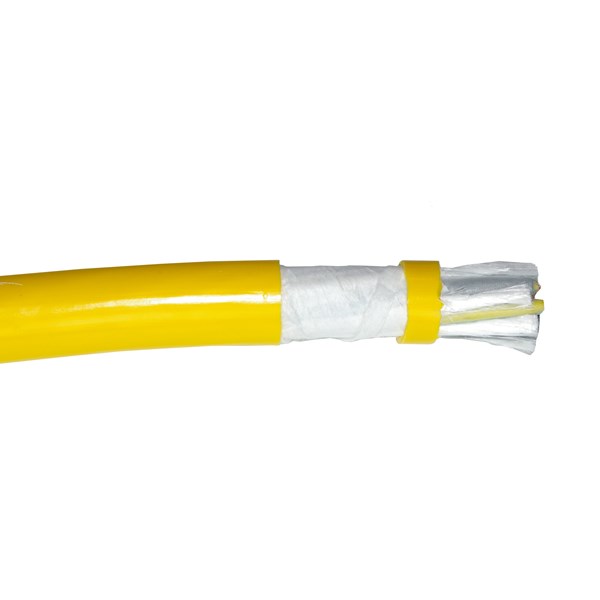

Wilbaflex
Allmänt
Mycket flexibel halogenfri gruvkabel avsedd för matning och styrning av motorer för mobil utrustning.
Anpassad för av- och upprullning på trumma. Kabeln är mycket tålig mot mekaniska påkänningar såsom drag- och nötning.
Beständig mot olja, bensin och fetter.
Uppbyggnad
Ledare: Fintrådig, flertrådig koppar enligt HD383, IEC 60228 Klass 5
Ledarisolation: PUR/ PUR
Mantelisolation: EPR/ PUR
Mantelfärg: GUL RAL 1021
Tekniska data
Driftspänning: Uo/ U: 600/1000 V
Provspänning: 4000 V
Temp. område: -40º C till +80º C (90º C max ledartemp)
Minsta böjradie: 10 x kabelns diameter
Godkännanden, flambeständighet
IEC 603 332-3
Technical properties
- Number of cores:
- 6 .
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| WILBAFLEX 3X70+3G16 YELLOW EPR/PUR YELLOW | 200 . | m |
No
|
|
|
| WILBAFLEX 3X95+3G16 YELLOW EPR/PUR YELLOW | 200 . | m |
No
|
|
|
| WILBAFLEX 3X25+3G4 YELLOW EPR/PUR YELLOW | 200 . | m |
No
|
|
|
| WILBAFLEX 3X35+3G6 YELLOW EPR/PUR YELLOW | 400 . | m |
No
|
|
|
| WILBAFLEX 3X50+3G10 YELLOW EPR/PUR YELLOW | 200 . | m |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Availability | ||
|---|---|---|---|
| WILBAFLEX 3X70+3G16 YELLOW EPR/PUR YELLOW |
No
|
|
|
| WILBAFLEX 3X95+3G16 YELLOW EPR/PUR YELLOW |
No
|
|
|
| WILBAFLEX 3X25+3G4 YELLOW EPR/PUR YELLOW |
No
|
|
|
| WILBAFLEX 3X35+3G6 YELLOW EPR/PUR YELLOW |
No
|
|
|
| WILBAFLEX 3X50+3G10 YELLOW EPR/PUR YELLOW |
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Number of cores | Availability | ||
|---|---|---|---|---|
| WILBAFLEX 3X70+3G16 YELLOW EPR/PUR YELLOW |
No
|
|
|
|
| WILBAFLEX 3X95+3G16 YELLOW EPR/PUR YELLOW |
No
|
|
|
|
| WILBAFLEX 3X25+3G4 YELLOW EPR/PUR YELLOW |
No
|
|
|
|
| WILBAFLEX 3X35+3G6 YELLOW EPR/PUR YELLOW | 6 . |
No
|
|
|
| WILBAFLEX 3X50+3G10 YELLOW EPR/PUR YELLOW |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| WILBAFLEX 3X70+3G16 YELLOW EPR/PUR YELLOW | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - Wilbaflex | WILBAFLEX 3X70+3G16 GUL | 020991 |
No
|
|
|
| WILBAFLEX 3X95+3G16 YELLOW EPR/PUR YELLOW | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - Wilbaflex | WILBAFLEX 3X95+3G16 GUL | 020992 |
No
|
|
|
| WILBAFLEX 3X25+3G4 YELLOW EPR/PUR YELLOW | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - Wilbaflex | WILBAFLEX 3X25+3G4 GUL | 020993-2 |
No
|
|
|
| WILBAFLEX 3X35+3G6 YELLOW EPR/PUR YELLOW | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - Wilbaflex | WILBAFLEX 3X35+3G6 GUL | 020994 |
No
|
|
|
| WILBAFLEX 3X50+3G10 YELLOW EPR/PUR YELLOW | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - Wilbaflex | WILBAFLEX 3X50+3G10 GUL | 020996 |
No
|
|
|
- Total: 5
