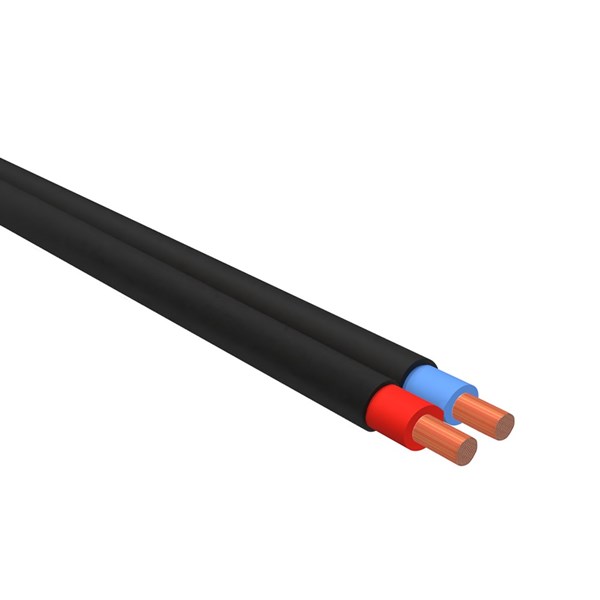

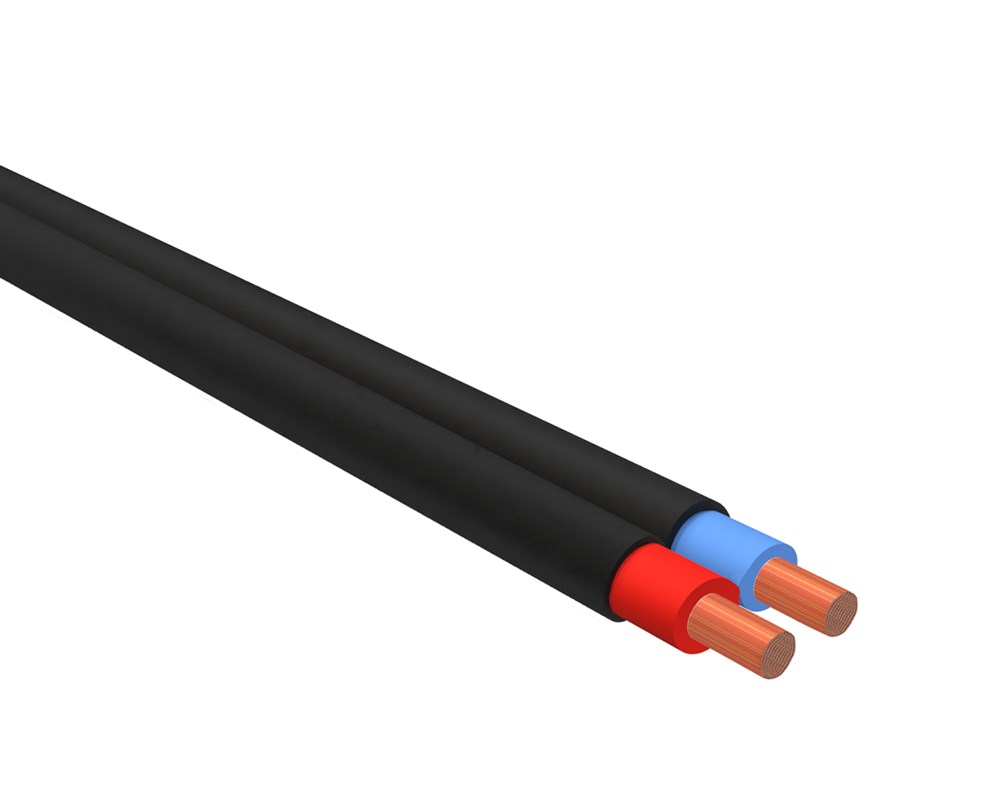

SYYB
Halogen-free for indoors and outdoors, in dry and wet places on motor vehicles or battery-powered equipment such as trucks and conveyors in the field. also in high quality as a "booster" cable.
Packaging: Drum
Structure
Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner sheath: TPE
Outer sheath: BLACK.TPE
Inner jacket color red, blue
Technical data:
Operating voltage: 300/500V
Test voltage: 2000V
Temperature range: -40ºC to +90ºC
Minimum bending radius: 6 x cable diameter
Cable area: 10mm² -70mm
Technical properties
- Number of cores:
- 2 .
- Material core insulation:
- Polyurethane (PUR)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyurethane (PUR)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -50-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 70.4 mm, 78.4 mm, 104 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SYYB, TWIN CABLE, 2x35mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | 35 mm² | 500 . | 26 mm | 104 mm | 35 mm | m |
No
|
|
|
| SYYB, TWIN CABLE, 2x10mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | 10 mm² | 1000 . | 17.6 mm | 70.4 mm | 10 mm | m |
No
|
|
|
| SYYB, TWIN CABLE, 2x16mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | 16 mm² | 500 . | 19.6 mm | 78.4 mm | 16 mm | m |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYYB, TWIN CABLE, 2x35mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| SYYB, TWIN CABLE, 2x10mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| SYYB, TWIN CABLE, 2x16mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Halogen free | Conductor category | Single insulated/Double insulated | Core colour | Conductor surface | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYYB, TWIN CABLE, 2x35mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | 2 . | Polyurethane (PUR) | Other | Colour | No | Polyurethane (PUR) | Other | Other | According to IEC/EN 60332-1-2 | -50-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 6 = very flexible | Double insulated | Several | Bare | 104 mm |
No
|
|
|
| SYYB, TWIN CABLE, 2x10mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | 2 . | Polyurethane (PUR) | Other | Colour | No | Polyurethane (PUR) | Other | Other | According to IEC/EN 60332-1-2 | -50-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 6 = very flexible | Double insulated | Several | Bare | 70.4 mm |
No
|
|
|
| SYYB, TWIN CABLE, 2x16mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | 2 . | Polyurethane (PUR) | Other | Colour | No | Polyurethane (PUR) | Other | Other | According to IEC/EN 60332-1-2 | -50-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 6 = very flexible | Double insulated | Several | Bare | 78.4 mm |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SYYB, TWIN CABLE, 2x35mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - SYYB, Twin cable, Red copper | 990055-H |
No
|
|
|
| SYYB, TWIN CABLE, 2x10mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - SYYB, Twin cable, Red copper | 990051-H |
No
|
|
|
| SYYB, TWIN CABLE, 2x16mm2,BLACK OUTER S.RED/BLUE DRUM, 300V,HALOGEN FREE ,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - SYYB, Twin cable, Red copper | 990053-H |
No
|
|
|
- Total: 3
