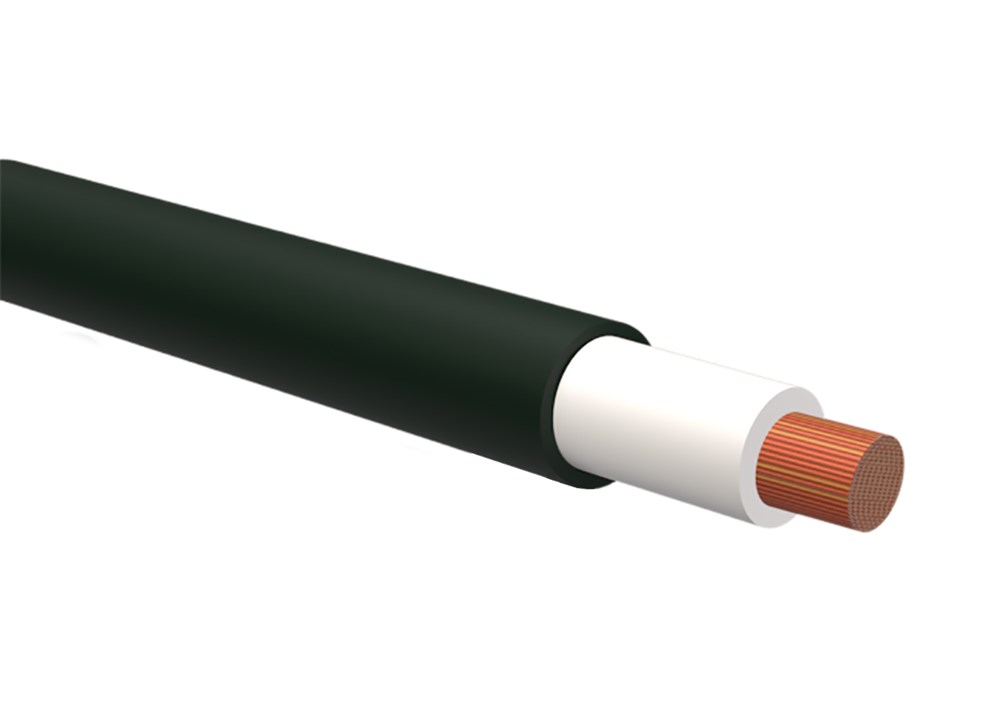

Svetskabel - Dubbelisolerad, ring
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packaging (YD x Hub x Width):
Drum B5: 200mm x 56mm x 88mm
Structure Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheth color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x cable diameter
Approvals:
IEC 60228-6 IEC 60332-1
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Yellow, Orange, Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No, No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Red, Orange, Yellow
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Yellow, Orange, Red, Black
- Conductor surface:
- Bare
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 50.8 mm, 58.4 mm, 64.8 mm, 90 mm, 43.2 mm
Show more
Item List
- Total: 35
- Total: 35
Dimensions
- Total: 35
- Total: 35
Approvals
- Total: 35
| Product Description | Approved according to IEC 60228-6 | Approved according to IEC 60332-1 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 25mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 35mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 50mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, ORANGE COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||
| WELDING CABLE, DOUBLE INSULATED, 70mm2, BLACK COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 70mm2, RED COIL, 600V, PVC, 80C | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 70mm2, YELLOW COIL, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 35
Technical Properties
- Total: 35
- Total: 35
Other information
- Total: 35
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001600-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001600-25 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001607-10 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001607-25 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001611-10 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001611-25 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002500-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002507-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002511-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003507-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003511-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005000-25 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005007-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005011-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001606-10 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001606-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002500-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | SKH2023TOMMY2 | 05002507-10 |
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002511-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002506-10 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002506-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003500-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003500-25 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | SKH2023TOMMY2 | 05003507-10 |
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003511-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003506-10 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003506-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005006-25 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005000-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | SKH2023TOMMY2 | 05005007-10 |
Yes
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, ORANGE COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005011-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005006-10 |
No
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 70mm2, BLACK COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05007000-10 |
Yes
|
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 70mm2, RED COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | SKH2023TOMMY2 | 05007007-10 |
No
|
|
|
| WELDING CABLE, DOUBLE INSULATED, 70mm2, YELLOW COIL, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05007006-10 |
No
|
|
|
- Total: 35
