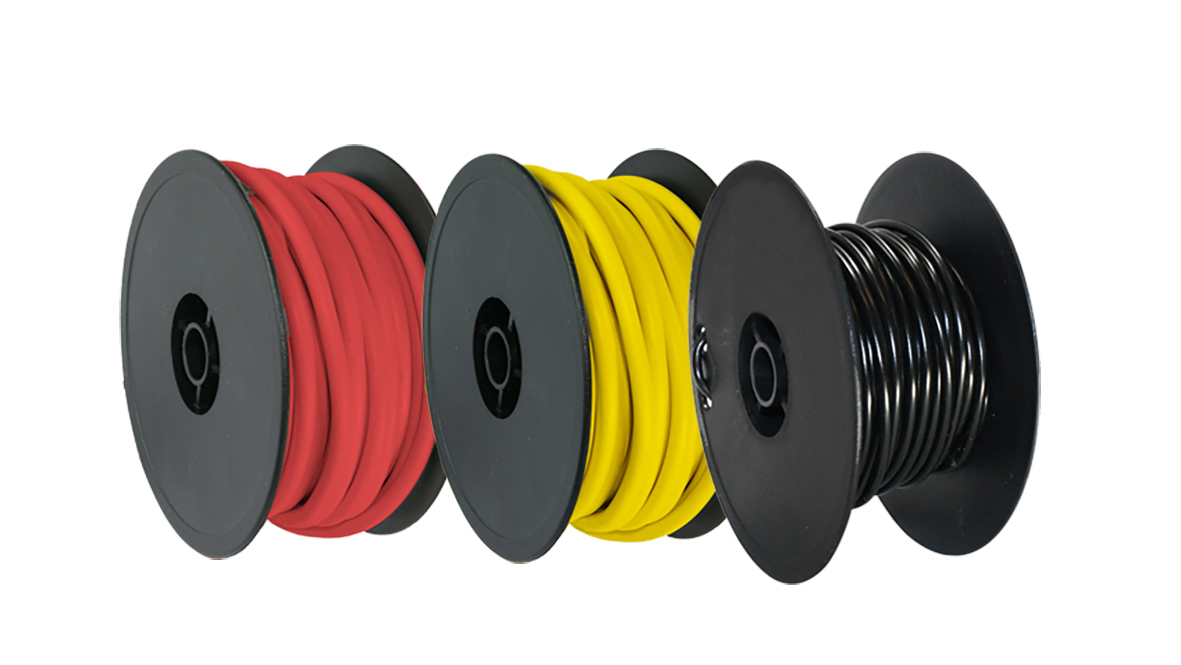

RKUB Single conductor - Mini-spools
Connection cable for vehicle applications. ISO 6722, class A
Packaging (OD x Hub x Width):
Spool B1: 90mm x 11mm x 42mm
Structure:
Conductor: Blank stranded copper, IEC 60228,5
Conductor insulation: PVC, EN 50363,3
Flame retardant: IEC 60332-1-2
Core identification: According to table below
Technical data:
Rating voltage: 60V
Temperature range: -25ºC to +70ºC (-13ºF to +158ºF)
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Yellow, Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Yellow, Red
- Operating temperature:
- -25-70 °C
- Core colour:
- Yellow, Red, Black
- Conductor surface:
- Bare
- Packaging:
- Reel B1
- Min. permitted bending radius, stationary application/permanent installation:
- 10 mm, 12 mm, 14 mm, 16.4 mm
Show more
Item List
- Total: 16
- Total: 16
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
Dimensions
- Total: 16
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | 1.5 mm² | 1 . | 2.5 mm | 10 mm | 1.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 20M | 1.5 mm² | 1 . | 2.5 mm | 10 mm | 1.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 1.5mm2, YELLOW SPOOL B1, 60V, PVC, 70C, 10M | 1.5 mm² | 1 . | 2.5 mm | 10 mm | 1.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | 1.5 mm² | 1 . | 2.5 mm | 10 mm | 1.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 20M | 1.5 mm² | 1 . | 2.5 mm | 10 mm | 1.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 15M | 2.5 mm² | 1 . | 3 mm | 12 mm | 2.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 7M | 2.5 mm² | 1 . | 3 mm | 12 mm | 2.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 15M | 2.5 mm² | 1 . | 3 mm | 12 mm | 2.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 7M | 2.5 mm² | 1 . | 3 mm | 12 mm | 2.5 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | 4 mm² | 1 . | 3.5 mm | 14 mm | 4 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 6M | 4 mm² | 1 . | 3.5 mm | 14 mm | 4 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | 4 mm² | 1 . | 3.5 mm | 14 mm | 4 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 6M | 4 mm² | 1 . | 3.5 mm | 14 mm | 4 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 8M | 6 mm² | 1 . | 4.1 mm | 16.4 mm | 6 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 4M | 6 mm² | 1 . | 4.1 mm | 16.4 mm | 6 mm | roll | 60 V |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 8M | 6 mm² | 1 . | 4.1 mm | 16.4 mm | 6 mm | roll | 60 V |
Yes
|
|
|
- Total: 16
Similar Options
Approvals
- Total: 16
| Product Description | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 20M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 1.5mm2, YELLOW SPOOL B1, 60V, PVC, 70C, 10M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 20M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 15M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 7M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 15M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 7M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 6M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 6M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 8M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 4M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 8M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
- Total: 16
Technical Properties
- Total: 16
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 10 mm |
Yes
|
|
|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 20M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 10 mm |
Yes
|
|
|
| RKUB, 1.5mm2, YELLOW SPOOL B1, 60V, PVC, 70C, 10M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Yellow | -25-70 °C | Yellow | Bare | Reel B1 | 10 mm |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 10 mm |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 20M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 10 mm |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 15M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 12 mm |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 7M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 12 mm |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 15M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 12 mm |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 7M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 12 mm |
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 14 mm |
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 6M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 14 mm |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 14 mm |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 6M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 14 mm |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 8M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Bare | Reel B1 | 16.4 mm |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 4M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 16.4 mm |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 8M | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Bare | Reel B1 | 16.4 mm |
Yes
|
|
|
- Total: 16
Other information
- Total: 16
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050660-10 |
Yes
|
|
|
| RKUB, 1.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 20M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050660-20 |
Yes
|
|
|
| RKUB, 1.5mm2, YELLOW SPOOL B1, 60V, PVC, 70C, 10M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050666-10 |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050667-10 |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B1, 60V, PVC, 70C, 20M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050667-20 |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 15M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050700-15 |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B1, 60V, PVC, 70C, 7M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050700-7 |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 15M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050707-15 |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B1, 60V, PVC, 70C, 7M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050707-7 |
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 10M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050720-10 |
Yes
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 6M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050720-6 |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 10M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050727-10 |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B1, 60V, PVC, 70C, 6M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050727-6 |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B1, 60V, PVC, 70C, 8M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050740-8 |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 4M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050747-4 |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B1, 60V, PVC, 70C, 8M | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKUB, Single conductor, Red copper | 050747-8 |
Yes
|
|
|
- Total: 16
