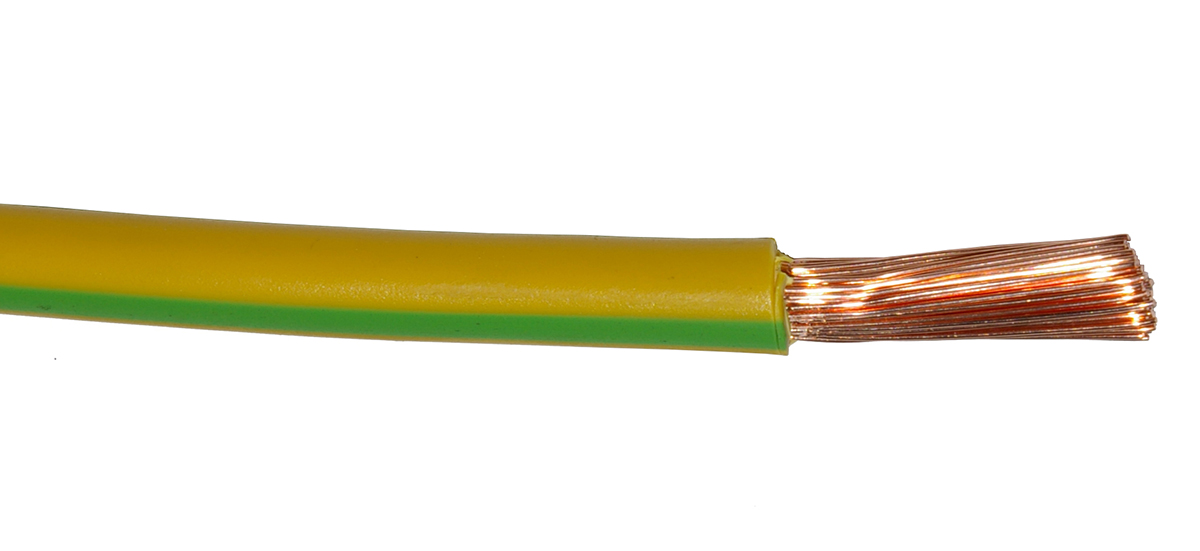

RK (H05V-K, H07V-K)

Used as connectors line and installation line.
StructureConductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:HO5V-K 0.5-1.0 mm²: 300/500 VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:HO5V-K 0.5-1.0 mm²: 2000 VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter

Show item list

Technical properties

Number of cores:
1 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Grey, Red, Black, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
No, No
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Colour:
Black, Green/yellow, Grey, Red, Light blue, Dark blue
Material insulation:
Polyvinyl chloride (PVC)
Designations:
H07V-K (RK 1.5 - 400mm2)
Operating temperature:
-5-70 °C
Core colour:
Blue, Grey, Green/yellow, Red, Black
Conductor surface:
Bare
Packaging:
Ring
Min. permitted bending radius, stationary application/permanent installation:
25.6 mm, 29.2 mm, 36 mm, 40.4 mm, 48.8 mm, 54 mm, 60.8 mm

Show more

  • Total: 38

050385

Availability:
Yes

050383

Availability:
Yes

050381-1

Availability:
Yes

050387

Availability:
Yes

050387-25

Availability:
Yes

050380

Availability:
Yes

050380-25

Availability:
Yes

050390

Availability:
Yes

050390-25

Availability:
Yes

050390-50

Availability:
Yes

050391-2

Availability:
Yes

050391-50

Availability:
Yes

050391-1

Availability:
Yes

050393

Availability:
Yes

050397

Availability:
Yes

050397-25

Availability:
Yes

050400

Availability:
Yes

050400-25

Availability:
Yes

050401-2

Availability:
Yes

050401-1

Availability:
Yes

050403

Availability:
Yes

050407

Availability:
Yes

050407-25

Availability:
Yes

050410

Availability:
Yes

050410-25

Availability:
Yes

050411-2

Availability:
Yes

050413

Availability:
Yes

050417

Availability:
Yes

050417-25

Availability:
Yes

050420

Availability:
Yes

050420-25

Availability:
Yes

050423

Availability:
Yes

050427

Availability:
Yes

050427-25

Availability:
Yes

050430

Availability:
No

050433

Availability:
Yes

050437

Availability:
Yes

050447

Availability:
Yes
  • Total: 38
  • Total: 38
Product Description Availability
RK, 10mm2, GREY COIL, 600V, PVC, 70C
Yes
RK, 10mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 10mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 35mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 70mm2, BLACK COIL, 600V, PVC, 70C
No
RK, 70mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 70mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 95mm2, RED COIL, 600V, PVC, 70C
Yes
  • Total: 38
  • Total: 38
Product Description Availability
RK, 10mm2, GREY COIL, 600V, PVC, 70C
Yes
RK, 10mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 10mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 35mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 70mm2, BLACK COIL, 600V, PVC, 70C
No
RK, 70mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 70mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 95mm2, RED COIL, 600V, PVC, 70C
Yes
  • Total: 38
  • Total: 38
Product Description Availability
RK, 10mm2, GREY COIL, 600V, PVC, 70C
Yes
RK, 10mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 10mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 35mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 70mm2, BLACK COIL, 600V, PVC, 70C
No
RK, 70mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 70mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 95mm2, RED COIL, 600V, PVC, 70C
Yes
  • Total: 38
  • Total: 38
Product Description Availability
RK, 10mm2, GREY COIL, 600V, PVC, 70C
Yes
RK, 10mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 10mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 10mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 16mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 16mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 25mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, DARKBLUE RAL5010/5013 COIL, 600V, PVC, 70C
Yes
RK, 25mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 25mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 35mm2, LIGHTBLUE RAL5024 COIL, 600V, PVC, 70C
Yes
RK, 35mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 35mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, BLACK COIL, 600V, PVC, 70C
Yes
RK, 50mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 50mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 70mm2, BLACK COIL, 600V, PVC, 70C
No
RK, 70mm2, GREEN/YELLOW COIL, 600V, PVC, 70C
Yes
RK, 70mm2, RED COIL, 600V, PVC, 70C
Yes
RK, 95mm2, RED COIL, 600V, PVC, 70C
Yes
  • Total: 38
