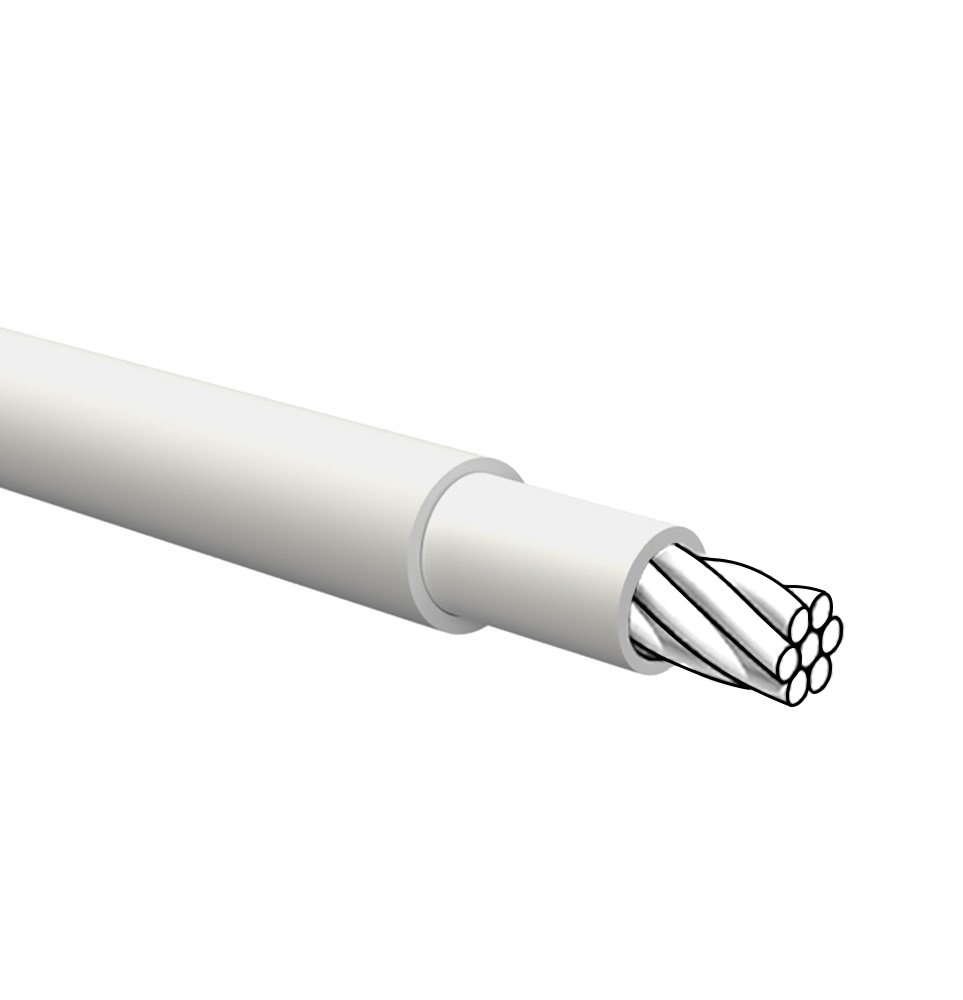

RADOX TENUIS
Halogen-free control cable for protected fixed installation in train applications. The cable has a very small outer diameter and is used in tight spaces, smaller, lighter and more flexible than previous cables for railway application.
Areas of use are control and control cabinets, control panels, signal circuits and internal control cable in other train equipment. Guidelines for selection and installation are described in the standards EN 50355 and EN 50343. Resistant to high mechanical loads, oil and fuel.
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- White
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- White
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-125 °C
- Core colour:
- White
- Conductor surface:
- Tinned
- Packaging:
- Spool HS200
- Min. permitted bending radius, stationary application/permanent installation:
- 5.31 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 1
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX TENUIS-TW, 1.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C | 1 mm² | 2000 . | 1.77 mm | 5.31 mm | m | 600 V |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Approved according to EN 50267-2-1 | Approved according to EN 50267-2-3 | Approved according to EN 50268-2 | Approved according to IEC 60754-1 | Approved according to IEC 60754-2 | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX TENUIS-TW, 1.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX TENUIS-TW, 1.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | White | Copper | No | 125 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | White | Polyolefin (POE) | -40-125 °C | White | Tinned | Yes | Spool HS200 | 5.31 mm |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX TENUIS-TW, 1.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Radox Tenuis Single core | TENUIS-TW | 12561500 |
