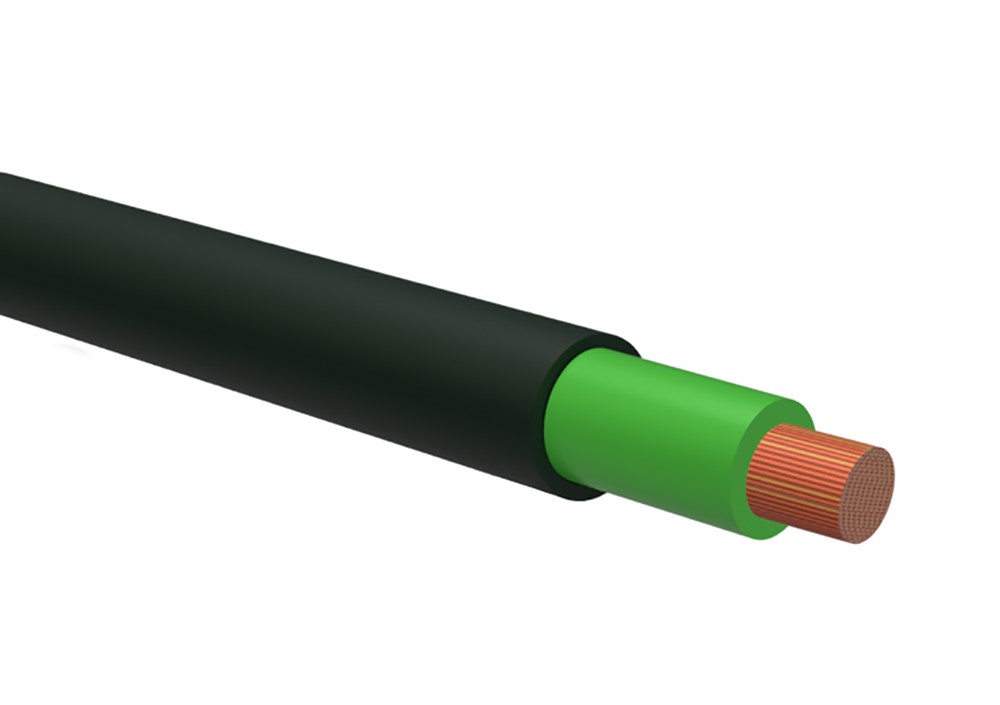

R3IB - Single conductor
Flame retardant thermoplastic cable, suitable for vehicles
use on low voltage applications and systems, even in hot environments, without direct contact of heat sources on the cable. Heat-resistant cable, suitable for applications inside the engine compartment.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Construction:
Conductor: Annealed multi-wire copper class 3
Leader insulation: XHFFR
Coat color: See product data
Technical data:
100V
Temp. range: -40ºC to + 125ºC
Approvals:
ISO 6722 class C
Technical properties
- Single insulated/Double insulated:
- Double insulated
Show more
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| R3IB, 1x1.5mm2 BLACK/GREEN B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V | 3000 . | m |
Yes
|
|
|
| R3IB, 1x2.5mm2 BLACK/RED B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V | 3000 . | m |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| R3IB, 1x1.5mm2 BLACK/GREEN B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V |
|
Yes
|
|
|
| R3IB, 1x2.5mm2 BLACK/RED B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V |
|
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Single insulated/Double insulated | Availability | ||
|---|---|---|---|---|
| R3IB, 1x1.5mm2 BLACK/GREEN B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V | Double insulated |
Yes
|
|
|
| R3IB, 1x2.5mm2 BLACK/RED B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V | Double insulated |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| R3IB, 1x1.5mm2 BLACK/GREEN B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - R3IB, Single conductor, Red copper | R3IB 1X1.5 SVART/GRÖN | 0810000 |
Yes
|
|
|
| R3IB, 1x2.5mm2 BLACK/RED B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - R3IB, Single conductor, Red copper | R3IB, 1X2.5MM2 SVART/RÖD | 0810030 |
No
|
|
|
- Total: 2
