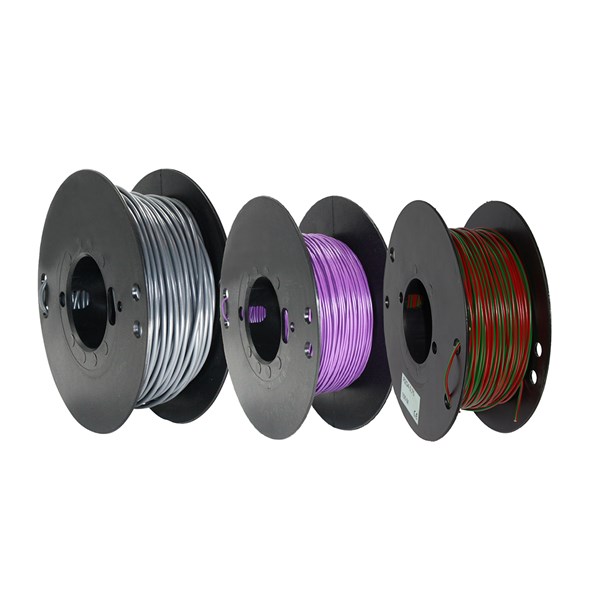

2G4 - 100 m spool 1-color, 10-16 mm²
GeneralThin-walled car cable with PVC insulation and fine wire copper conductors for maximum 100ºC conductor temperature.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Structure:
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Multiple color combinations
Technical data:
Rating voltage: 100V
Temperature range: -40ºC to +100ºC (-40ºF to +212ºF)
Approvals: According to Volvo 7613 R2, 111 / 3
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-100 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 100 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 100 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Red
- Operating temperature:
- -40-100 °C
- Core colour:
- Red, Black
- Conductor surface:
- Bare
- Packaging:
- Reel B4
- Min. permitted bending radius, stationary application/permanent installation:
- 26.5 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
Dimensions
- Total: 3
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 10mm2, BLACK SPOOL B4, 100V, PVC, 100C | 10 mm² | 50 . | 5.3 mm | 26.5 mm | 10 mm | m | 100 V |
Yes
|
|
|
| R2G4, 10mm2, RED SPOOL B4, 100V, PVC, 100C | 10 mm² | 50 . | 5.3 mm | 26.5 mm | 10 mm | m | 100 V |
Yes
|
|
|
| R2G4, 16mm2, BLACK SPOOL B4, 100V, PVC, 100C | 50 . | m |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to Volvo R2 7613, 111/3 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 10mm2, BLACK SPOOL B4, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 10mm2, RED SPOOL B4, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 16mm2, BLACK SPOOL B4, 100V, PVC, 100C |
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 10mm2, BLACK SPOOL B4, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Black | -40-100 °C | Black | Bare | Reel B4 | 26.5 mm |
Yes
|
|
|
| R2G4, 10mm2, RED SPOOL B4, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Red | -40-100 °C | Red | Bare | Reel B4 | 26.5 mm |
Yes
|
|
|
| R2G4, 16mm2, BLACK SPOOL B4, 100V, PVC, 100C |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| R2G4, 10mm2, BLACK SPOOL B4, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050760-1 |
Yes
|
|
|
|
| R2G4, 10mm2, RED SPOOL B4, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050767-1 |
Yes
|
|
|
|
| R2G4, 16mm2, BLACK SPOOL B4, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 16.0MM2, SVART | 0500016 |
No
|
|
|
- Total: 3
