Kopplingskabel för solceller H1Z2Z2-K - Ring

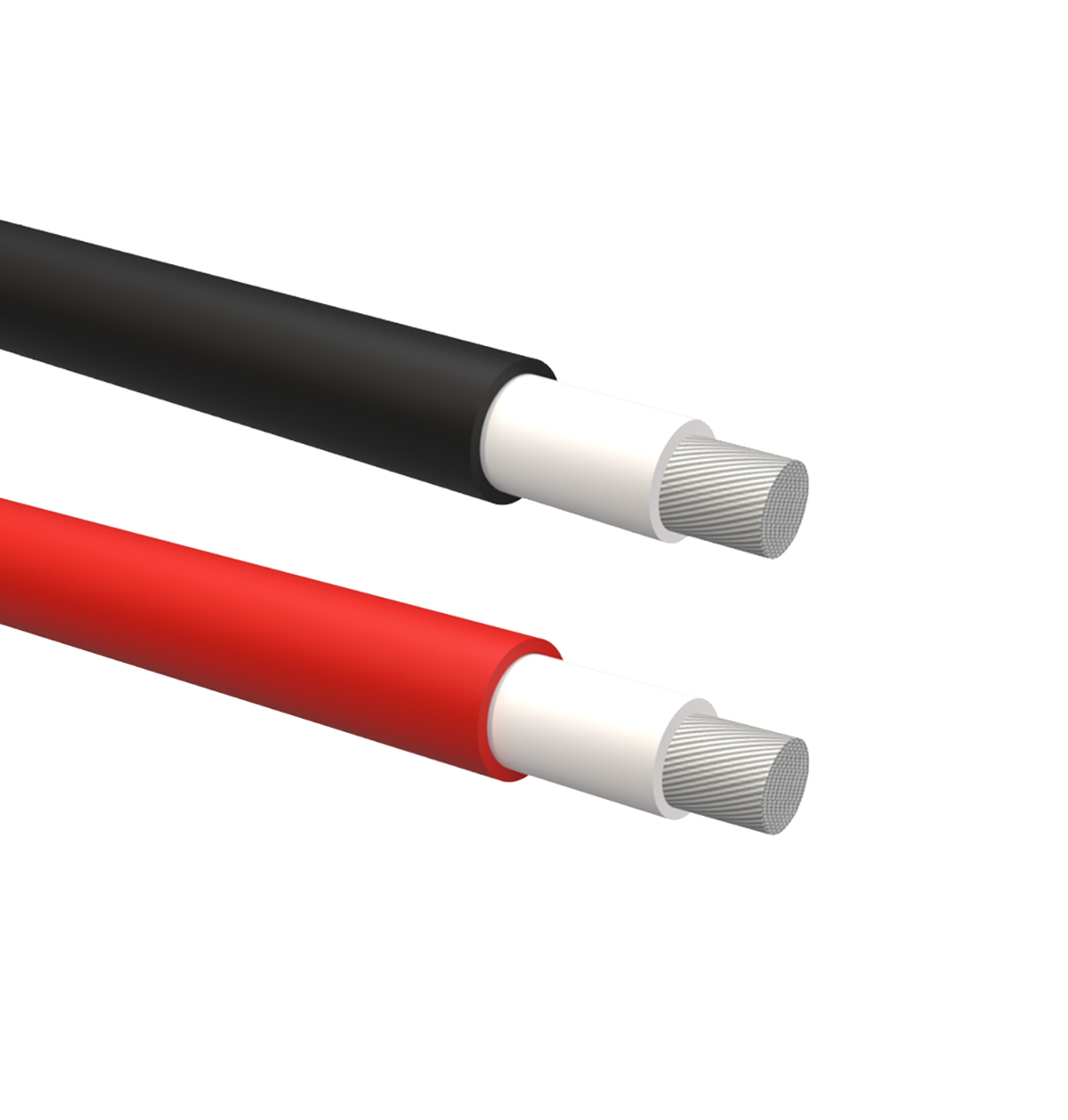

H1Z272-K solar cell connection cable offers an optimal solution when it comes to connecting solar panels to each other or with junction boxes and frequency converters. The cable is very resistant to mechanical impact. Good properties in terms of temperature range, chemical resistance, UV resistance and short-circuit resistance. The cable is halogen free.
Construction:
Conductor: Tinned copper according to IEC 60228 class 5
Conductor insulation:
Inner sheath: POLYOLEFIN
Outer sheath: POLYOLEFIN
Coat color: See product facts
Technical data:
Minimum bending radius:
Variable = D < 8 mm² x cable diameter Ø
Fixed = D > 8 mm3 x cable diameter Ø
Temperature range: -40ºC to + 110ºC
Rated voltage: Uo / U AC: 1000V, DC: 1500V
Test voltage: 6500VAC
Approvals:
EN 50575: 2014
EN 50575 / A1: 2016 CE EN 50618 CPR Eca
Technical properties
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Tillbehör för Installation av solceller
Dimensions
- Total: 4
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| H1Z2Z2-K, 4.0mm2,BLACK SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | 100 . | m |
Yes
|
|
|
| H1Z2Z2-K, 4.0mm2,RED SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | 100 . | m |
Yes
|
|
|
| H1Z2Z2-K, 6.0mm2,BLACK SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | 100 . | m |
Yes
|
|
|
| H1Z2Z2-K, 6.0mm2,RED SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | 100 . | m |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| H1Z2Z2-K, 4.0mm2,BLACK SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Solar | SKV2024ERIK1, SCK2023 | 050350-100SOL |
Yes
|
|
|
| H1Z2Z2-K, 4.0mm2,RED SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Solar | SKV2024ERIK1, SCK2023 | 050357-100SOL |
Yes
|
|
|
| H1Z2Z2-K, 6.0mm2,BLACK SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Solar | SKV2024ERIK1, SCK2023 | 050370-100SOL |
Yes
|
|
|
| H1Z2Z2-K, 6.0mm2,RED SOLAR ENERGY CPR ECA COIL,1000V(AC), POLYMEN, HF, FT, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Solar | SKV2024ERIK1, SCK2023 | 050377-100SOL |
Yes
|
|
|
- Total: 4
