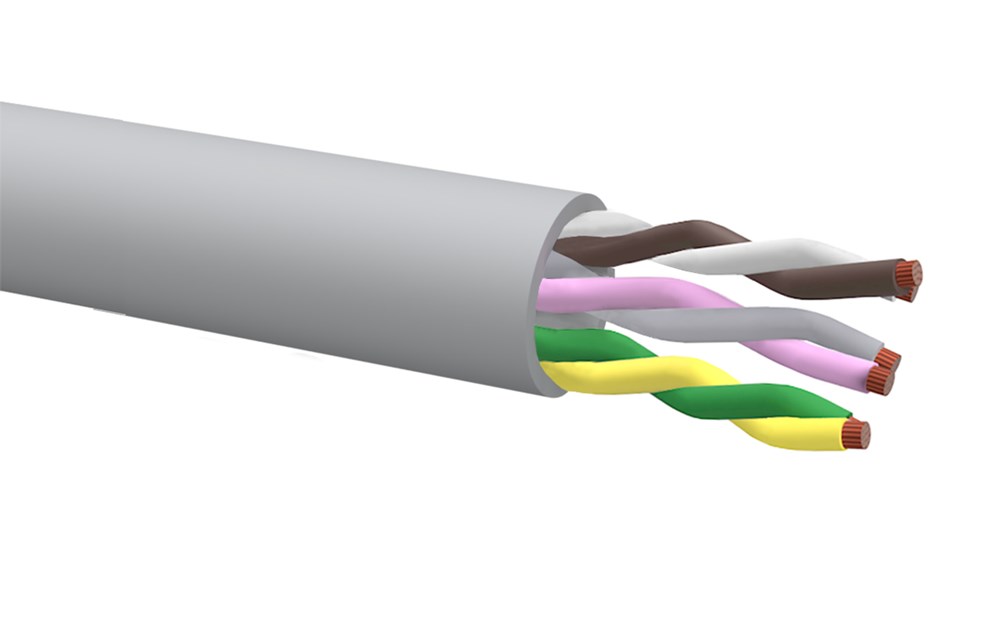

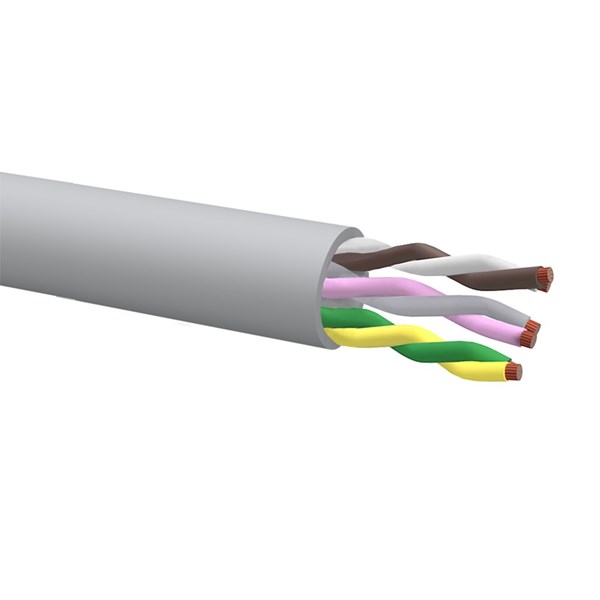

DINFLEX-Y (LiYY) - Trumma 500 m, partvinnade
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Outer Sheath: PVC
Sheath identification: Grey
Technical data:
Rating voltage: 0.14 mm² = 350 V >; 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V >; 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (-22ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Technical properties
- Number of cores:
- 4 ., 6 ., 8 ., 12 ., 20 ., 50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 25.5 mm, 27.5 mm, 28.5 mm, 36 mm, 40 mm, 62 mm, 27 mm, 29 mm, 32 mm, 51.5 mm, 39.5 mm
Show more
Item List
- Total: 12
- Total: 12
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 12
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.5 mm² | 5000 . | 7.9 mm | 39.5 mm | 0.5 mm | m | 500 V |
No
|
|
|
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.14 mm² | 500 . | 5.1 mm | 25.5 mm | 0.14 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.14 mm² | 5000 . | 5.5 mm | 27.5 mm | 0.14 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.14 mm² | 500 . | 5.7 mm | 28.5 mm | 0.14 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.14 mm² | 5000 . | 7.2 mm | 36 mm | 0.14 mm | m | 500 V |
No
|
|
|
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.14 mm² | 500 . | 8 mm | 40 mm | 0.14 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.14 mm² | 5000 . | 12.4 mm | 62 mm | 0.14 mm | m | 500 V |
No
|
|
|
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.25 mm² | 500 . | 5.4 mm | 27 mm | 0.25 mm | m | 500 V |
No
|
|
|
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.25 mm² | 500 . | 5.8 mm | 29 mm | 0.25 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.25 mm² | 500 . | 6.4 mm | 32 mm | 0.25 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.25 mm² | 500 . | 8 mm | 40 mm | 0.25 mm | m | 500 V |
Yes
|
|
|
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 0.25 mm² | 5000 . | 10.3 mm | 51.5 mm | 0.25 mm | m | 500 V |
No
|
|
|
- Total: 12
Similar Options
Approvals
- Total: 12
| Product Description | Approved according to IEC 332-1 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 12
Technical Properties
- Total: 12
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 39.5 mm |
No
|
|
|
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 25.5 mm |
Yes
|
|
|
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27.5 mm |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 28.5 mm |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 36 mm |
No
|
|
|
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 20 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 40 mm |
Yes
|
|
|
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 50 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 62 mm |
No
|
|
|
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27 mm |
No
|
|
|
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 29 mm |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 32 mm |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 40 mm |
Yes
|
|
|
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | 20 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 51.5 mm |
No
|
|
|
- Total: 12
Other information
- Total: 12
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010480-500 |
No
|
|
|
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010430-500 |
Yes
|
|
|
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010431-500 |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010432-500 |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010434-500 |
No
|
|
|
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010437-500 |
Yes
|
|
|
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010446-500 |
No
|
|
|
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010460-500 |
No
|
|
|
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010461-500 |
Yes
|
|
|
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010462-500 |
Yes
|
|
|
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010464-500 |
Yes
|
|
|
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, DRUM | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010468-500 |
No
|
|
|
- Total: 12
