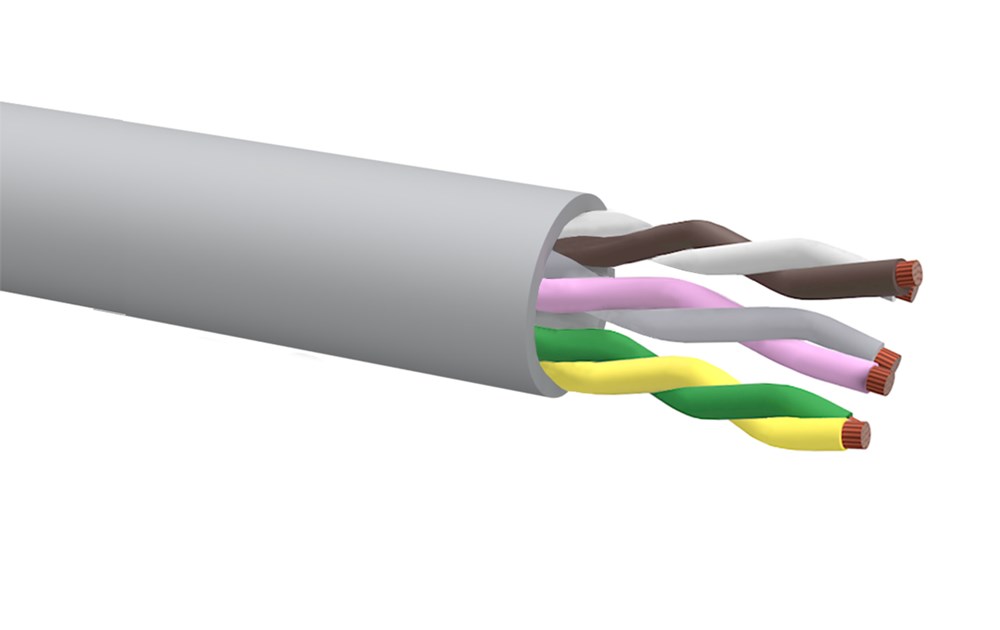

DINFLEX-Y (LiYY) - Bobin 100 m, partvinnade
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Outer Sheath: PVC
Sheath identification: Grey
Technical data:
Rating voltage: 0.14 mm² = 350 V >; 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V >; 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (-22ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Technical properties
- Number of cores:
- 8 ., 16 ., 4 ., 6 ., 20 ., 10 ., 12 ., 24 ., 26 ., 48 ., 50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 28.5 mm, 43.5 mm, 39.5 mm, 25.5 mm, 27.5 mm, 40 mm, 27 mm, 29 mm, 32 mm, 51.5 mm, 36 mm, 41 mm, 42 mm, 60 mm, 62 mm
Show more
Item List
- Total: 17
- Total: 17
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 17
- Total: 17
Similar Options
Approvals
- Total: 17
| Product Description | Approved according to IEC 332-1 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-Y, 8x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DINFLEX-Y, 5x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 12x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 13x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 24x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 17
Technical Properties
- Total: 17
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 28.5 mm |
No
|
|
|
| DINFLEX-Y, 8x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 16 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 43.5 mm |
No
|
|
|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 39.5 mm |
Yes
|
|
|
| DINFLEX-Y, 5x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 10 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 32 mm |
No
|
|
|
|||||
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 36 mm |
No
|
|
|
|||||
| DINFLEX-Y, 12x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 24 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 41 mm |
No
|
|
|
|||||
| DINFLEX-Y, 13x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 26 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 42 mm |
No
|
|
|
|||||
| DINFLEX-Y, 24x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 48 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 60 mm |
Yes
|
|
|
|||||
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 50 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 62 mm |
No
|
|
|
|||||
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 12 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 40 mm |
No
|
|
|
|||||
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 27.5 mm |
No
|
|
|
|||||
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 20 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 40 mm |
No
|
|
|
|||||
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 25.5 mm |
Yes
|
|
|
|||||
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 27 mm |
No
|
|
|
|||||
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 6 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 29 mm |
Yes
|
|
|
|||||
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 32 mm |
No
|
|
|
|||||
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | 20 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 51.5 mm |
No
|
|
|
- Total: 17
Other information
- Total: 17
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| DINFLEX-Y, 4x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010432-100 |
No
|
|
|
|
| DINFLEX-Y, 8x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010466-100 |
No
|
|
|
|
| DINFLEX-Y, 2x2x0.5mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010480-100 |
Yes
|
|
|
|
| DINFLEX-Y, 5x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 5X2X0.14MM2, GRÅ | 010433-100 |
No
|
|
|
| DINFLEX-Y, 6x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 6X2X0.14MM2, GRÅ | 010434-100 |
No
|
|
|
| DINFLEX-Y, 12x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 12X2X0.14MM2, GRÅ | 010438-100 |
No
|
|
|
| DINFLEX-Y, 13x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 13X2X0.14MM2, GRÅ | 010439-100 |
No
|
|
|
| DINFLEX-Y, 24x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 24X2X0.14MM2, GRÅ | 010445-100 |
Yes
|
|
|
| DINFLEX-Y, 25x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 25X2X0.14MM2, GRÅ | 010446-100 |
No
|
|
|
| DINFLEX-Y, 6x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | DINFLEX-Y, 6X2X0.25MM2, GRÅ | 010464-100 |
No
|
|
|
| DINFLEX-Y, 3x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010431-100 |
No
|
|
|
|
| DINFLEX-Y, 10x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010437-100 |
No
|
|
|
|
| DINFLEX-Y, 2x2x0.14mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010430-100 |
Yes
|
|
|
|
| DINFLEX-Y, 2x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010460-100 |
No
|
|
|
|
| DINFLEX-Y, 3x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010461-100 |
Yes
|
|
|
|
| DINFLEX-Y, 4x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010462-100 |
No
|
|
|
|
| DINFLEX-Y, 10x2x0.25mm2, GREY DIN 47100, 500V, PVC, 70C, 100m/C2 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - DINFLEX-Y (LiYY) - Twisted pair | 010468-100 |
No
|
|
|
- Total: 17
