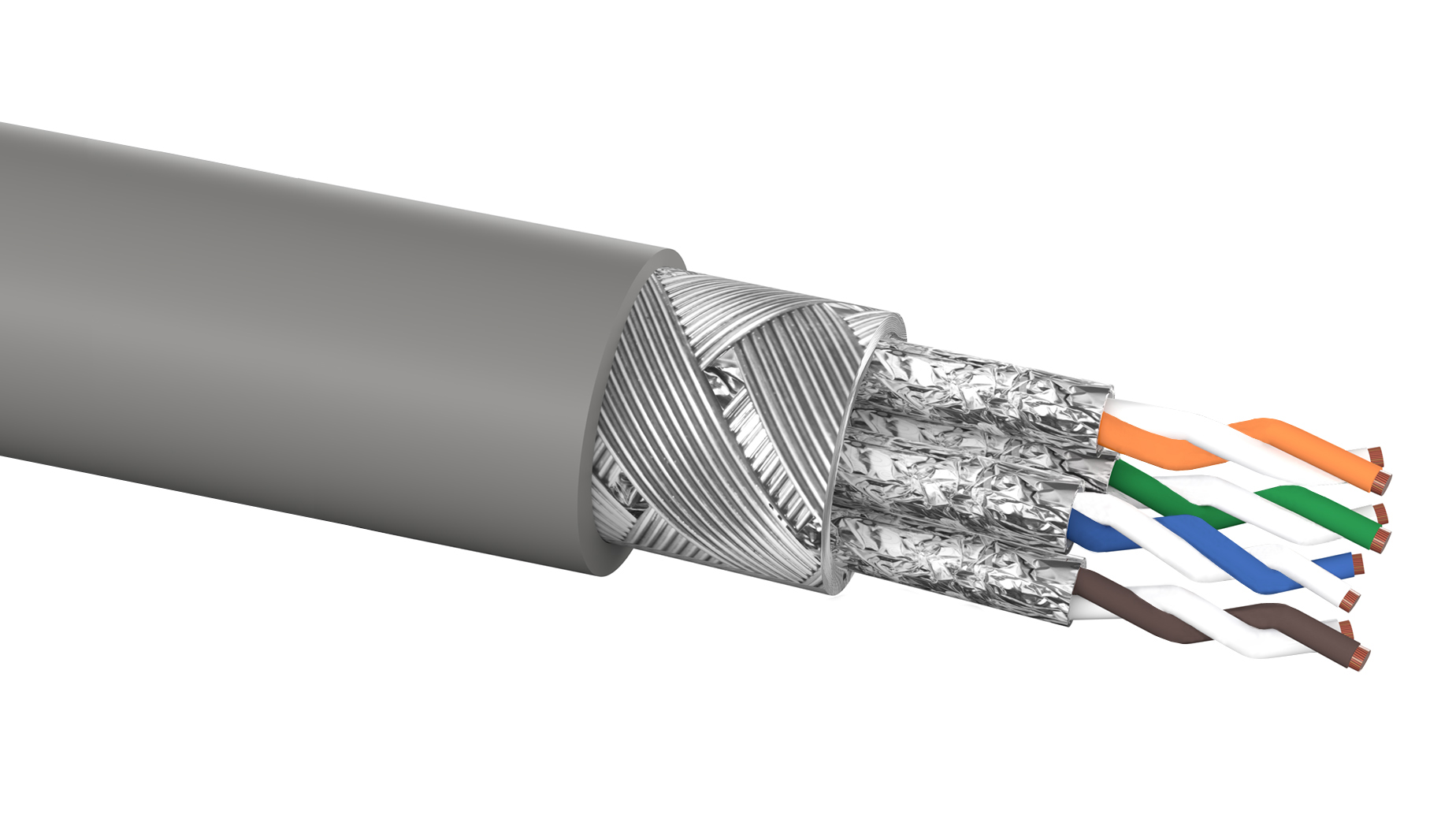

DATAFLEX - Drum 500m
Flexibel elektronikkabel med fintrådig ledaruppbyggnad, som i kombination med PVC-manteln ger en mycket elastisk kabel med liten böjradie. Kabeln är försedd med en skärm av förtent koppartråd, som skyddar mot mekanisk belastning och framförallt avskärmar elektriska störningar såväl inom som utanför kabeln (EMC-direktivet). Den används för signal-, mät-, styr- och ton-frekvensöverföring i elektronik-, data- och signalanläggningar.
Uppbyggnad
Ledare: Blank flertrådig koppar
Ledarisolation: PVC
Ledarfärg: Enligt din 47100
Drain wire: Förtent cu tråd.
Bandering: PETP-folie
Skärm: Förtent kopparfläta
Yttermantel: PVC
Mantelfärg: Grå, RAL 7000
Tekniska data:
Driftspänning: 0.14 mm² = 300 V >0.14 mm² = 300 V
Provspänning: 0.14 mm² = 800 V >0.14 mm² = 1200 V
Temp. område: Fast förläggning min/max: -30ºC till +80ºC
Rörlig förläggning min/max: -5ºC till +80ºC
Isolerings motstånd >20 Mohm.Km min vid 20ºC
Ledar motstånd Max vid 20ºC
Minsta böjradie: 15 x kabelns diameter
Ul godkänd endast för 0.14 mm²
E132956 UR AWM STYLE 2560 60ºC 30V-LOW VOLTAGE COMPUTER CABLE- Vw1-+s+s+s
Oljebeständighet: God
Flambeständighet: IEC 332-1
Technical properties
- Number of cores:
- 4 ., 8 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Protective barrier:
- N/A
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 250 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 27.5 mm, 37 mm
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DATAFLEX-CY, 4x2x0.25mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 0.25 mm² | 500 . | 7.4 mm | 37 mm | 0.25 mm | m |
Yes
|
|
|
|
| DATAFLEX-CY, 2x2x0.14mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C UL2560 | 0.14 mm² | 500 . | 5.5 mm | 27.5 mm | 0.14 mm | m | 250 V |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DATAFLEX-CY, 4x2x0.25mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| DATAFLEX-CY, 2x2x0.14mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C UL2560 | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DATAFLEX-CY, 4x2x0.25mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | 8 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | No | Class 5 = flexible | Several | Bare | 37 mm |
Yes
|
|
|
|||||
| DATAFLEX-CY, 2x2x0.14mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C UL2560 | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | Yes | 70 °C | Yes | N/A | Braiding | N/A | No | 250 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -30-70 °C | Several | Bare | No | 27.5 mm |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| DATAFLEX-CY, 4x2x0.25mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | Cable - DATAFLEX-CY | 010562-DF-500 |
Yes
|
|
|
|
| DATAFLEX-CY, 2x2x0.14mm2, GREY DRUM, DIN 47100, 250V, PVC, 70C UL2560 | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | Cable - DATAFLEX-CY | DATAFLEX-CY, 2X2X0.14MM2, GRÅ | 010530-DF-500 |
Yes
|
|
|
- Total: 2
