Slanghållare i plast
AFX-serien

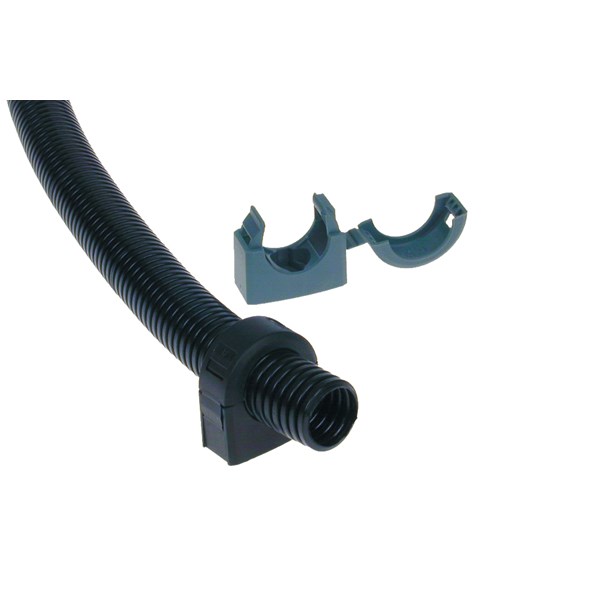

Slanghållare för korrugerad slang, enhålsmontage.
Slangen trycks fast men kan roteras.
Säkerhetslock håller fast slangen.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Halogenfri, svart RAL 8022, UV-beständig,
flamavvisande IEC 613386/EN 50086
Technical properties
- Material quality:
- Polyamide (PA)
- Type of fastening:
- Clamp
- Colour:
- Black
- Surface protection:
- Other
- Material:
- Plastic
- Closed:
- Yes
- Tackable:
- No
- With inlay:
- No
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents

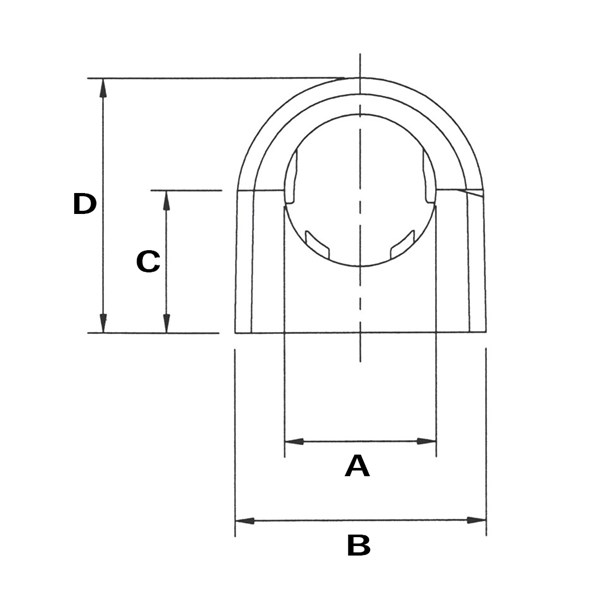

Dimensions
- Total: 7
| Product Description | A | B | C | D | Suitable for pipe diameter | Max. number of tubes | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLANGHÅLLARE SV. MED LOCK, NW10, SLANG YD=13mm | 13 mm | 22.6 mm | 12.9 mm | 23.3 mm | 13 mm | 1 . | 10 . | pcs |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW12, SLANG YD=16mm | 15.8 mm | 26.7 mm | 15.1 mm | 26.9 mm | 16 mm | 1 . | 10 . | pcs |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW17, SLANG YD=21mm | 21 mm | 34.9 mm | 20.6 mm | 37.9 mm | 21 mm | 1 . | 10 . | pcs |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW23, SLANG YD=28mm | 28.5 mm | 43.8 mm | 23.4 mm | 43.7 mm | 26 mm | 1 . | 10 . | pcs |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW29, SLANG YD=34mm | 34 mm | 49.6 mm | 27.5 mm | 52.3 mm | 34 mm | 1 . | 10 . | pcs |
No
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW36, SLANG YD=42mm | 42.5 mm | 64.5 mm | 32.4 mm | 62.5 mm | 42 mm | 1 . | 5 . | pcs |
No
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW48, SLANG YD=54mm | 54.5 mm | 81 mm | 38.5 mm | 77 mm | 54 mm | 1 . | 5 . | pcs |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
- Total: 7
Technical Properties
- Total: 7
| Product Description | Material quality | Type of fastening | Colour | Surface protection | Material | Closed | Tackable | With inlay | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLANGHÅLLARE SV. MED LOCK, NW10, SLANG YD=13mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW12, SLANG YD=16mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW17, SLANG YD=21mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW23, SLANG YD=28mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW29, SLANG YD=34mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
No
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW36, SLANG YD=42mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
No
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW48, SLANG YD=54mm | Polyamide (PA) | Clamp | Black | Other | Plastic | Yes | No | No |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SLANGHÅLLARE SV. MED LOCK, NW10, SLANG YD=13mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB13VT, 7TCA296055R0004, 7TCA296000R0041 | AFX10 |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW12, SLANG YD=16mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB16V2, 7TCA296055R0006 | AFX12 |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW17, SLANG YD=21mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB21V2, 7TCA296050R0567 | AFX17 |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW23, SLANG YD=28mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB28V2, 7TCA296055R0008 | AFX23 |
Yes
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW29, SLANG YD=34mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB34V2, 7TCA296055R0010 | AFX29 |
No
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW36, SLANG YD=42mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB42V2, 7TCA296050R0570 | AFX36 |
No
|
|
|
| SLANGHÅLLARE SV. MED LOCK, NW48, SLANG YD=54mm | EC000368 - Tube clamp |
|
Tube clamp / Pipe Clamp | ACB54V2, 7TCA296050R0573 | AFX48 |
Yes
|
|
|
- Total: 7
