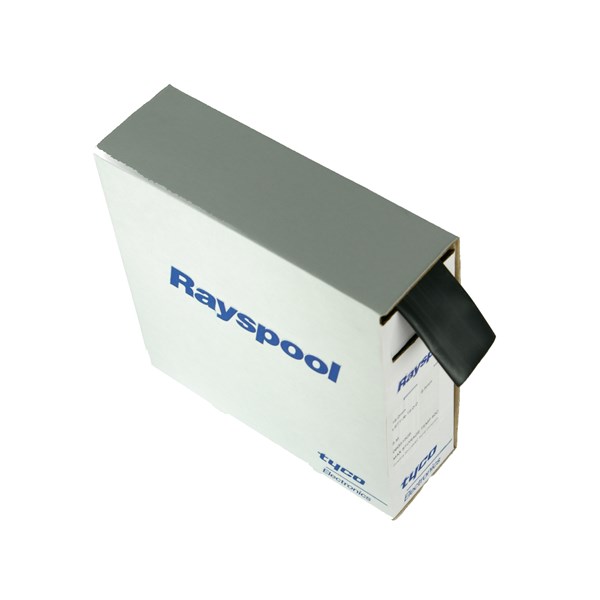

CGAT-R, 3:1, with adhesive, box
CGAT is a flexible thin-walled shrink tubing made of polyolefin with adhesive liner. CGAT is designed for quick and easy installation.
Applications:
Ideal for shelter, protection and moisture sealing of electrical components, branches, and the strengthening of the cable sheathing.
Material: Polyolefin with adhesive liner
Temperature range: -30º C to +80º C
Lowest shrink tempearture: +80º C
Wall thickness: Thin wall with adhesive liner
Shrink ratio: 3:1
Technical properties
- Model:
- Thin-walled
- Operating temperature:
- -30-80 °C
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- 3:1
- With inner glue:
- Yes
- Printable:
- No
- Colour:
- Black
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- Packaging:
- Carton (box)
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Wall thickness after shrinking | MOQ | Unit | Length | Inner diameter before heat-shrink | Inner diameter after heat-shrink | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=18mm BLACK, BOX, L=2.0m, THIN-W | 1.7 mm | 1 . | pck | 2 m | 18 mm | 6 mm |
Yes
|
|
|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=24.0mm BLACK, BOX, L=1.5m, THIN-W | 1.9 mm | 1 . | pck | 1.5 m | 24 mm | 8 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | UL approval | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=18mm BLACK, BOX, L=2.0m, THIN-W |
|
|
Yes
|
|
|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=24.0mm BLACK, BOX, L=1.5m, THIN-W |
|
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Model | Operating temperature | Transparent | Type | Shrink rate | With inner glue | Printable | Colour | Material | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=18mm BLACK, BOX, L=2.0m, THIN-W | Thin-walled | -30-80 °C | No | Heat-shrink | 3:1 | Yes | No | Black | Polyolefin (PO-X) | No | Carton (box) |
Yes
|
|
|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=24.0mm BLACK, BOX, L=1.5m, THIN-W | Thin-walled | -30-80 °C | No | Heat-shrink | 3:1 | Yes | No | Black | Polyolefin (PO-X) | No | Carton (box) |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=18mm BLACK, BOX, L=2.0m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Minibox | 6687596001, E0776558. CGAT-R-18/6-0, TE, RAYCHEM | CGAT-R-18/6-0 |
Yes
|
|
|
| SHRINK TUBE WITH ADHESIVE, 3:1, ID=24.0mm BLACK, BOX, L=1.5m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Minibox | 1973816001, E0776560. CGAT-R-24/8-0, TE, RAYCHEM | CGAT-R-24/8-0 |
Yes
|
|
|
- Total: 2
