360 view
145-064

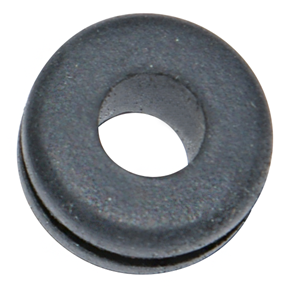

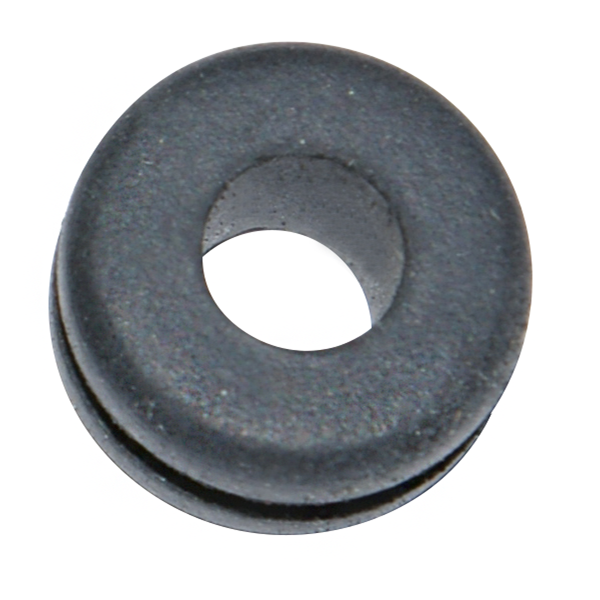

GROMMETS, TPE, BLACK TYPE: DK, YD: 18mm, ID: 12mm
145-064
- Availability:
-
Yes
- Total: 1
Related items
Grommets, gummigenomföring
Cable grommets to protect cables when insertion of cables through the holes for example in an apparatus box. Has good electrical insulation. Suitable for electric applications. Good resistance to oils and ozone.
Material: Polychloroprene rubber
Temperature range: -30 degrees Celsius to +90 degrees Celsius
- Total: 1
Product Properties
| Gastight | No |
|---|---|
| Watertight | No |
| Fire resistant | No |
| Angle model | No |
| With strain relief | No |
| Model | Open |
| Material quality | Thermoplastic |
| Shrink technique | No |
| Insert for cable gland | No |
| Cable entry | Round |
| Number of cables | 1 . |
| Colour | Black |
| Surface protection | Untreated |
| Material | Plastic |
| Halogen free | Yes |
Product video

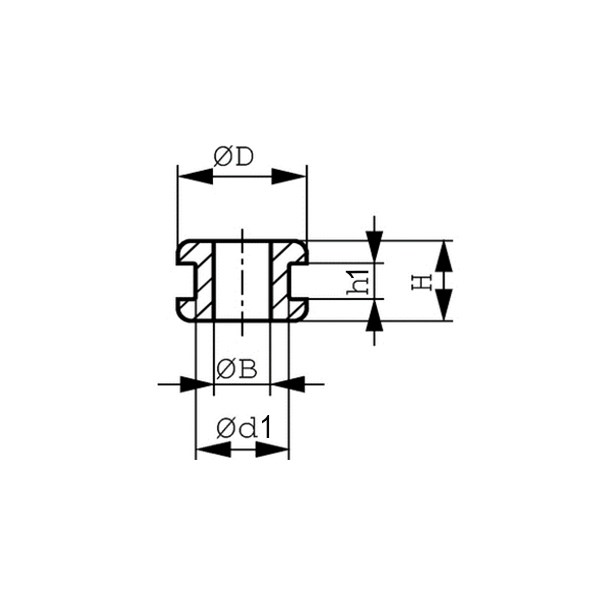

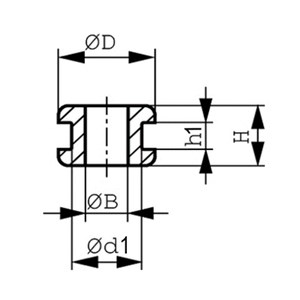

Dimensions
| ØB1 | 12 mm |
|---|---|
| H | 7 mm |
| h1 | 2 mm |
| ØD | 22 mm |
| Ød1 | 18 mm |
| MOQ | 1 . |
| Unit | pcs |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 739348706754 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | 145-064 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Compliance
| REACH | No SVHC (235 Subs. 14 June 2023) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000879 - Cable entry sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Product Group | Other Grommets |
| Search Description | GROMMETS, TPE, SVART |
| Alternative SKU | 145-064 |
Generate Datasheet:
