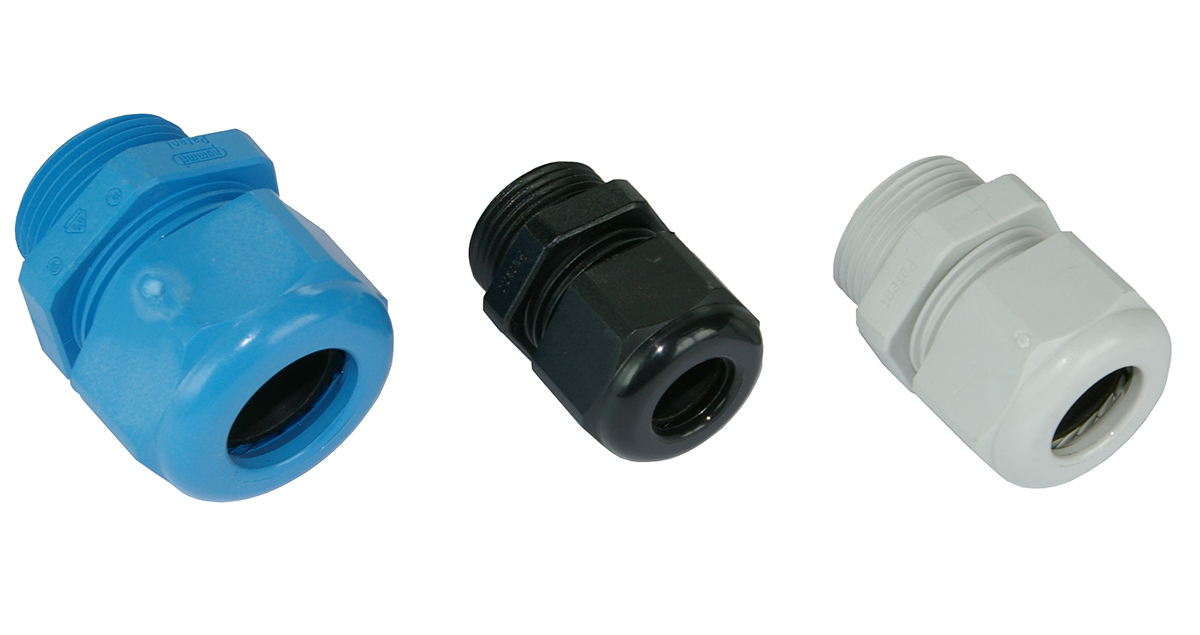

HSK-K industry standard, PA6
Material: PA (Nylon) V0 according to UL 94Seal: Buna-NProtection: IP 68 - 10 bar / IP 69K (NEMA 6 - 150 PSIG) within the specified clamping range only optional O-Ring.Operating temperature: -40 degrees Celsius to +100 degrees Celsius Colours: Grey RAL 7035 Black RAL 9005 Blue RAL 5012
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 ., 5012 ., 9005 .
- Thread type:
- PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey, Blue, Black
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 19 mm, 22 mm, 24 mm, 27 mm, 33 mm, 42 mm, 53 mm
Show more
Item List
- Total: 18
- Total: 18
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 18
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K, GREY PG11, 5-10mm, LONG THREAD | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 15 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG13, 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 15 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG16, 10-14mm, LONG THREAD | 50 . | pcs | 10-14 mm | 16 . | 1.41 mm | 15 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG16, 10-14mm, LONG THREAD | 50 . | pcs | 10-14 mm | 16 . | 1.41 mm | 15 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG21, 13-18mm, LONG THREAD | 50 . | pcs | 13-18 mm | 21 . | 1.588 mm | 15 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG7, 3-6.5mm, LONG THREAD | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 15 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG9, 4-8mm, LONG THREAD | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 15 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, BLUE PG9, 4-8mm, LONG THREAD | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 15 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K BLACK PG11, 5-10mm, LONG THREAD | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 15 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG13, 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 15 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, GREY PG13, 5-9mm, LONG THREAD | 50 . | pcs | 5-9 mm | 13.5 . | 1.41 mm | 15 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG16, 7-12mm, LONG THREAD | 50 . | pcs | 7-12 mm | 16 . | 1.41 mm | 15 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, GREY PG21, 13-18mm, LONG THREAD | 50 . | pcs | 13-18 mm | 21 . | 1.588 mm | 15 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG21, 9-16mm, LONG THREAD | 50 . | pcs | 9-16 mm | 21 . | 1.588 mm | 15 mm | 33 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, GREY PG29, 18-25mm, LONG THREAD | 25 . | pcs | 18-25 mm | 29 . | 1.588 mm | 15 mm | 42 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK PG29, 18-25mm, LONG THREAD | 25 . | pcs | 18-25 mm | 29 . | 1.588 mm | 15 mm | 42 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG36, 22-32mm, LONG THREAD | 10 . | pcs | 22-32 mm | 36 . | 1.588 mm | 18 mm | 53 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG36, 22-32mm, LONG THREAD | 10 . | pcs | 22-32 mm | 36 . | 1.588 mm | 18 mm | 53 mm | Other |
Yes
|
|
|
- Total: 18
Similar Options
Approvals
- Total: 18
- Total: 18
Technical Properties
- Total: 18
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K, GREY PG11, 5-10mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG13, 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG16, 10-14mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG16, 10-14mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG21, 13-18mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG7, 3-6.5mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG9, 4-8mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLUE PG9, 4-8mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K BLACK PG11, 5-10mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG13, 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY PG13, 5-9mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG16, 7-12mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY PG21, 13-18mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG21, 9-16mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY PG29, 18-25mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK PG29, 18-25mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG36, 22-32mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK PG36, 22-32mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
- Total: 18
Other information
- Total: 18
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K, GREY PG11, 5-10mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1100.60 |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK PG13, 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | FÖRSKRUVNING HSK-K, SVART | 1.209.1301.60 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG16, 10-14mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1600.60 |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK PG16, 10-14mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1601.60 |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK PG21, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2101.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG7, 3-6.5mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.0700.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG9, 4-8mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.0900.60 |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLUE PG9, 4-8mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.0902.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K BLACK PG11, 5-10mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | FÖRSKRUVNING HSK-K SVART | 1.209.1101.60 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY PG13, 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1300.60 |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG13, 5-9mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1300.61 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG16, 7-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1600.61 |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG21, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2100.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG21, 9-16mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2100.61 |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG29, 18-25mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2900.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK PG29, 18-25mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2901.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY PG36, 22-32mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3600.60 |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK PG36, 22-32mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3601.60 |
Yes
|
|
|
- Total: 18
