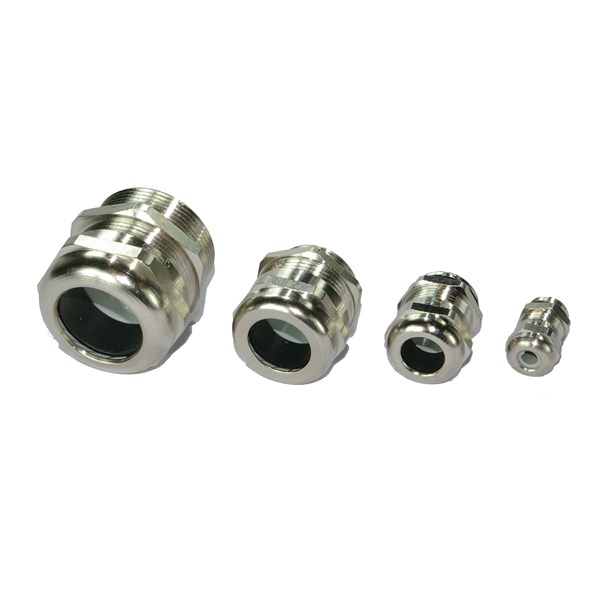

HSK-M, industry standard, metal
Standard liquid tight strain relief fittings made of nickel plated brass.Protection: IP 68 - 10 bar / IP 69K(NEMA 6 - 150 PSIG) within the specified clamping range only with optional O-Ring.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- PG, Metric, NPT
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14 mm, 17 mm, 20 mm, 24 mm, 22 mm, 19 mm, 30 mm, 40 mm, 50 mm, 57 mm, 64 mm, 68 mm
Show more
Item List
- Total: 56
- Total: 56
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 56
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 5 mm | 14 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M M12, 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 5 mm | 14 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 6 mm | 19 mm | 17 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M M16, 2-6mm | 50 . | pcs | 2-6 mm | 16 . | 1.5 mm | 6 mm | 19 mm | 17 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 6 mm | 20 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 6 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 6 mm | 22 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 6 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M20, 7-12mm | 50 . | pcs | 7-12 mm | 20 . | 1.5 mm | 6 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M25, 13-18mm | 25 . | pcs | 13-18 mm | 25 . | 1.5 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M25, 9-16mm | 25 . | pcs | 9-16 mm | 25 . | 1.5 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 8 mm | 40 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 8 mm | 40 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 8 mm | 50 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M40, 20-26mm | 10 . | pcs | 20-26 mm | 40 . | 1.5 mm | 8 mm | 50 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M50, 32-38mm | 5 . | pcs | 32-38 mm | 50 . | 1.5 mm | 9 mm | 57 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M50, 25-31mm | 5 . | pcs | 25-31 mm | 50 . | 1.5 mm | 9 mm | 57 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M63, 37-44mm | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 10 mm | 68 mm | 64 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M M63, 29-35mm | 5 . | pcs | 29-35 mm | 63 . | 1.5 mm | 10 mm | 68 mm | 64 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M M12, 3-6.5mm, LONG THREAD | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 10 mm | 14 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M16, 4-8mm, LONG THREAD | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 10 mm | 19 mm | 17 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-M M20, 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 10 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M25, 13-18mm, LONG THREAD | 25 . | pcs | 13-18 mm | 25 . | 1.5 mm | 12 mm | 30 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M32, 18-25mm, LONG THREAD | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 12 mm | 40 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG7, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 5 mm | 14 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG7, 2-5mm | 50 . | pcs | 2-5 mm | 7 . | 1.27 mm | 5 mm | 14 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG9, 4-8mm | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 6 mm | 17 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG9, 2-6mm | 50 . | pcs | 2-6 mm | 9 . | 1.41 mm | 6 mm | 17 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG11, 5-10mm | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 6 mm | 20 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG11, 3-7mm | 50 . | pcs | 3-7 mm | 11 . | 1.41 mm | 6 mm | 20 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG13.5, 6-12mm | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 6.5 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG13, 5-9mm | 50 . | pcs | 5-9 mm | 13.5 . | 1.41 mm | 6.5 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG16, 10-14mm | 50 . | pcs | 10-14 mm | 16 . | 1.41 mm | 6.5 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG16, 7-12mm | 50 . | pcs | 7-12 mm | 16 . | 1.41 mm | 6.5 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG21, 13-18mm | 25 . | pcs | 13-18 mm | 21 . | 1.588 mm | 7 mm | 30 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG21, 9-16mm | 25 . | pcs | 9-16 mm | 21 . | 1.588 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG29, 18-25mm | 25 . | pcs | 18-25 mm | 29 . | 1.588 mm | 8 mm | 40 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG29, 13-20mm | 25 . | pcs | 13-20 mm | 29 . | 1.588 mm | 8 mm | 40 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG36, 22-32mm | 10 . | pcs | 22-32 mm | 36 . | 1.588 mm | 8 mm | 50 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG36, 20-26mm | 10 . | pcs | 20-26 mm | 36 . | 1.588 mm | 8 mm | 50 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG42, 32-38mm | 5 . | pcs | 32-38 mm | 42 . | 1.588 mm | 9 mm | 57 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG42, 25-31mm | 5 . | pcs | 25-31 mm | 42 . | 1.588 mm | 9 mm | 57 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG48, 37-44mm | 5 . | pcs | 37-44 mm | 48 . | 1.588 mm | 10 mm | 64 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG48, 29-35mm | 5 . | pcs | 29-35 mm | 48 . | 1.588 mm | 10 mm | 64 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG7, 3-6.5mm, LONG THREAD | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 10 mm | 14 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG9, 4-8mm, LONG THREAD | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 10 mm | 17 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG11, 5-10mm, LONG THREAD | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 10 mm | 20 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG13, 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 10 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG16, 10-14mm, LONG THREAD | 50 . | pcs | 10-14 mm | 16 . | 1.41 mm | 10 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M PG16, 7-12mm, LONG THREAD | 50 . | pcs | 7-12 mm | 16 . | 1.41 mm | 10 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG21, 13-18mm, LONG THREAD | 25 . | pcs | 13-18 mm | 21 . | 1.588 mm | 12 mm | 30 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG21, 9-16mm, LONG THREAD | 25 . | pcs | 9-16 mm | 21 . | 1.588 mm | 12 mm | 30 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG29, 18-25mm, LONG THREAD | 25 . | pcs | 18-25 mm | 29 . | 1.588 mm | 12 mm | 40 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-M NPT1/2", 6-12mm | 50 . | pcs | 6-12 mm | 0 N/A | 1.814 mm | 13 mm | 24 mm | 22 mm | 1/2 inch |
Yes
|
|
|
| CABLE GLAND, HSK-M NPT1/2", 5-9mm | 50 . | pcs | 5-9 mm | 0 N/A | 1.814 mm | 13 mm | 24 mm | 22 mm | 1/2 inch |
Yes
|
|
|
| CABLE GLAND, HSK-M NPT3/4", 13-18mm | 25 . | pcs | 13-18 mm | 0 N/A | 1.814 mm | 13 mm | 30 mm | 3/4 inch |
Yes
|
|
|
- Total: 56
Similar Options
Approvals
- Total: 56
- Total: 56
Technical Properties
- Total: 56
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M M12, 3-6.5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
No
|
|
|
| CABLE GLAND, HSK-M M12, 2-5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M16, 4-8mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M16, 2-6mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M16, 5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M20, 6-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M20, 5-9mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-M M20, 10-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M20, 7-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M25, 13-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M25, 9-16mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M32, 18-25mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M32, 13-20mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M40, 22-32mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 50 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M40, 20-26mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 50 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M50, 32-38mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 57 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M50, 25-31mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 57 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M63, 37-44mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 68 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M63, 29-35mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 68 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M12, 3-6.5mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M16, 4-8mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-M M20, 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M25, 13-18mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M M32, 18-25mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG7, 3-6.5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG7, 2-5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG9, 4-8mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 17 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG9, 2-6mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 17 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG11, 5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG11, 3-7mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG13.5, 6-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG13, 5-9mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG16, 10-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG16, 7-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG21, 13-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG21, 9-16mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG29, 18-25mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG29, 13-20mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG36, 22-32mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 50 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG36, 20-26mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 50 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG42, 32-38mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 57 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG42, 25-31mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 57 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG48, 37-44mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 64 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG48, 29-35mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 64 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG7, 3-6.5mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG9, 4-8mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 17 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG11, 5-10mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG13, 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG16, 10-14mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-M PG16, 7-12mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG21, 13-18mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG21, 9-16mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M PG29, 18-25mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
No
|
|
|
| CABLE GLAND, HSK-M NPT1/2", 6-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | NPT | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M NPT1/2", 5-9mm | No | IP68 | Yes | Straight | Brass | 0 N/A | NPT | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M NPT3/4", 13-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | NPT | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
- Total: 56
Other information
- Total: 56
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1200.50 |
No
|
|
|
|
| CABLE GLAND, HSK-M M12, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1200.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M16, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | ENR2023V | 1.609.1611.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2000.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2000.51 |
No
|
|
|
|
| CABLE GLAND, HSK-M M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | ENR2023V | 1.609.2016.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M M20, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2016.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2500.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2500.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.3200.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.3200.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.4000.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M40, 20-26mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.4000.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M50, 32-38mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.5000.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M50, 25-31mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.5000.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M63, 37-44mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.6300.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M63, 29-35mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.6300.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M12, 3-6.5mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1200.30 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M16, 4-8mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.30 |
No
|
|
|
|
| CABLE GLAND, HSK-M M20, 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2000.30 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M25, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2500.30 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M M32, 18-25mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.3200.30 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG7, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.0700.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG7, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.0700.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG9, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.0900.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG9, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.0900.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG11, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1100.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG11, 3-7mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1100.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG13.5, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1300.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG13, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1300.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG16, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG16, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2100.01 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG21, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2100.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG29, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2900.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG29, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2900.15 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG36, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.3600.01 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG36, 20-26mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.3600.15 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG42, 32-38mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.4200.01 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG42, 25-31mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.4200.15 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG48, 37-44mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.4800.01 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG48, 29-35mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.4800.15 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG7, 3-6.5mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.0700.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG9, 4-8mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.0900.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG11, 5-10mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1100.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG13, 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1300.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG16, 10-14mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.60 |
No
|
|
|
|
| CABLE GLAND, HSK-M PG16, 7-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1600.61 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG21, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2100.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG21, 9-16mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2100.61 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M PG29, 18-25mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.2900.60 |
No
|
|
|
|
| CABLE GLAND, HSK-M NPT1/2", 6-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1200.70 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M NPT1/2", 5-9mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.1200.71 |
Yes
|
|
|
|
| CABLE GLAND, HSK-M NPT3/4", 13-18mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.609.3400.70 |
Yes
|
|
|
- Total: 56
Back to top
Do you need help finding the right product or other advice contact us.
