360 view
1.633.1200.51

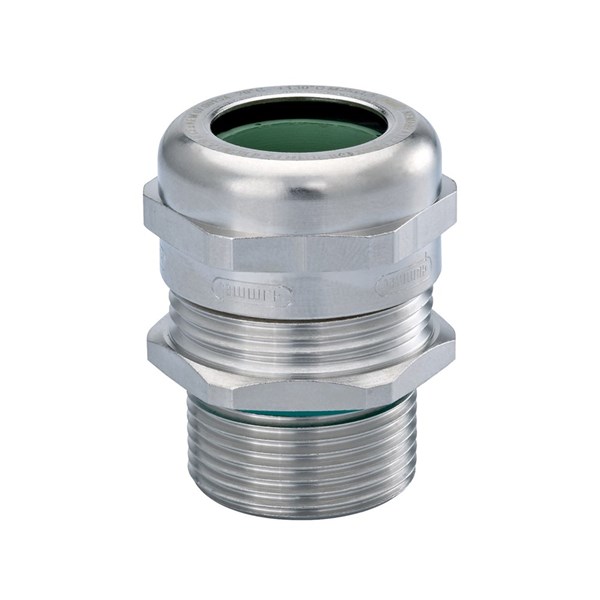

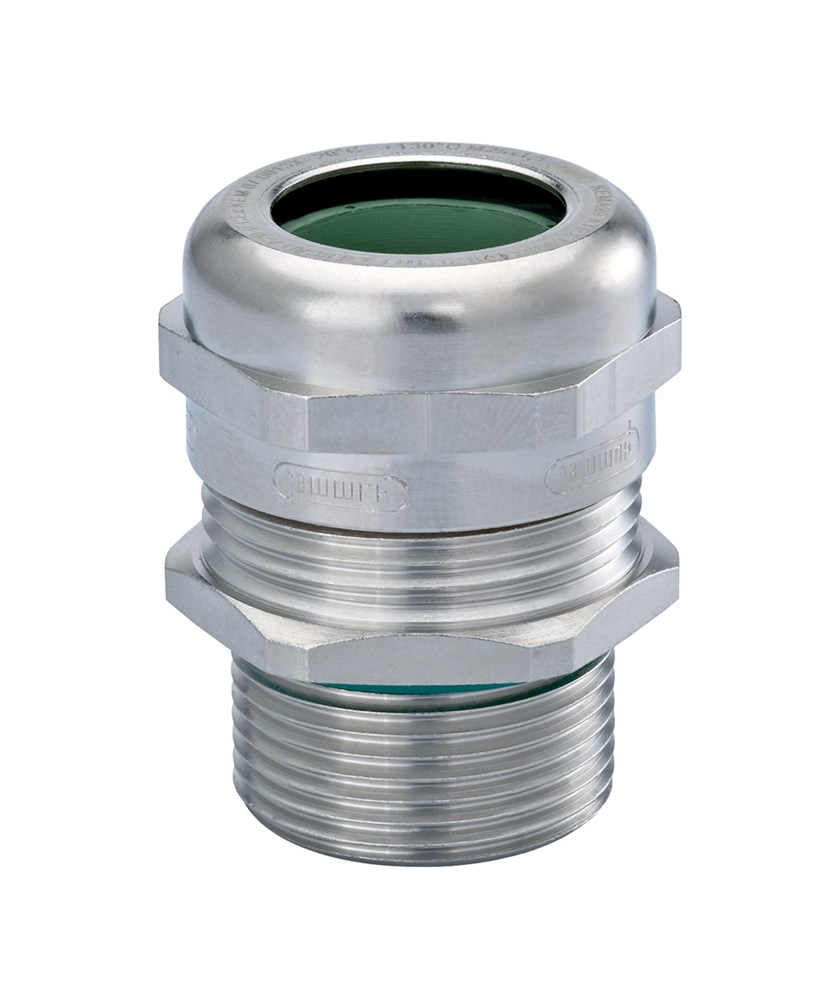

CABLE GLAND, HSK-INOX-PVDF-EX-D 1.4404 M12, 2-5mm
1.633.1200.51
- Availability:
-
No
Product Properties
| Pressure-compensating | No |
|---|---|
| Degree of protection (IP) | IP68 |
| With strain relief | Yes |
| Model | Straight |
| Material quality | Brass |
| RAL-number | 0 N/A |
| Thread type | Metric |
| Glass-fibre reinforced | No |
| Shock resistant | Yes |
| Bend radius protection/trumpet flare | No |
| With locknut | No |
| Snapping in opening | No |
| Multi seal area | No |
| Flat cable coupling | No |
| Explosion-tested version | Yes |
| For armoured cable | No |
| EMC-version | No |
| Screened | No |
| Type of sealing | Sealing ring |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 20, 21, 22 |
| Colour | Brass |
| Surface protection | Nickel-plated |
| Operating temperature | -20-130 °C |
| Material | Metal |
| Halogen free | Yes |
| Wrench width | 14 mm |
Dimensions
| MOQ | 25 . |
|---|---|
| Unit | pcs |
| Suitable for cable diameter | 2-5 mm |
| Nominal thread size metric/PG | 12 . |
| Pitch thread | 1.5 mm |
| Thread length | 16 mm |
| Wrench width | 14 mm |
| Nominal thread size inch/gas pipe thread | Other |
Logistics
| Barcode | 403387843441 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 25 . |
| Stock code | 1.633.1200.51 |
| Taric code | 73269098 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP68 |
|---|---|
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC000441 - Cable gland |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Hummel |
| Product Group | Ex |
| Search Description | FÖRSKRUVNING, HSK-INOX-PVDF-EX-D 1.4404 |
| Alternative SKU | 1.633.1200.51 |
Compliance
| CA Proposition 65 | Supplier General compliance statement |
|---|---|
| Conflict Minerals | See link to general statement from manufacturer/supplier |
| Extended Minerals | Supplier General compliance statement |
| General compliance statement from manufacturer | https://www.nelco.se/Image/GetDocument/1185 |
| PFAS | Supplier General compliance statement |
| POPs | Supplier General compliance statement |
| REACH | See link to general statement from manufacturer/supplier |
| RoHS | See link to general statement from manufacturer/supplier |
| SCIP | Supplier General compliance statement |
| US TSCA | See link to general statement from manufacturer/supplier |
