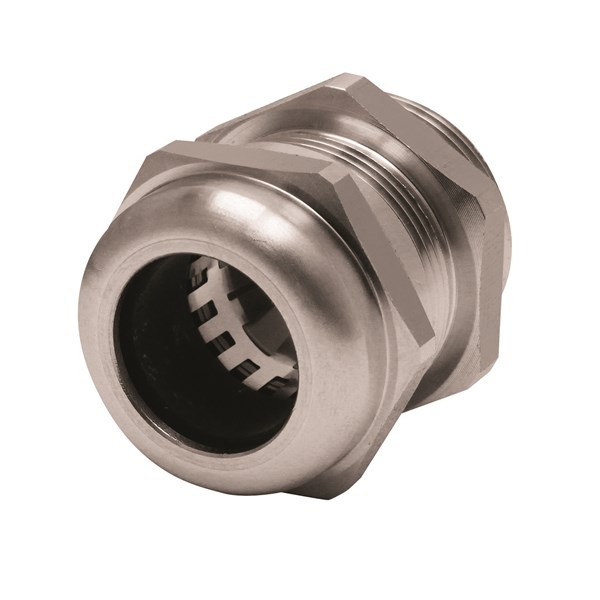

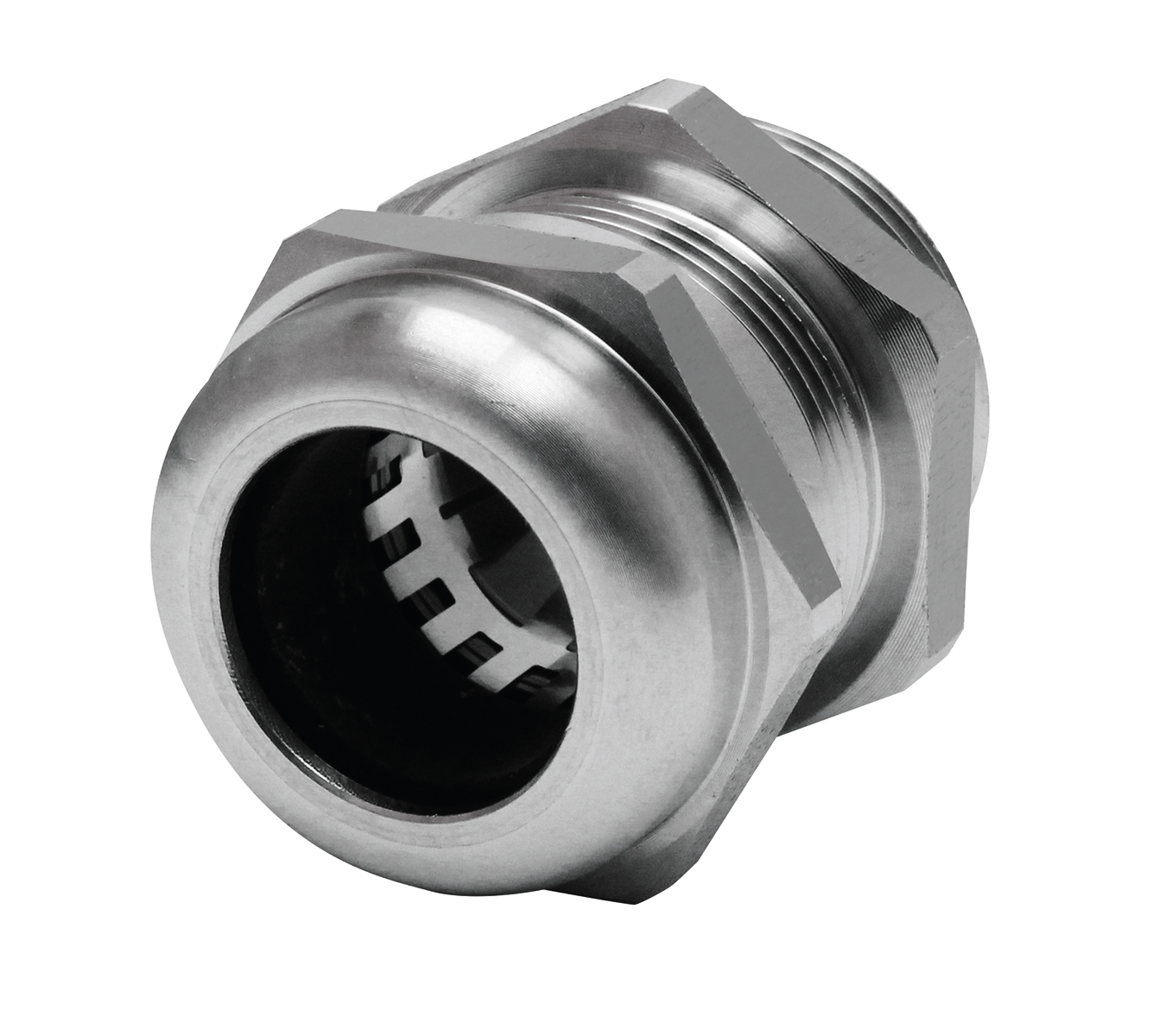

MECGE EMC PRO, Cable gland
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Separable screw gland:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Other
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 17 mm, 22 mm, 27 mm, 34 mm, 42 mm, 55 mm, 65 mm
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents

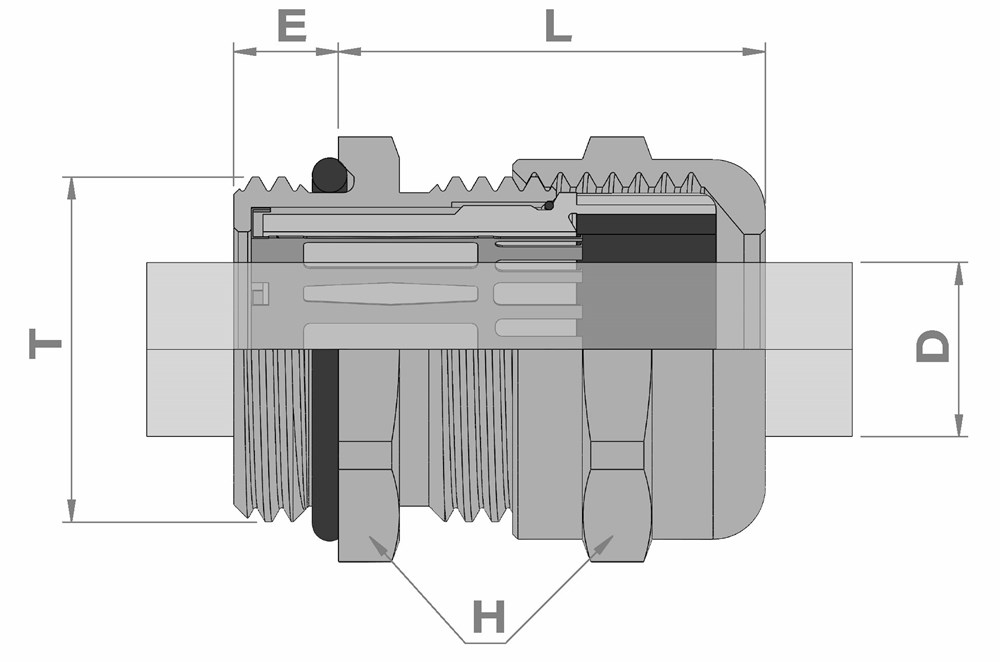

Dimensions
- Total: 7
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| METAL CABLE GLAND ME EMC CAGE M16, 4.0-9.5mm | 50 . | pcs | 4-9.5 mm | 16 . | 1.5 mm | 5 mm | 17 mm | 17 mm | Other |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M20, 7.0-13.0mm | 50 . | pcs | 7-13 mm | 20 . | 1.5 mm | 6 mm | 22 mm | 22 mm | Other |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M25, 8.0-16.0mm | 25 . | pcs | 8-16 mm | 25 . | 1.5 mm | 7 mm | 27 mm | 27 mm | Other |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M32, 11.0-21.0mm | 20 . | pcs | 11-21 mm | 32 . | 1.5 mm | 8 mm | 34 mm | 34 mm | Other |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M40, 15.0-27.0mm | 10 . | pcs | 15-27 mm | 40 . | 1.5 mm | 8 mm | 42 mm | 42 mm | Other |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M50, 22.0-35.0mm | 5 . | pcs | 22-35 mm | 50 . | 1.5 mm | 9 mm | 55 mm | 55 mm | Other |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M63, 35.0-48.0mm | 5 . | pcs | 35-48 mm | 63 . | 1.5 mm | 10 mm | 65 mm | 65 mm | Other |
No
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Degree of protection (IP) | UL approval | Approved according to VDE | Availability | ||
|---|---|---|---|---|---|---|
| METAL CABLE GLAND ME EMC CAGE M16, 4.0-9.5mm | IP68 |
|
|
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M20, 7.0-13.0mm | IP68 |
|
|
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M25, 8.0-16.0mm | IP68 |
|
|
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M32, 11.0-21.0mm | IP68 |
|
|
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M40, 15.0-27.0mm | IP68 |
|
|
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M50, 22.0-35.0mm | IP68 |
|
|
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M63, 35.0-48.0mm | IP68 |
|
|
No
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Separable screw gland | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| METAL CABLE GLAND ME EMC CAGE M16, 4.0-9.5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 17 mm |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M20, 7.0-13.0mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M25, 8.0-16.0mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 27 mm |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M32, 11.0-21.0mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 34 mm |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M40, 15.0-27.0mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 42 mm |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M50, 22.0-35.0mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 55 mm |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M63, 35.0-48.0mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 65 mm |
No
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| METAL CABLE GLAND ME EMC CAGE M16, 4.0-9.5mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M16-N-NPB |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M20, 7.0-13.0mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M20-N-NPB |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M25, 8.0-16.0mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M25-N-NPB |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M32, 11.0-21.0mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M32-N-NPB |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M40, 15.0-27.0mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M40-N-NPB |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M50, 22.0-35.0mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M50-N-NPB |
No
|
|
|
| METAL CABLE GLAND ME EMC CAGE M63, 35.0-48.0mm | EC000441 - Cable gland | 9.0 |
|
EMC | MECGE-M63-N-NPB |
No
|
|
|
- Total: 7
