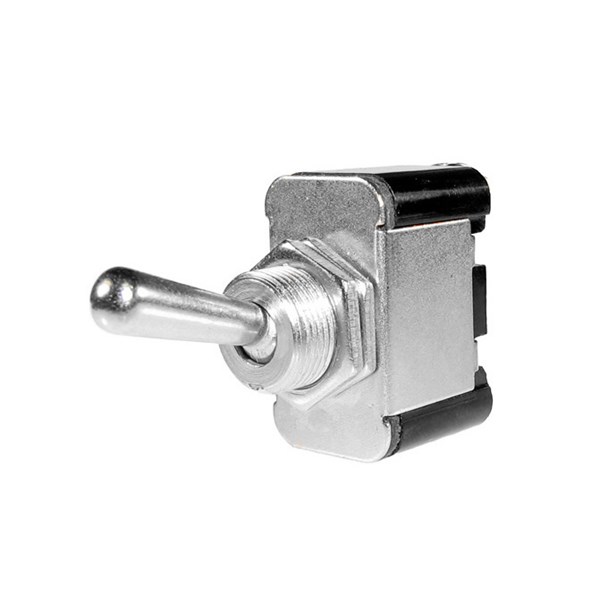

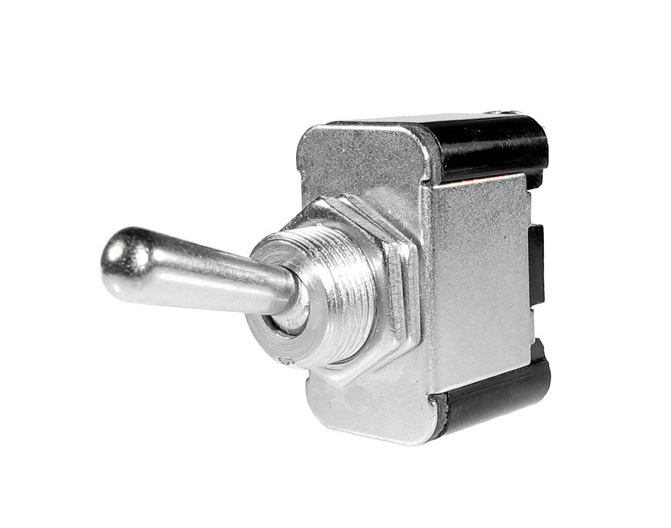

Toggle switch - 1-pol, Flash/Off, heavy duty, Spring-return
1-Polig återfjädrande Flash/Off Heavy Duty vippströmställare i metall. Silver kontakter.
Brytförmåga: 25 A @ 12 V DC eller 12 A @ 24 V DC
Skruvade anslutningar: 2 st
Passar i hål: 12.5 mm
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
Technical properties
- Housing colour:
- Chrome
- Nominal voltage:
- 12-24 V
- Connection type:
- Screwed terminal
- Surface finishing:
- Glossy
- Imprint/indication:
- None
- Method of operation:
- Toggle
- Illumination:
- None
- Model:
- Off switch
- Nominal current:
- 12-25 A
- Transparent:
- No
- Type of fastening:
- Fastening ring/-nut
- Number of control elements:
- 1 .
- Number of poles:
- 1-pole
- Colour control elements:
- Chrome
- Material:
- Metal
- Product Group:
- Strömställare
- Type of product:
- Vippströmställare
- Built-in depth:
- 24 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

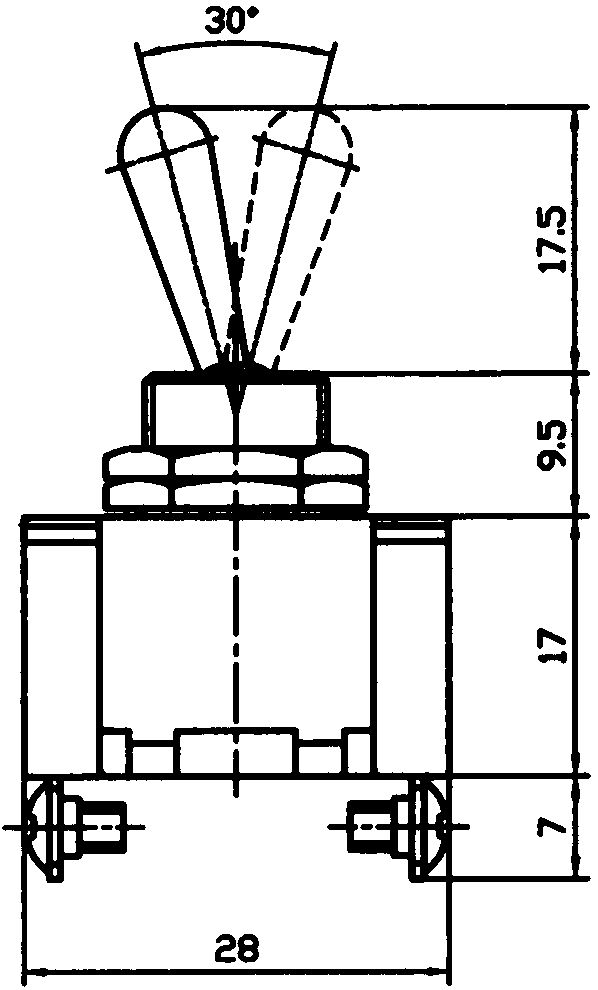

Dimensions
- Total: 2
| Product Description | Built-in depth | Hole diameter built-in | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC | 24 mm | 12.5 mm | 1 . | pck | 12-24 V |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC | 10 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Housing colour | Nominal voltage | Connection type | Surface finishing | Imprint/indication | Method of operation | Illumination | Model | Nominal current | Transparent | Type of fastening | Number of control elements | Number of poles | Colour control elements | Material | Product Group | Type of product | Built-in depth | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC | Chrome | 12-24 V | Screwed terminal | Glossy | None | Toggle | None | Off switch | 12-25 A | No | Fastening ring/-nut | 1 . | 1-pole | Chrome | Metal | Strömställare | Vippströmställare | 24 mm |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC | Strömställare | Vippströmställare |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC | EC000443 - Device built-in switch and -push button | 9.0 |
|
Toggle switches | VIPPSTRÖMSTÄLLARE, 1-POL, FLASH/OFF | K890-PP1 |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, FLASH/OFF 25A@12VDC, 12A@24VDC | EC000443 - Device built-in switch and -push button | 9.0 |
|
Toggle switches | VIPPSTRÖMSTÄLLARE, 1-POL, FLASH/OFF | K890 |
Yes
|
|
|
- Total: 2
