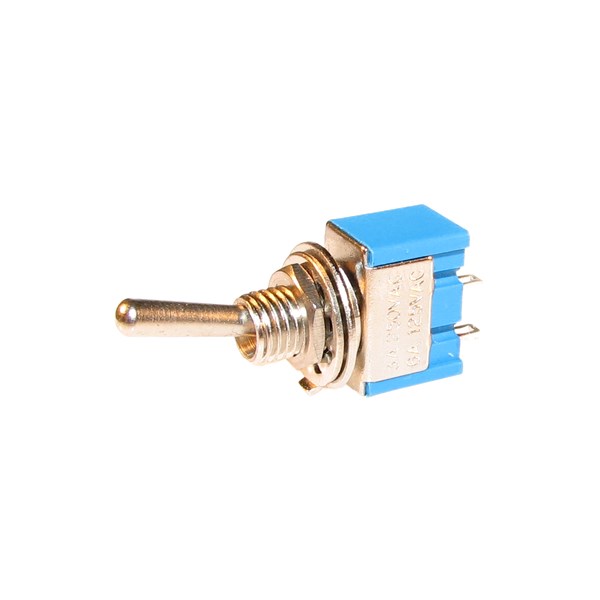

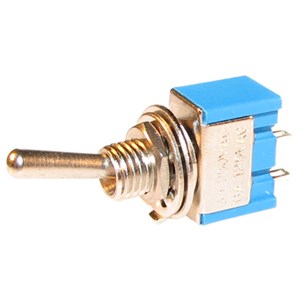

Toggle switch
K872
1-Polig On/Off Miniature vippströmställare.
Brytförmåga: 6 A @ 12 V DC eller 3 A @ 24 V DC
Lödanslutningar: 2 st 2.0 x 0.8 mm
Passar i hål: 6 mm
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
Technical properties
- Nominal voltage:
- 12-24 V
- Connection type:
- Solder
- Surface finishing:
- Glossy
- Imprint/indication:
- None
- Method of operation:
- Toggle
- Illumination:
- None
- Model:
- Off switch
- Nominal current:
- 3-6 A
- Transparent:
- No
- Type of fastening:
- Fastening ring/-nut
- Number of control elements:
- 1 .
- Number of poles:
- 1-pole
- Material:
- Metal
- Product Group:
- Strömställare
- Type of product:
- Vippströmställare
- Built-in depth:
- 10.3 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

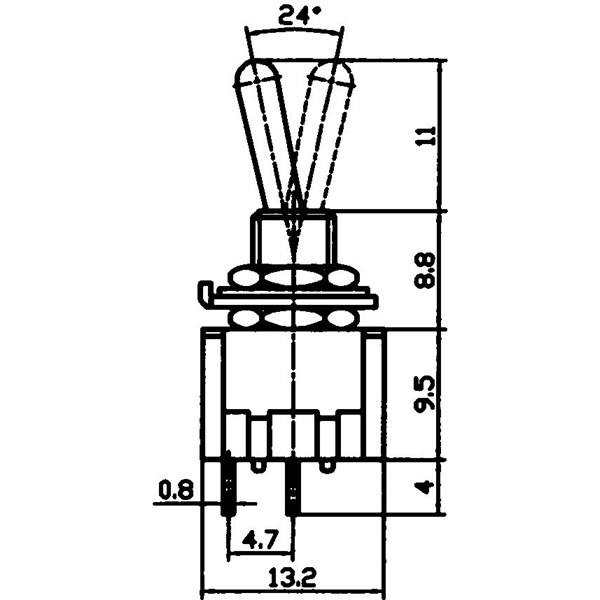

Dimensions
- Total: 2
| Product Description | Built-in depth | Hole diameter built-in | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | 10.3 mm | 6 mm | 1 . | pck | 12-24 V |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | 10 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Nominal voltage | Connection type | Surface finishing | Imprint/indication | Method of operation | Illumination | Model | Nominal current | Transparent | Type of fastening | Number of control elements | Number of poles | Material | Product Group | Type of product | Built-in depth | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | 12-24 V | Solder | Glossy | None | Toggle | None | Off switch | 3-6 A | No | Fastening ring/-nut | 1 . | 1-pole | Metal | Vippströmställare | 10.3 mm |
Yes
|
|
|
|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | Strömställare | Vippströmställare |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | EC000443 - Device built-in switch and -push button | 9.0 |
|
Toggle switches | VIPPSTRÖMSTÄLLARE, 1-POL, ON/OFF | K872-PP1 |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, ON/OFF 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | EC000443 - Device built-in switch and -push button | 9.0 |
|
Toggle switches | VIPPSTRÖMSTÄLLARE, 1-POL, ON/OFF | K872 |
Yes
|
|
|
- Total: 2
