Bladsäkringar - BSO-serien i Konsumentförpackning
Bladsäkring enligt VAG standard.
HÃ¥lstorlek: M6
CC-mått: 30 mm
Material: Zink

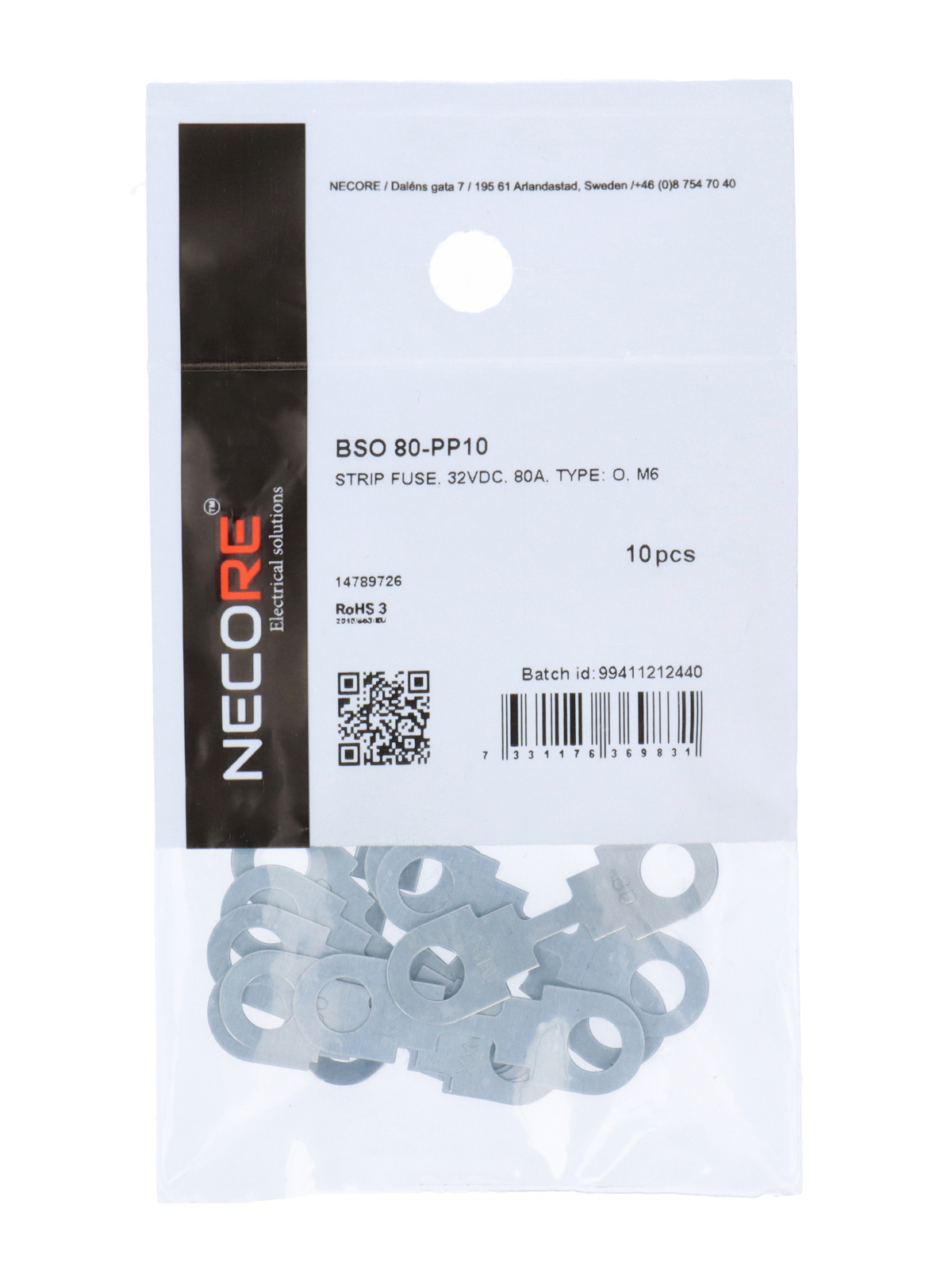

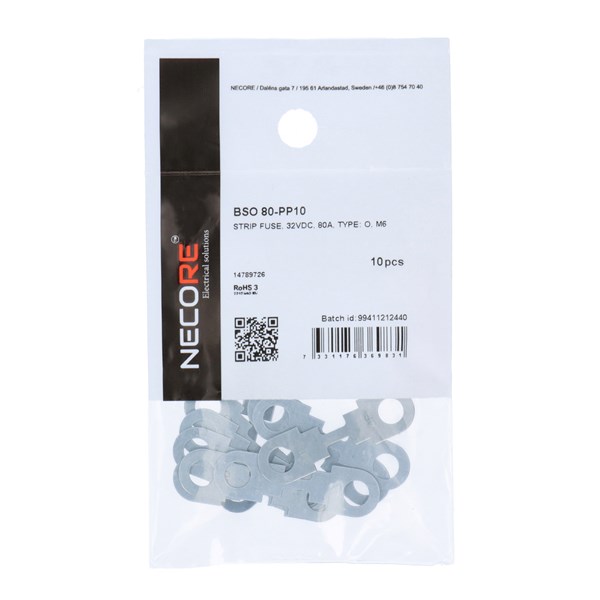

Denna artikel är butiksförpackad i påse med streckkod.
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Medium time-lag
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Other
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Nominal current:
- 100 A, 110 A, 125 A, 150 A, 175 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 11
| Product Description | Width | MOQ | Unit | Mounting holes | Centre-to-centre distance of connections | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STRIP FUSE, 32VDC, 30A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 40A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
Yes
|
|
|
| STRIP FUSE, 32VDC, 50A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 60A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 70A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 80A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
Yes
|
|
|
| STRIP FUSE, 32VDC, 100 A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 110A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
Yes
|
|
|
| STRIP FUSE, 32VDC, 125A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 150A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
| STRIP FUSE, 32VDC, 175A TYPE: O, M6 | 42 mm | 10 . | pck | M6 | 30 mm | 12 mm |
No
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
- Total: 11
Technical Properties
- Total: 11
| Product Description | Explosion-proof | Release characteristic | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Nominal current | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STRIP FUSE, 32VDC, 30A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 30 A |
No
|
|
|
| STRIP FUSE, 32VDC, 40A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 40 A |
Yes
|
|
|
| STRIP FUSE, 32VDC, 50A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 50 A |
No
|
|
|
| STRIP FUSE, 32VDC, 60A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 60 A |
No
|
|
|
| STRIP FUSE, 32VDC, 70A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 70 A |
No
|
|
|
| STRIP FUSE, 32VDC, 80A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 80 A |
Yes
|
|
|
| STRIP FUSE, 32VDC, 100 A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 100 A |
No
|
|
|
| STRIP FUSE, 32VDC, 110A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 110 A |
Yes
|
|
|
| STRIP FUSE, 32VDC, 125A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 125 A |
No
|
|
|
| STRIP FUSE, 32VDC, 150A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 150 A |
No
|
|
|
| STRIP FUSE, 32VDC, 175A TYPE: O, M6 | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 175 A |
No
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| STRIP FUSE, 32VDC, 30A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO30-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 40A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO40-PP10 |
Yes
|
|
|
| STRIP FUSE, 32VDC, 50A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO50-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 60A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO60-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 70A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO70-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 80A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO80-PP10 |
Yes
|
|
|
| STRIP FUSE, 32VDC, 100 A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO100-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 110A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO110-PP10 |
Yes
|
|
|
| STRIP FUSE, 32VDC, 125A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO125-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 150A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO150-PP10 |
No
|
|
|
| STRIP FUSE, 32VDC, 175A TYPE: O, M6 | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BSO175-PP10 |
No
|
|
|
- Total: 11
