CS 70A

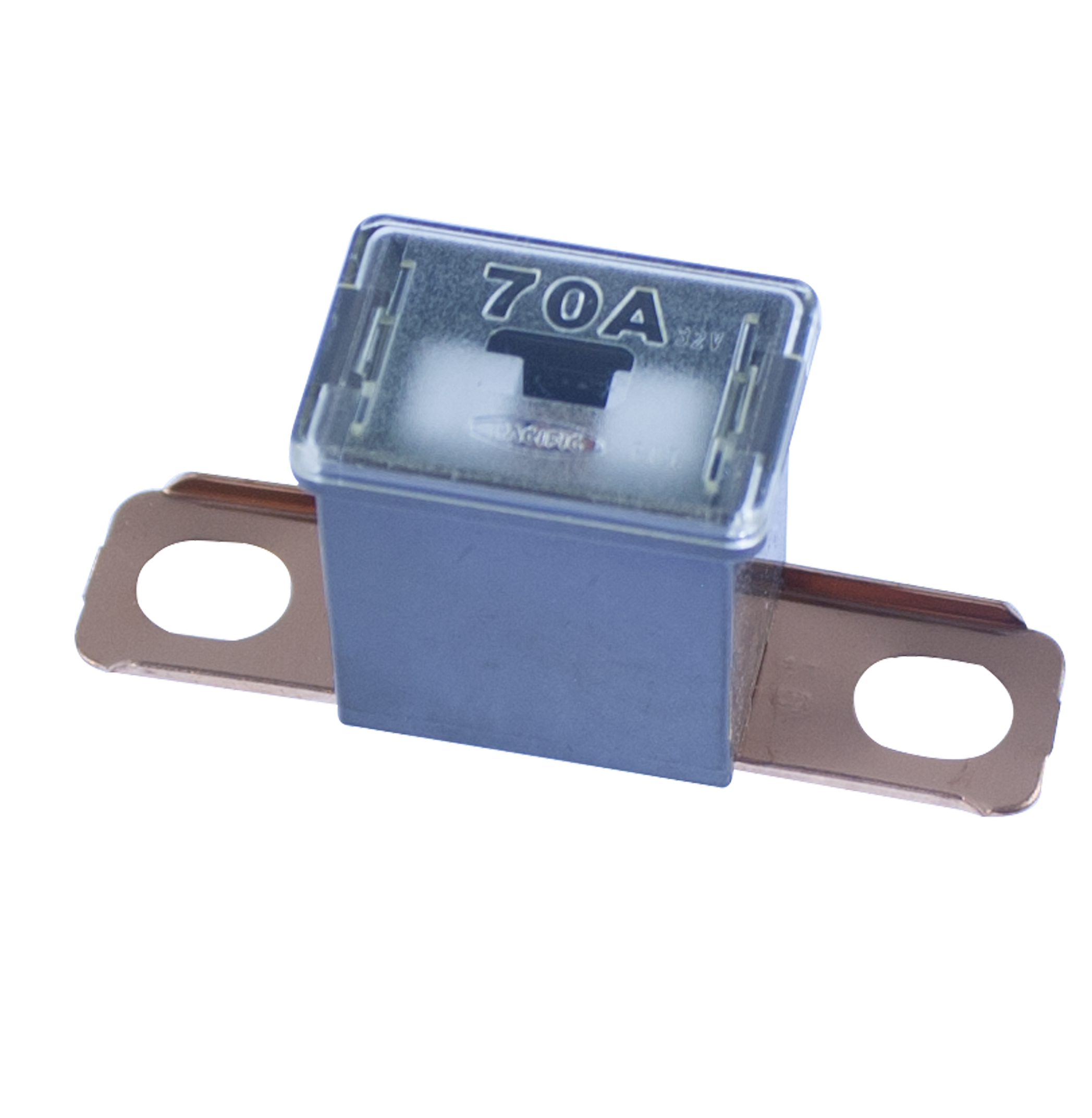

JAPANESE FUSE LINKS, 70A GREY
CS 70A
- Availability:
-
Yes
- Total: 1
Related items
Japanese fuses - CS series (short)
CS-series (short "legs")
Maximum voltage: 32 V DCCurrent rating: 20-120 A
- Total: 1
Product Properties
| Explosion-proof | No |
|---|---|
| Release characteristic | Time-lag (T) |
| Optical defect indication | Yes |
| Type of current | DC |
| Colour code | Blue |
| Nominal voltage DC | 32 V |
| Max. continuous voltage DC | 32 V |
| Max. current (Imax) | 70 A |
| Nominal current | 70 A |
| Packaging | Loose piece |
Dimensions
| Width | 48 mm |
|---|---|
| MOQ | 10 . |
| Unit | pcs |
| Mounting holes | Other |
| Thickness | 15.1 mm |
| Length | 22.2 mm |
Logistics
| Barcode | 733117611879 |
|---|---|
| Country of origin | TW |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Packaging | Loose piece |
| Stock code | CS 70A |
| Taric code | 85361090 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC004122 - Strip fuse |
|---|---|
| ETIM-Release | DYNAMIC |
| Trademark | NEMIQ |
| Product Group | Japanese fuses |
| Alternative SKU | CS70A |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
