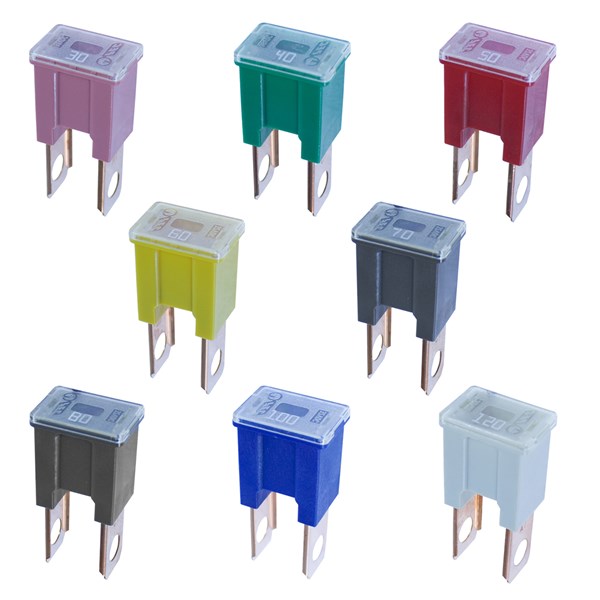

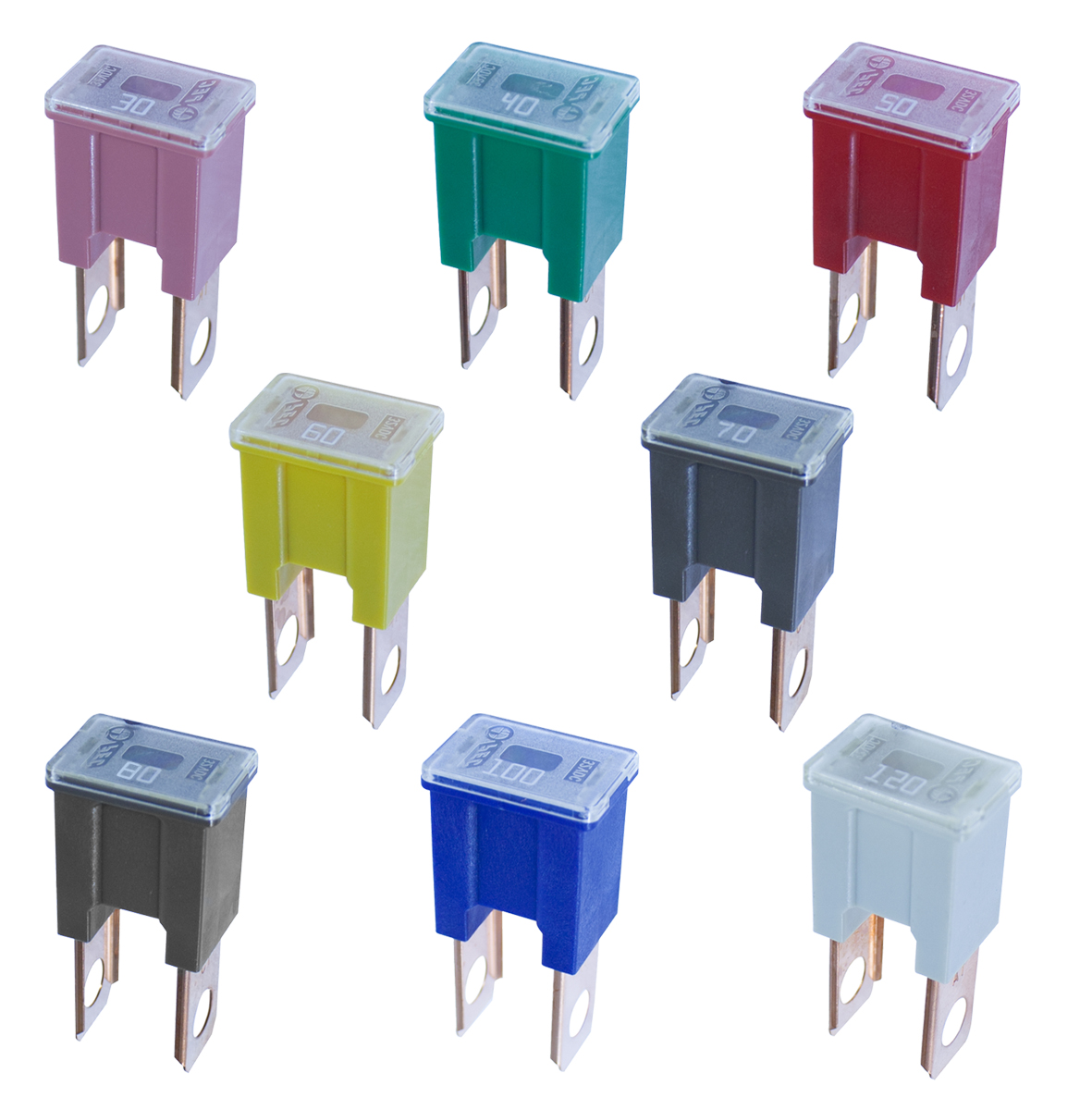

Japanese fuses - B series
B
Maximum voltage: 32 V DCCurrent rating: 30-120 A
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Blue
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 100 A, 120 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A
- Nominal current:
- 100 A, 120 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A
- Packaging:
- Loose piece
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 8
| Product Description | Width | MOQ | Unit | Mounting holes | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 30A PINK | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 70A BROWN | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 100A BLUE | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 120A BEIGE | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 43.2 mm |
Yes
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Availability | ||
|---|---|---|---|
| JAPANESE FUSE LINKS, 30A PINK |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW |
Yes
|
|
|
| JAPANESE FUSE LINKS, 70A BROWN |
Yes
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK |
Yes
|
|
|
| JAPANESE FUSE LINKS, 100A BLUE |
Yes
|
|
|
| JAPANESE FUSE LINKS, 120A BEIGE |
Yes
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Explosion-proof | Release characteristic | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Max. current (Imax) | Nominal current | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 30A PINK | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 30 A | 30 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 40 A | 40 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 50 A | 50 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 60 A | 60 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 70A BROWN | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 70 A | 70 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 80 A | 80 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 100A BLUE | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 100 A | 100 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 120A BEIGE | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 120 A | 120 A | Loose piece |
Yes
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 30A PINK | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B30A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B40A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B50A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B60A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 70A BROWN | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B70A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B80A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 100A BLUE | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B100A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 120A BEIGE | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | B120A |
Yes
|
|
|
- Total: 8
