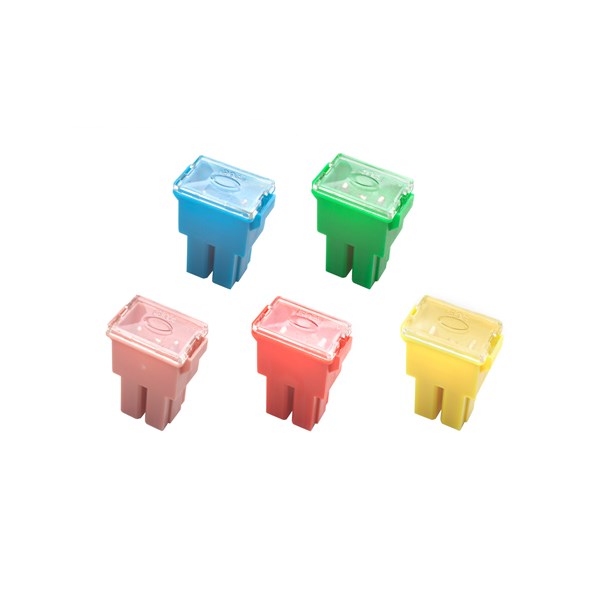

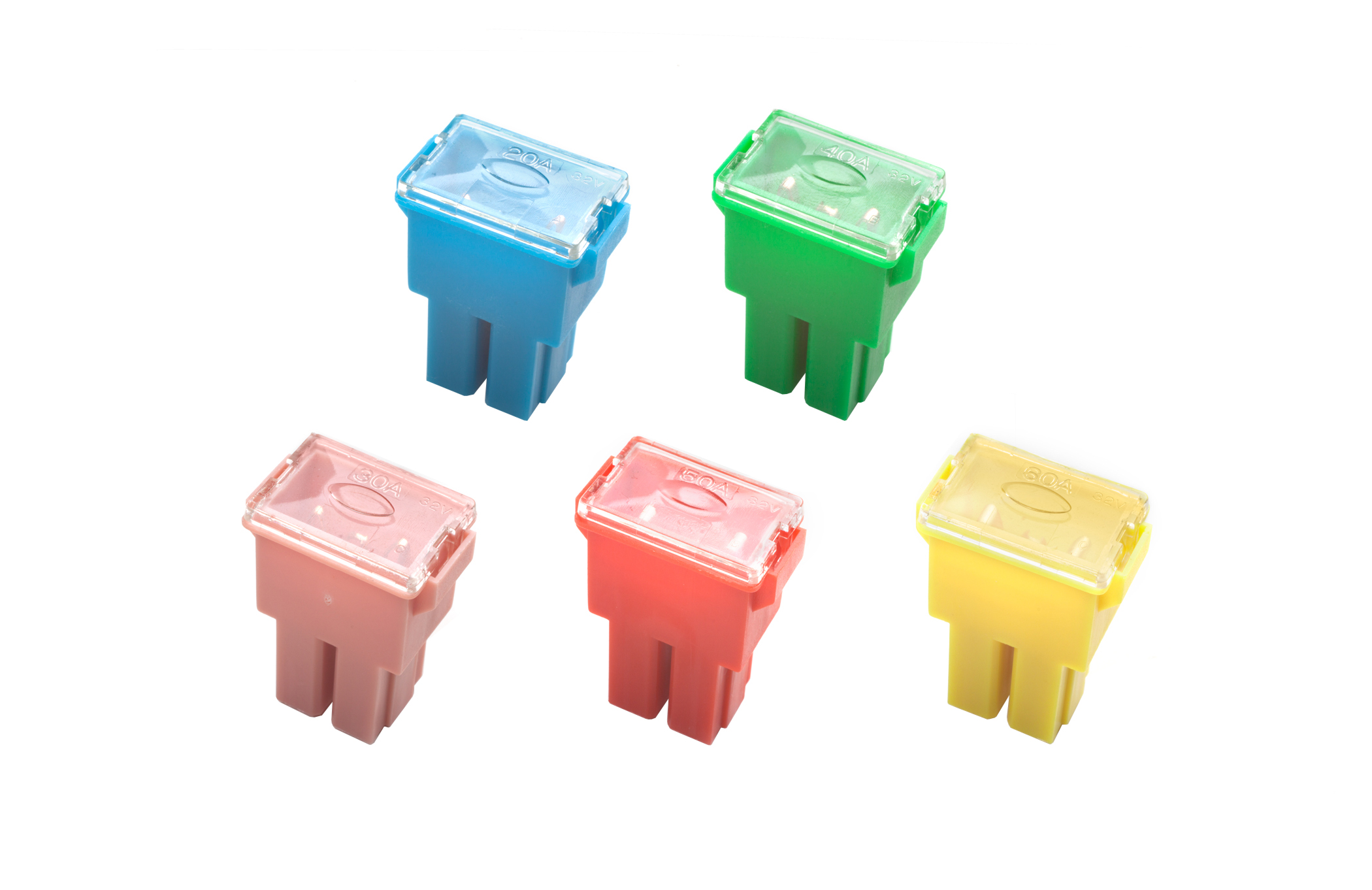

Japanese fuses - AS series
AS
Maximum voltage: 32 V DCCurrent rating: 20-100 A
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Blue
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 20 A, 30 A, 40 A, 50 A, 60 A
- Nominal current:
- 20 A, 30 A, 40 A, 50 A, 60 A, 100 A, 80 A
- Packaging:
- Loose piece
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AK, AKK, AKP, AKS, AS
Dimensions
- Total: 7
| Product Description | Width | MOQ | Unit | Mounting holes | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 100A BLUE | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 20A LIGHT BLUE | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A PINK | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW | 22.2 mm | 10 . | pcs | Other | 15.1 mm | 30.5 mm |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| JAPANESE FUSE LINKS, 100A BLUE |
Yes
|
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK |
Yes
|
|
|
|
| JAPANESE FUSE LINKS, 20A LIGHT BLUE |
|
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A PINK |
|
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN |
|
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED |
|
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW |
|
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Explosion-proof | Release characteristic | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Max. current (Imax) | Nominal current | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 100A BLUE | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 100 A |
Yes
|
|
|
||
| JAPANESE FUSE LINKS, 80A BLACK | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 80 A |
Yes
|
|
|
||
| JAPANESE FUSE LINKS, 20A LIGHT BLUE | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 20 A | 20 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A PINK | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 30 A | 30 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 40 A | 40 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 50 A | 50 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW | No | Time-lag (T) | Yes | DC | Blue | 32 V | 32 V | 60 A | 60 A | Loose piece |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 100A BLUE | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS100A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 80A BLACK | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS80A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 20A LIGHT BLUE | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS20A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A PINK | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS30A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 40A GREEN | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS40A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 50A RED | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS50A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 60A YELLOW | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | AS60A |
Yes
|
|
|
- Total: 7
