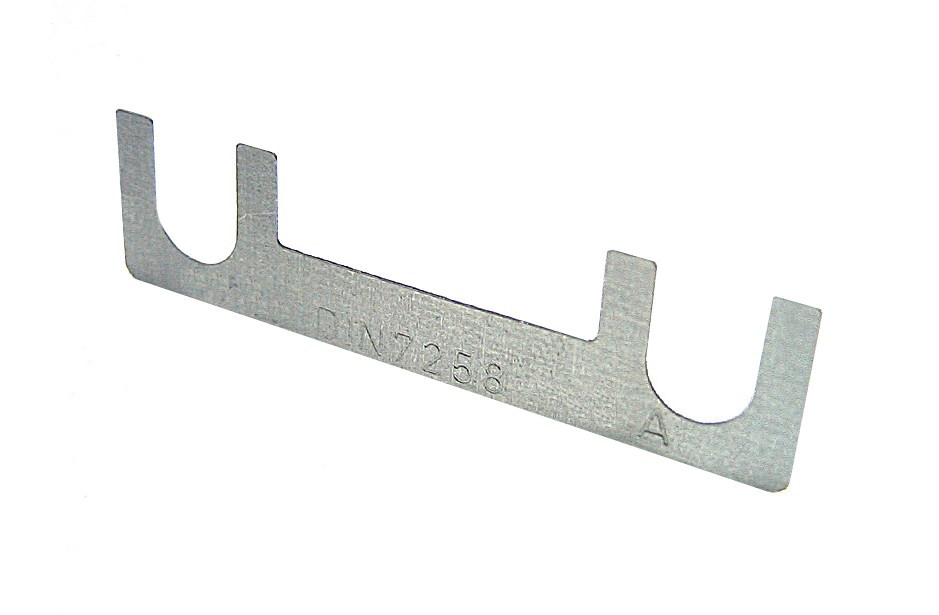

Bladsäkringar - BS-Series
Bolt-on fuse according to DIN 72581-2
Maximum voltage: 32 V DC
Current rating: 30-100 A
Stud size: M5
CC dimensions: 30 mm
Material: Zinc
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Medium time-lag
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Other
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 100 A, 30 A, 40 A, 50 A, 60 A, 80 A
- Nominal current:
- 100 A, 30 A, 40 A, 50 A, 60 A, 80 A
- Fuse type:
- Bladsäkring
- Packaging:
- Loose piece
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | Width | MOQ | Unit | Mounting holes | Centre-to-centre distance of connections | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FLAT TYPE FUSE, 30A . | 41 mm | 100 . | pcs | M5 | 30 mm | 11 mm |
Yes
|
|
|
| FLAT TYPE FUSE, 40A . | 41 mm | 100 . | pcs | M5 | 30 mm | 11 mm |
Yes
|
|
|
| FLAT TYPE FUSE, 50A . | 41 mm | 100 . | pcs | M5 | 30 mm | 11 mm |
Yes
|
|
|
| FLAT TYPE FUSE, 60A . | 41 mm | 100 . | pcs | M5 | 30 mm | 11 mm |
Yes
|
|
|
| FLAT TYPE FUSE, 80A . | 41 mm | 100 . | pcs | M5 | 30 mm | 11 mm |
Yes
|
|
|
| FLAT TYPE FUSE, 100A . | 41 mm | 100 . | pcs | M5 | 30 mm | 11 mm |
Yes
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | Availability | ||
|---|---|---|---|
| FLAT TYPE FUSE, 30A . |
Yes
|
|
|
| FLAT TYPE FUSE, 40A . |
Yes
|
|
|
| FLAT TYPE FUSE, 50A . |
Yes
|
|
|
| FLAT TYPE FUSE, 60A . |
Yes
|
|
|
| FLAT TYPE FUSE, 80A . |
Yes
|
|
|
| FLAT TYPE FUSE, 100A . |
Yes
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Explosion-proof | Release characteristic | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Max. current (Imax) | Nominal current | Fuse type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FLAT TYPE FUSE, 30A . | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 30 A | 30 A | Bladsäkring | Loose piece |
Yes
|
|
|
| FLAT TYPE FUSE, 40A . | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 40 A | 40 A | Bladsäkring | Loose piece |
Yes
|
|
|
| FLAT TYPE FUSE, 50A . | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 50 A | 50 A | Bladsäkring | Loose piece |
Yes
|
|
|
| FLAT TYPE FUSE, 60A . | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 60 A | 60 A | Bladsäkring | Loose piece |
Yes
|
|
|
| FLAT TYPE FUSE, 80A . | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 80 A | 80 A | Bladsäkring | Loose piece |
Yes
|
|
|
| FLAT TYPE FUSE, 100A . | No | Medium time-lag | Yes | DC | Other | 32 V | 32 V | 100 A | 100 A | Bladsäkring | Loose piece |
Yes
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| FLAT TYPE FUSE, 30A . | EC004122 - Strip fuse | DYNAMIC | Bolt-on / Strip fuses | BS30 |
Yes
|
|
|
| FLAT TYPE FUSE, 40A . | EC004122 - Strip fuse | DYNAMIC | Bolt-on / Strip fuses | BS40 |
Yes
|
|
|
| FLAT TYPE FUSE, 50A . | EC004122 - Strip fuse | DYNAMIC | Bolt-on / Strip fuses | BS50 |
Yes
|
|
|
| FLAT TYPE FUSE, 60A . | EC004122 - Strip fuse | DYNAMIC | Bolt-on / Strip fuses | BS60 |
Yes
|
|
|
| FLAT TYPE FUSE, 80A . | EC004122 - Strip fuse | DYNAMIC | Bolt-on / Strip fuses | BS80 |
Yes
|
|
|
| FLAT TYPE FUSE, 100A . | EC004122 - Strip fuse | DYNAMIC | Bolt-on / Strip fuses | BS100 |
Yes
|
|
|
- Total: 6
