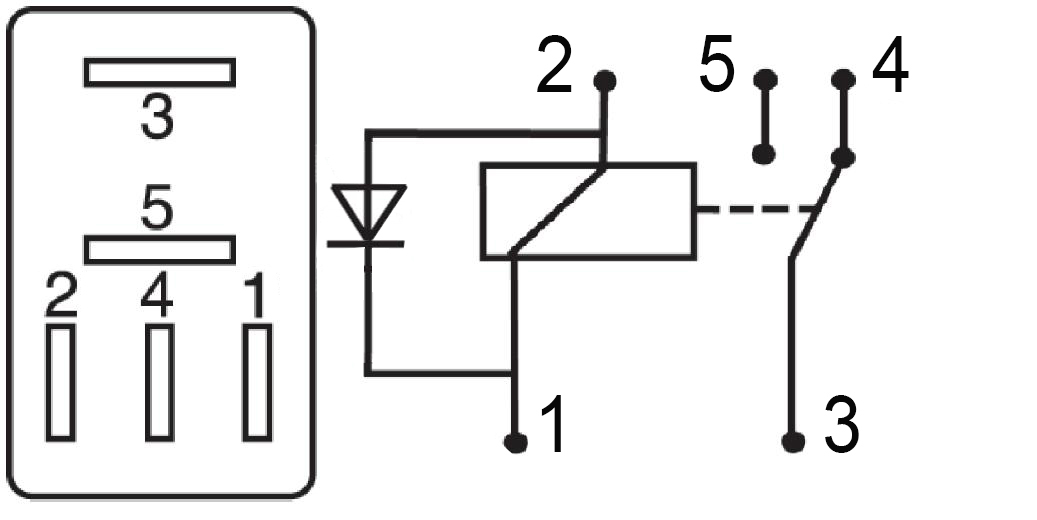

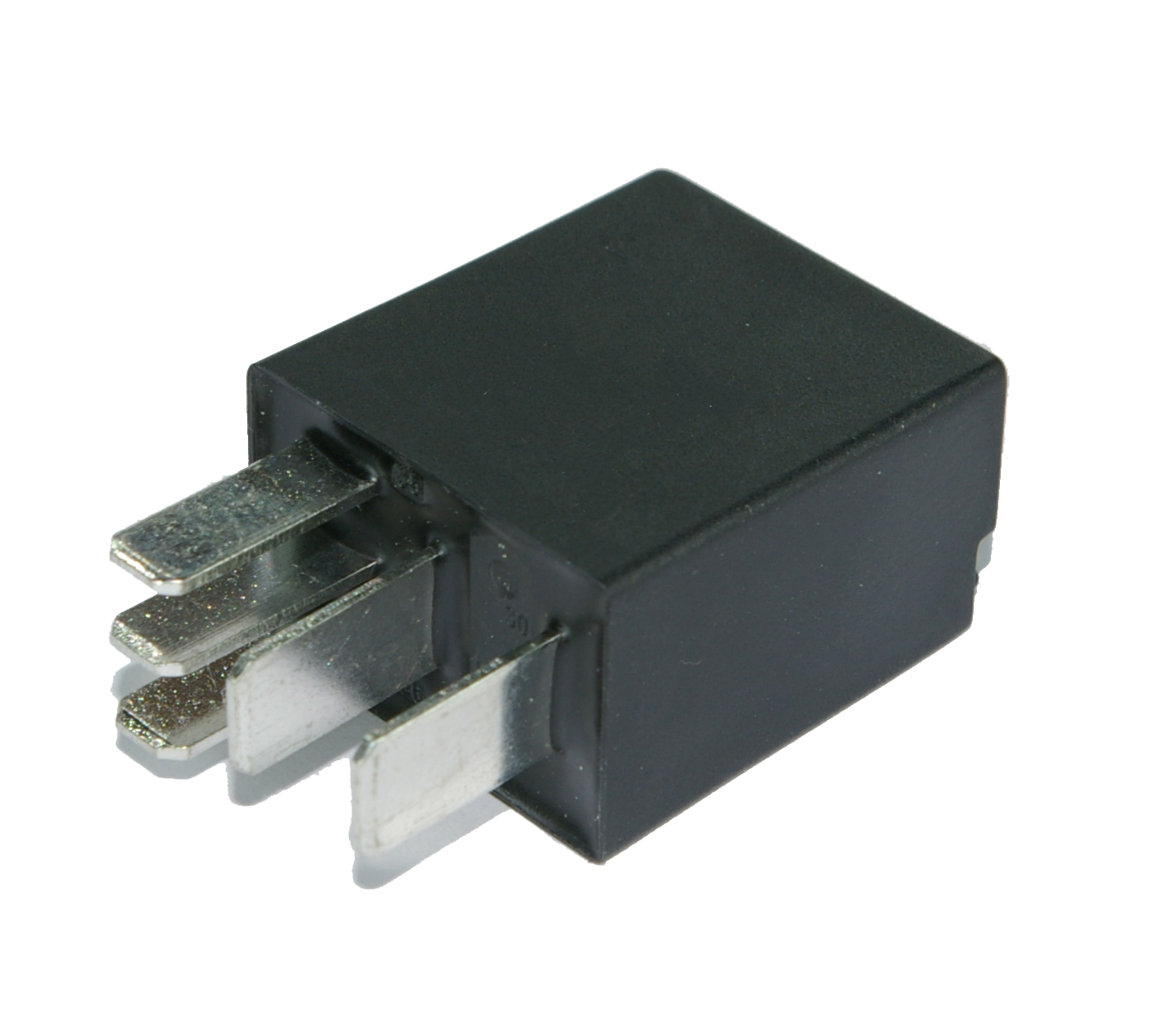

Diode - Single, On/On, 5 pin
On/On, 5-stifts (3 st 4.8 x 0.8 & 2 st 6.3 x 0.8 mm) diod-relä. Tätad runt stift, vattentät.
Plasthus i storlek (L x B x H): 23 x 15 x 26 mm
Diod-reläer eliminerar spänningsspikar och skyddar elektroniken.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V, 24 V
- Type of switch contact:
- Single contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Nominal current:
- 15-25 A
- Type of electric connection:
- Flat plug-in connection
- Number of contacts as normally closed contact:
- 1 .
- Number of contacts as normally open contact:
- 1 .
- Number of contacts as change-over contact:
- 0 .
- Rated control supply voltage DC:
- 12 V, 24 V
- Voltage:
- 12V
- With detachable clamps:
- No
- Function:
- On/On
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 2
| Product Description | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 12V, 15/25A | 23 mm | 15 mm | 26 mm | 1 . | pcs |
Yes
|
|
|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 24V, 5/10A | 23 mm | 15 mm | 26 mm | 1 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 12V, 15/25A |
Yes
|
|
|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 24V, 5/10A |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Rated control supply voltage DC | Voltage | With detachable clamps | Function | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 12V, 15/25A | No | 12 V | Single contact | DC | DC | No | 15-25 A | Flat plug-in connection | 1 . | 1 . | 0 . | 12 V | 12V | No | On/On | Loose piece |
Yes
|
|
|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 24V, 5/10A | No | 24 V | Single contact | DC | DC | No | 5-10 A | Flat plug-in connection | 1 . | 1 . | 0 . | 24 V | 12V | No | On/On | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 12V, 15/25A | EC001437 - Switching relay | 9.0 |
|
Micro relays - Diode | MICRORELÄ, ENKEL, ON/ON, DIOD | DM006VT |
Yes
|
|
|
| MICRO RELAY, SINGLE, ON/ON, DIODE 5 PIN, 24V, 5/10A | EC001437 - Switching relay | 9.0 |
|
Micro relays - Diode | MICRORELÄ, ENKEL, ON/ON, DIOD | DM007VT |
Yes
|
|
|
- Total: 2
