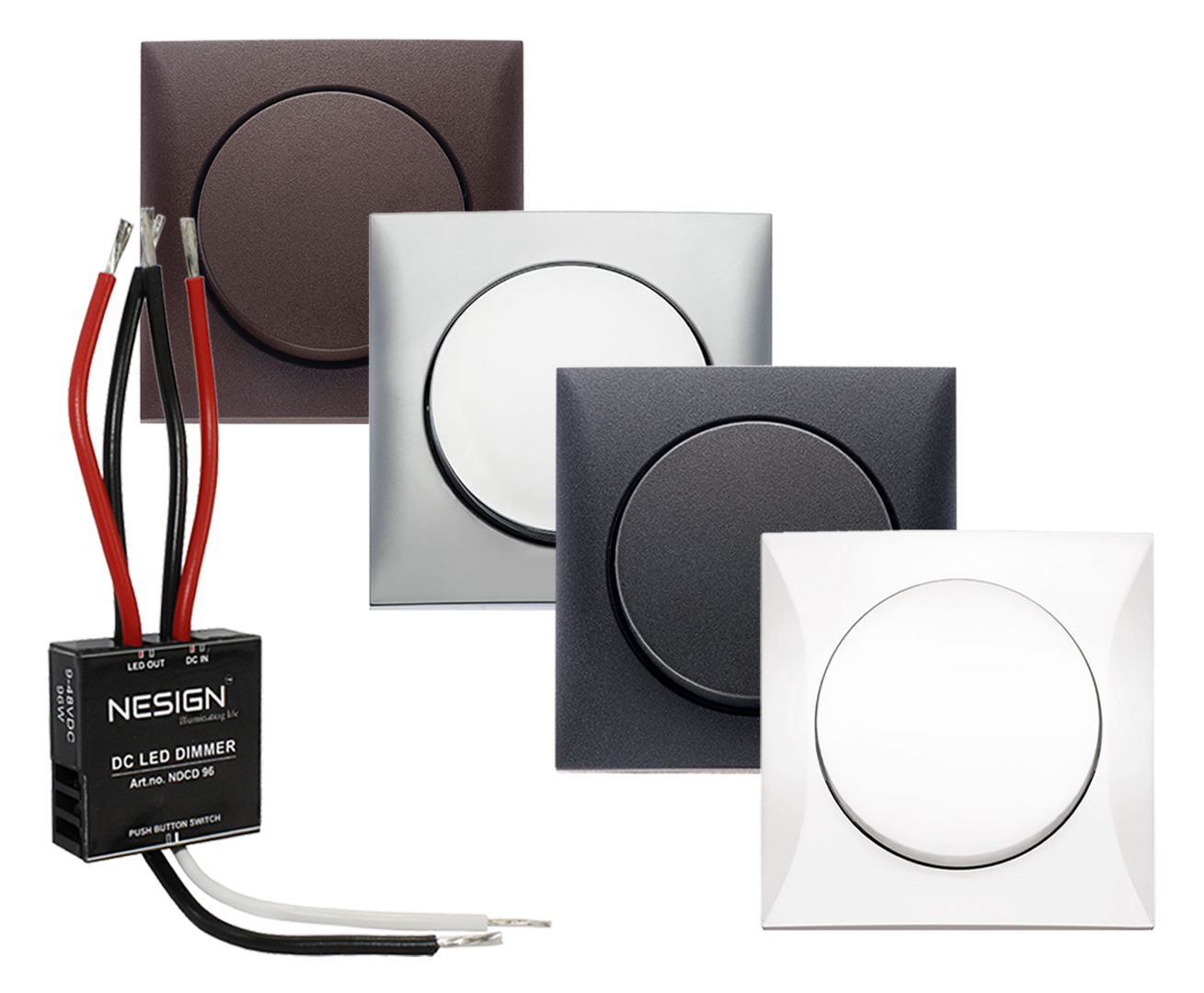

DC dimmer with Berker Integro rocker push-button
DC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights/strips.
Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present.
Accurate and flicker free dimming to very low intensity. No minimum load.
Connect any number of DC dimmers to a single push-button switch.
Connect any no of push-button switch to dimmer.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
9-48VDC, 96W, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
Technical properties
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents

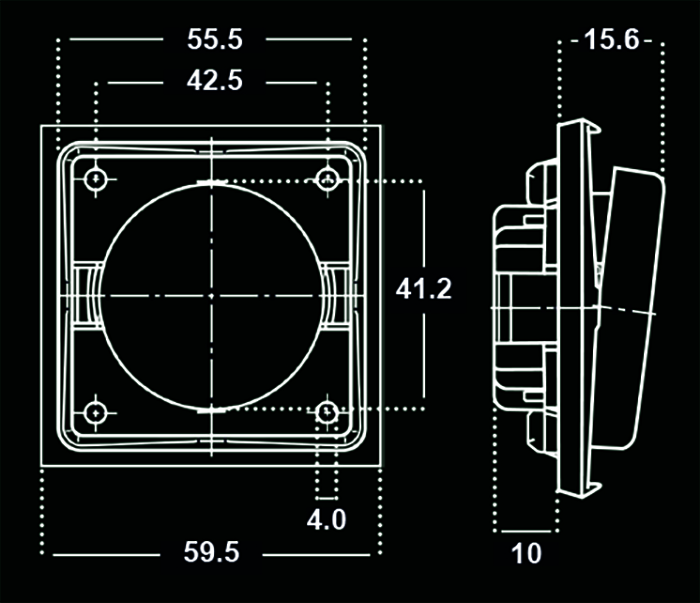

Dimensions
- Total: 5
- Total: 5
Similar Options
Approvals
- Total: 5
- Total: 5
Technical Properties
- Total: 5
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| DIMMER 9-48V DC, LED- 96W WITH PUSH-BUTTON SWITCH BROWN MATT, INTEGRO FLOW, NO CONTACT | EC000025 - Dimmer | 9.0 |
|
Dimmers | DIMMER 9-48V DC, 96W MED TRYCKKNAPPSBRYTARE | 171436712501D |
No
|
|
|
| DIMMER 9-48V DC, LED- 96W WITH PUSH-BUTTON SWITCH ANTHRACITE GREY INTEGRO FLOW, SUSPENSION SWITCH | EC000025 - Dimmer | 9.0 |
|
Dimmers | DIMMER 9-48V DC, 96W MED TRYCKKNAPPSBRYTARE | 171436712505D |
Yes
|
|
|
| DIMMER 9-48V DC, LED- 96W WITH PUSH-BUTTON SWITCH POLAR WHITE GLOSSY, INTEGRO FLOW, NO CONTACT | EC000025 - Dimmer | 9.0 |
|
Dimmers | DIMMER 9-48V DC, 96W MED TRYCKKNAPPSBRYTARE | 171436712509D |
No
|
|
|
| DIMMER 9-48V DC, LED- 96W WITH PUSH-BUTTON SWITCH CHROME GLOSSY INTEGRO FLOW, SUSPENSION SWITCH | EC000025 - Dimmer | 9.0 |
|
Dimmers | 171436712518D |
Yes
|
|
|
|
| DIMMER 9-48V DC, LED- 96W WITH PUSH-BUTTON SWITCH CHROME MATT INTEGRO FLOW, SUSPENSION SWITCH | EC000025 - Dimmer | 9.0 |
|
Dimmers | 171436712528D |
Yes
|
|
|
