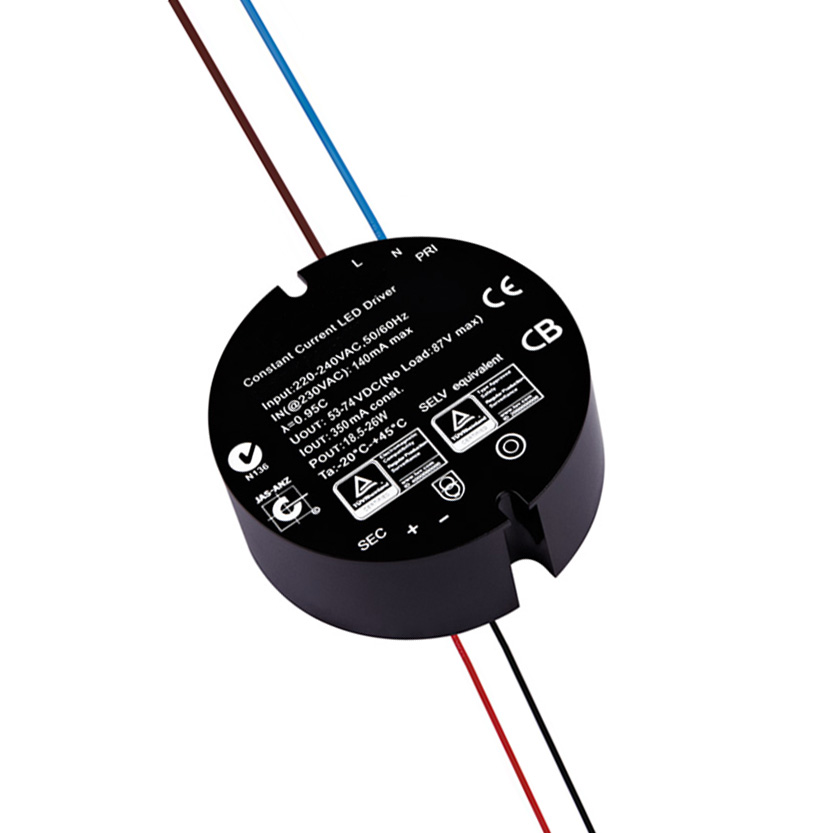

Driver for LED 18.5-26W
Drivers for LED downlights.
Technical data:
Voltage: 220-240 VAC
Frequency: 50-60 Hz
Size (LxWxH): See table below.
Power: See table below.
Temperature range: -20°C to +50°
CIP rating: IP65
Cable: Input: 100mm, 0.5mm2. Output: 200mm, AWG22.
LDD26S: Suited for 6-8 LED from the LSP-series or 2 LED from the MSP-series. See accessories below for appropriate connectors.
Technical properties
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Housing:
- Plastic housing
- Suitable for constant current:
- Yes
- Suitable for constant voltage:
- No
- Output voltage:
- 53-74 V
- Output current:
- 350 mA
- Output power:
- 18.5-26 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Width | Height | Diameter | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LED DRIVER 18.5-26W, 350mA, IP65 DIAMETER=72.5mm, THICKNESS=29mm | 72.5 mm | 29 mm | 72.5 mm | 1 . | pcs | 72.5 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Protection class according to IEC 61140 | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|---|
| LED DRIVER 18.5-26W, 350mA, IP65 DIAMETER=72.5mm, THICKNESS=29mm | III | IP65 |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Suitable for outdoor use | Dimming phase cut-off (trailing edge) | Dimming phase cut-on (leading edge) | Housing | Suitable for constant current | Suitable for constant voltage | Output voltage | Output current | Output power | Protection class according to IEC 61140 | Degree of protection (IP) | Model | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED DRIVER 18.5-26W, 350mA, IP65 DIAMETER=72.5mm, THICKNESS=29mm | Yes | No | No | Plastic housing | Yes | No | 53-74 V | 350 mA | 18.5-26 W | III | IP65 | Dynamic |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LED DRIVER 18.5-26W, 350mA, IP65 DIAMETER=72.5mm, THICKNESS=29mm | EC002710 - LED driver | 9.0 |
|
LED Drivers | DRIVDON | LDD26S |
Yes
|
|
|
- Total: 1
