Runda ramar för LSP-Serien i butiksförpackning

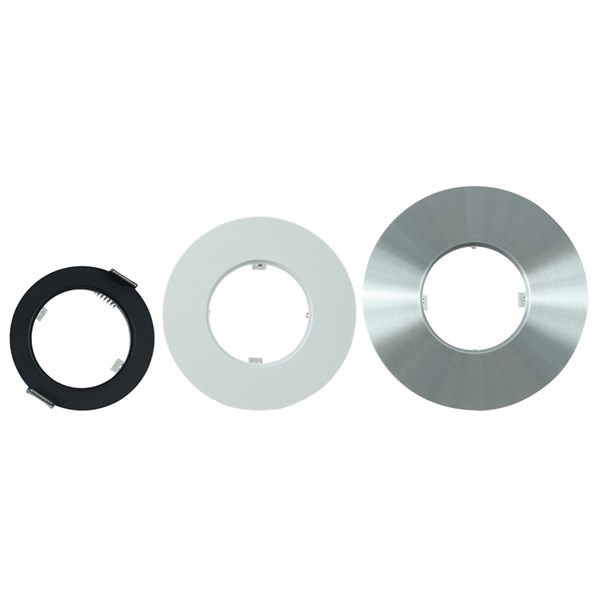

Frames with an outer diameter of 60mm, 80mm or 90mm.Installation:60x60mm frames have springs and can be mounted in recessed ceiling.Hole size: 52-54mm80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes.Hole size: 52-62mm.90mm frames have metal wings and can be mounted in ceiling as well as in 80mm junction boxes.Hole size: 52-72mm.Available in white, black or aluminum color.
Technical properties
- Housing material:
- Aluminium
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for number of lamps:
- 1 .
- Housing colour:
- Aluminium, Black, White
- Surface brushed:
- Yes, No
- Frame shape:
- Round
- Surface protection:
- Other, Powder coating
Show more
Item List
Accessories
- Total: 1
-
LED Spotlight LSP-Serien i butiksförpackning
Small downlights which can be put in different sized frames. There are frames for different applications, they can be round, square or rectangular. These downlights can be tilted, only use high quality components and has a premium feeling.Works for both indoor and outdoor use.Technical data:Power: 3.3WLumen: See below.Dimmable: YesLight beam spread: 60°Color temp: See below.IP rating: IP54Temp. Range: -20°C to +50°CLife-span: 70% after 50.000hVoltage: 1-10VCurrent: Constant 350mAAmount of LED’s: 1pcsType of LED: COB, CREE CXA1304-2 STEPCRI: RA90Optics: Reflector with a prism in front of the LED.Glass: ClearEnergy rating: A++Cable: 100mm AWG22 with connector.Size: Depth=50mm, Height=60mmAvailable in white, black or aluminum color.
- Total: 1
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 9
- Total: 9
Similar Options
Approvals
- Total: 9
- Total: 9
Technical Properties
- Total: 9
| Product Description | Housing material | Suitable for suspended mounting | Suitable for ceiling mounting | Suitable for traverse mounting | Suitable for pedestal/floor mounting | Suitable for light-track mounting | Suitable for clamp-mounting | Suitable for number of lamps | Housing colour | Surface brushed | Frame shape | Surface protection | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRAME, ROUND 60mm for LSP-SERIES ALUMINUM, SPRING | Aluminium | No | Yes | No | No | No | No | 1 . | Aluminium | Yes | Round | Other |
Yes
|
|
|
| FRAME, ROUND 60mm for LSP-SERIES BLACK, SPRING | Aluminium | No | Yes | No | No | No | No | 1 . | Black | No | Round | Powder coating |
Yes
|
|
|
| FRAME, ROUND 60mm for LSP-SERIES WHITE, SPRING | Aluminium | No | Yes | No | No | No | No | 1 . | White | No | Round | Powder coating |
Yes
|
|
|
| FRAME, ROUND 80mm for LSP-SERIES ALUMINUM, METAL WINGS for 70mm JUNCTION BOX | Aluminium | No | Yes | No | No | No | No | 1 . | Aluminium | Yes | Round | Other |
Yes
|
|
|
| FRAME, ROUND 80mm for LSP-SERIES BLACK, METAL WINGS for 70mm JUNCTION BOX | Aluminium | No | Yes | No | No | No | No | 1 . | Black | No | Round | Powder coating |
Yes
|
|
|
| FRAME, ROUND 80mm for LSP-SERIES WHITE, METAL WINGS for 70mm JUNCTION BOX | Aluminium | No | Yes | No | No | No | No | 1 . | White | No | Round | Powder coating |
Yes
|
|
|
| FRAME, ROUND 90mm for LSP-SERIES ALUMINUM, METAL WINGS for 80mm JUNCTION BOX | Aluminium | No | Yes | No | No | No | No | 1 . | Aluminium | Yes | Round | Other |
Yes
|
|
|
| FRAME, ROUND 90mm for LSP-SERIES BLACK, METAL WINGS for 80mm JUNCTION BOX | Aluminium | No | Yes | No | No | No | No | 1 . | Black | No | Round | Powder coating |
Yes
|
|
|
| FRAME, ROUND 90mm for LSP-SERIES WHITE, METAL WINGS for 80mm JUNCTION BOX | Aluminium | No | Yes | No | No | No | No | 1 . | White | No | Round | Powder coating |
Yes
|
|
|
- Total: 9
Other information
- Total: 9
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| FRAME, ROUND 60mm for LSP-SERIES ALUMINUM, SPRING | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO60ASP |
Yes
|
|
|
| FRAME, ROUND 60mm for LSP-SERIES BLACK, SPRING | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO60BSP |
Yes
|
|
|
| FRAME, ROUND 60mm for LSP-SERIES WHITE, SPRING | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO60WSP |
Yes
|
|
|
| FRAME, ROUND 80mm for LSP-SERIES ALUMINUM, METAL WINGS for 70mm JUNCTION BOX | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO80AMW |
Yes
|
|
|
| FRAME, ROUND 80mm for LSP-SERIES BLACK, METAL WINGS for 70mm JUNCTION BOX | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO80BMW |
Yes
|
|
|
| FRAME, ROUND 80mm for LSP-SERIES WHITE, METAL WINGS for 70mm JUNCTION BOX | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO80WMW |
Yes
|
|
|
| FRAME, ROUND 90mm for LSP-SERIES ALUMINUM, METAL WINGS for 80mm JUNCTION BOX | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO90AMW |
Yes
|
|
|
| FRAME, ROUND 90mm for LSP-SERIES BLACK, METAL WINGS for 80mm JUNCTION BOX | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO90BMW |
Yes
|
|
|
| FRAME, ROUND 90mm for LSP-SERIES WHITE, METAL WINGS for 80mm JUNCTION BOX | EC001744 - Downlight/spot/floodlight | 7.0, 9.0 |
|
LED Downlights LSP - Frames | FRO90WMW |
Yes
|
|
|
- Total: 9
