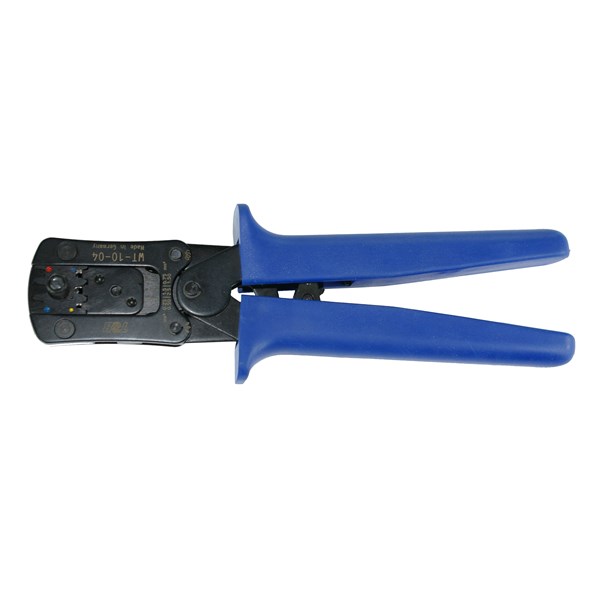

WT 10-04
Pressverktyg med locator för rullpressning av triadkontakter. Har löstagbar CSV 10-back.
Det finns 6 uttag i verktygets pressback från 0.25-1.5 mm².
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 195 mm
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Plastdon
- Compression shape:
- Other
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG TRIADKONTAKT, 10/20-SERIEN, CSV10-BACK | 0.25-1.5 mm² | 1 . | pcs | 195 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG TRIADKONTAKT, 10/20-SERIEN, CSV10-BACK |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG TRIADKONTAKT, 10/20-SERIEN, CSV10-BACK | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Plastdon | Other |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG TRIADKONTAKT, 10/20-SERIEN, CSV10-BACK | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | BLACKFRIDAY | WT10-04 |
Yes
|
|
|
- Total: 1
