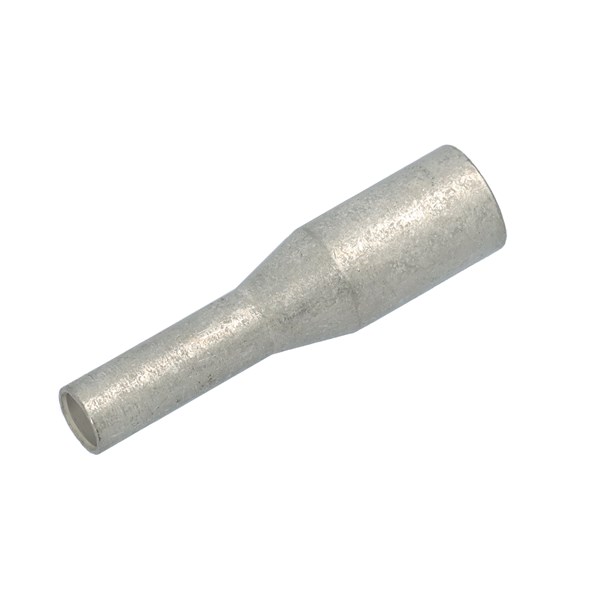

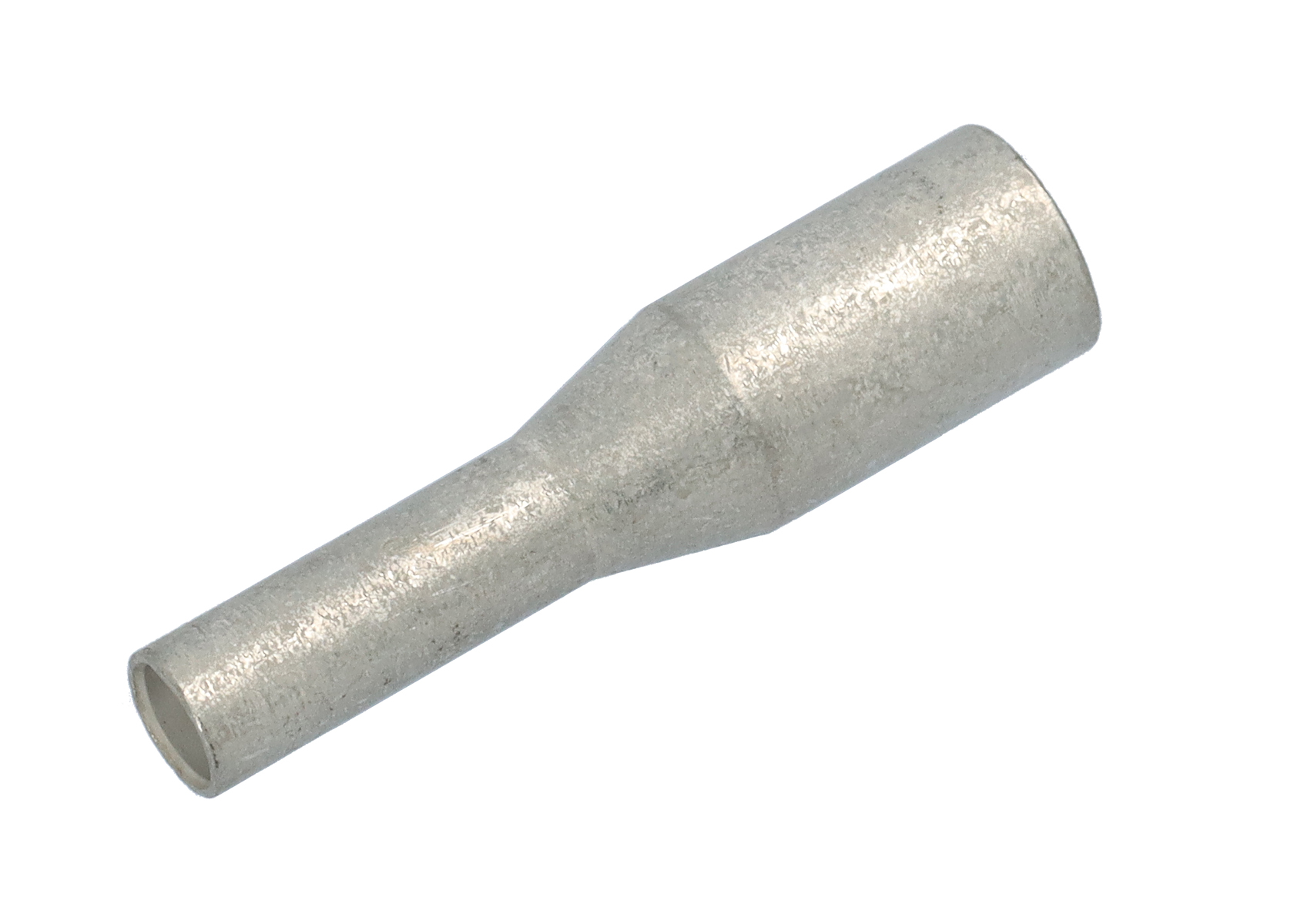

Skarv för Enkel – flertrådig kabel
Copper connectors that can be used when connecting solid wires to stranded wires.
Material: 99.9% pure copper
Surface:> 4μ Sn
Technical properties
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2

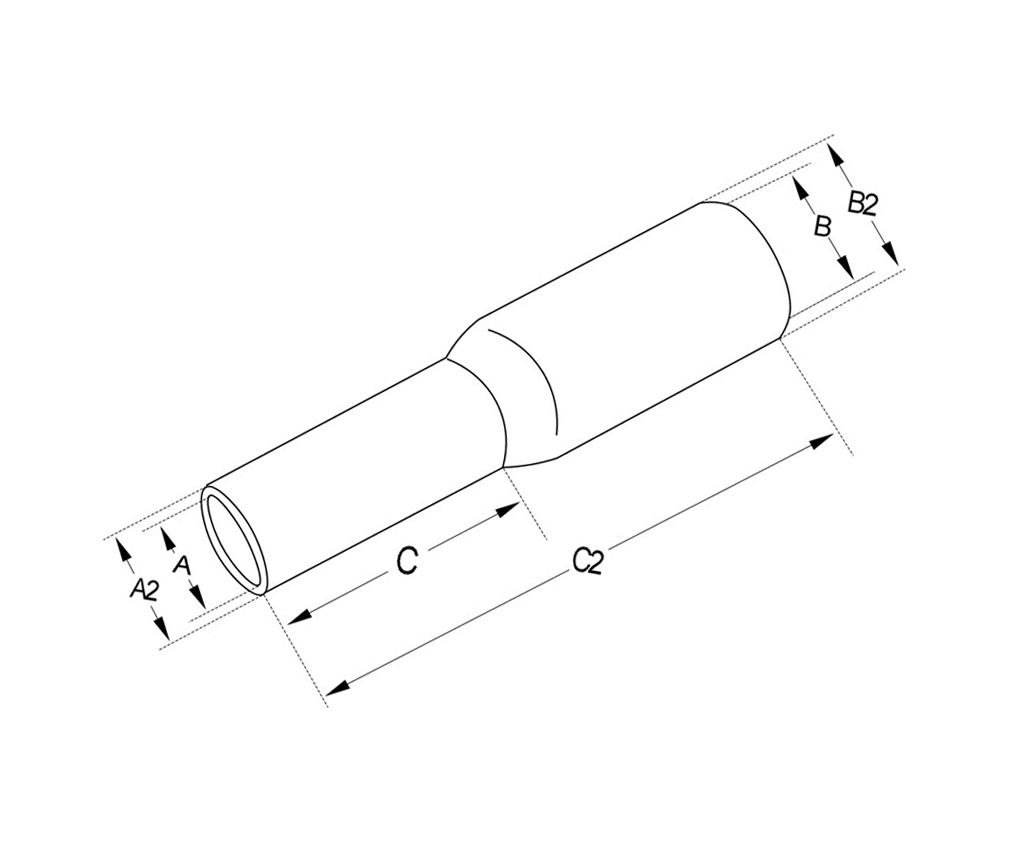

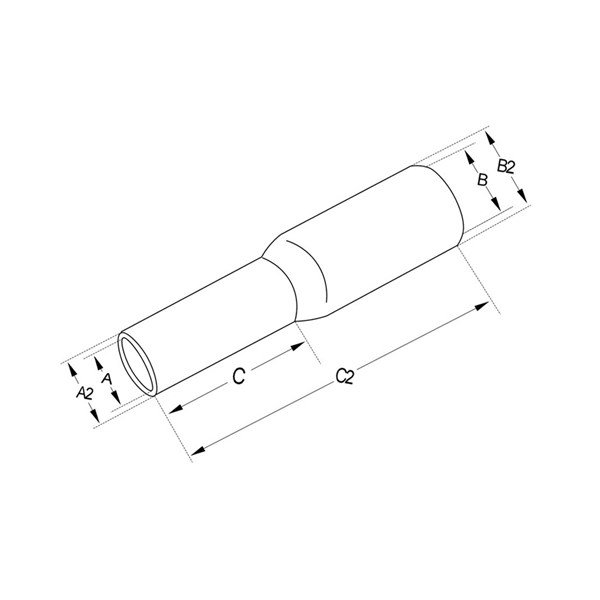

Dimensions
- Total: 1
| Product Description | A | B | B2 | A2 | C | C1 | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICE KS-CUT, 10mm2 SOLID – STRANDED WIRE | 4 mm | 6 mm | 8 mm | 5 mm | 14 mm | 32 mm | 100 . | pcs | 10 mm² |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| SPLICE KS-CUT, 10mm2 SOLID – STRANDED WIRE |
|
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Suitable for Class 1 conductor | Suitable for Class 2 conductor | Model | Number of branches | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Max Temp | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICE KS-CUT, 10mm2 SOLID – STRANDED WIRE | Yes | Yes | Standard version | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICE KS-CUT, 10mm2 SOLID – STRANDED WIRE | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Copper tube Splices | SKARVÖVERGÅNG, 10MM2 ENR2023V | KS10CUT10 |
Yes
|
|
|
- Total: 1
