Ringklockor
Långsamtslående signal, typ WGL1, WGL3

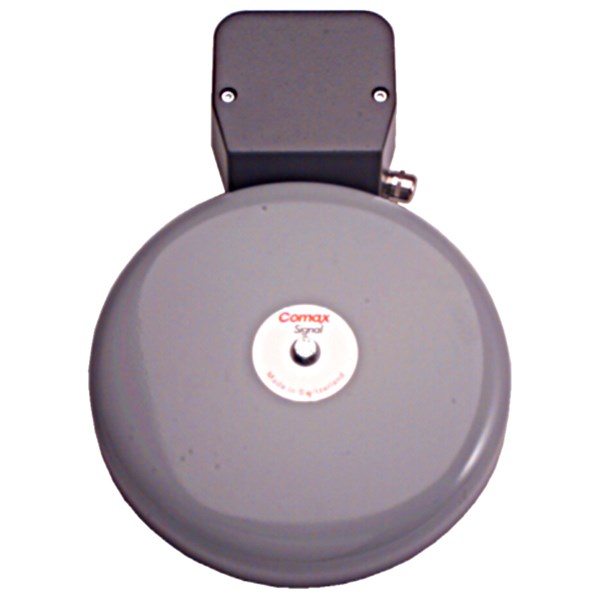

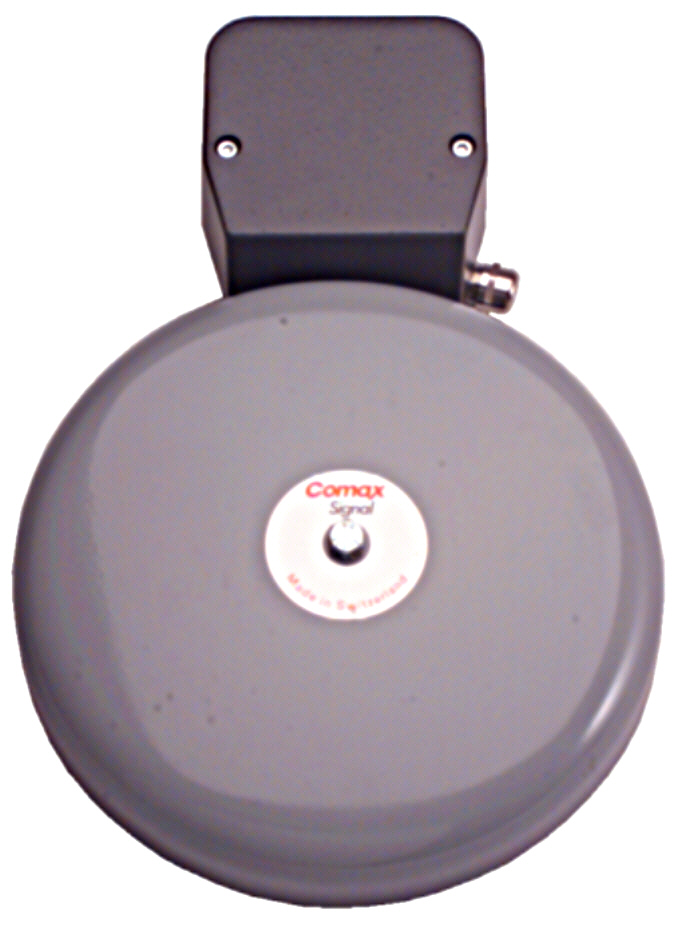

Kapslad ringklocka typ WGL1 + WGL3
För inom och utomhusmontage. Kapsling IP55 i grålackerad
aluminiumlegering. Med klang i stål. Försedd medkabelförskruvning
M20 x 1.5 mm. För kontinuerlig drift.
WGL1 klang D=150 mm Ljudtryck 105 dB (A) på 1 m.
WGL3 klang D=250 mm Ljudtryck 110 dB (A) på 1 m.
Andra spänningar på förfrågan
Technical properties
- Housing material:
- Metal
- Housing colour:
- Grey
- Nominal voltage:
- 230 V
- Type of current:
- AC
- Loudness:
- 110 dB, 105 dB
- Electricity consumption:
- 0.05 A
- Type of tone:
- Slow beat
- Degree of protection (IP):
- IP55
- Product Group:
- Ringklockor
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Nominal voltage | Electricity consumption | Availability | ||
|---|---|---|---|---|---|---|---|
| WGL1 230VAC 0.05A 150mm SLOW-STROKE 105dB IP55 | 1 . | pcs | 230 V | 0.05 A |
Yes
|
|
|
| WGL3 230 VAC 250mm SLOW-STROKE | 1 . | pcs | 230 V | 0.05 A |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| WGL1 230VAC 0.05A 150mm SLOW-STROKE 105dB IP55 | IP55 |
Yes
|
|
|
| WGL3 230 VAC 250mm SLOW-STROKE | IP55 |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Housing material | Housing colour | Nominal voltage | Type of current | Loudness | Electricity consumption | Type of tone | Degree of protection (IP) | Product Group | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WGL1 230VAC 0.05A 150mm SLOW-STROKE 105dB IP55 | Metal | Grey | 230 V | AC | 105 dB | 0.05 A | Slow beat | IP55 | Ringklockor |
Yes
|
|
|
| WGL3 230 VAC 250mm SLOW-STROKE | Metal | Grey | 230 V | AC | 110 dB | 0.05 A | Slow beat | IP55 | Ringklockor |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| WGL1 230VAC 0.05A 150mm SLOW-STROKE 105dB IP55 | EC001357 - Explosion proof alarm bell | 9.0 |
|
Bells | E5371650 |
Yes
|
|
|
| WGL3 230 VAC 250mm SLOW-STROKE | EC001357 - Explosion proof alarm bell | 9.0 |
|
Bells | 1723571701 |
No
|
|
|
- Total: 2
