Plintar (flatstift)
404-serien

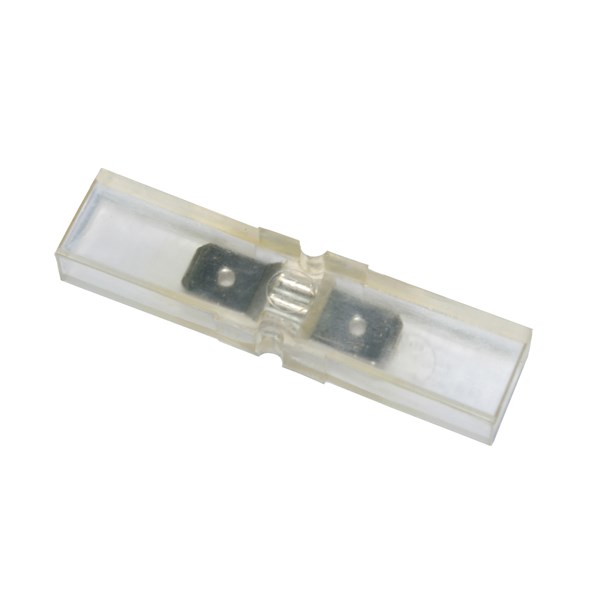

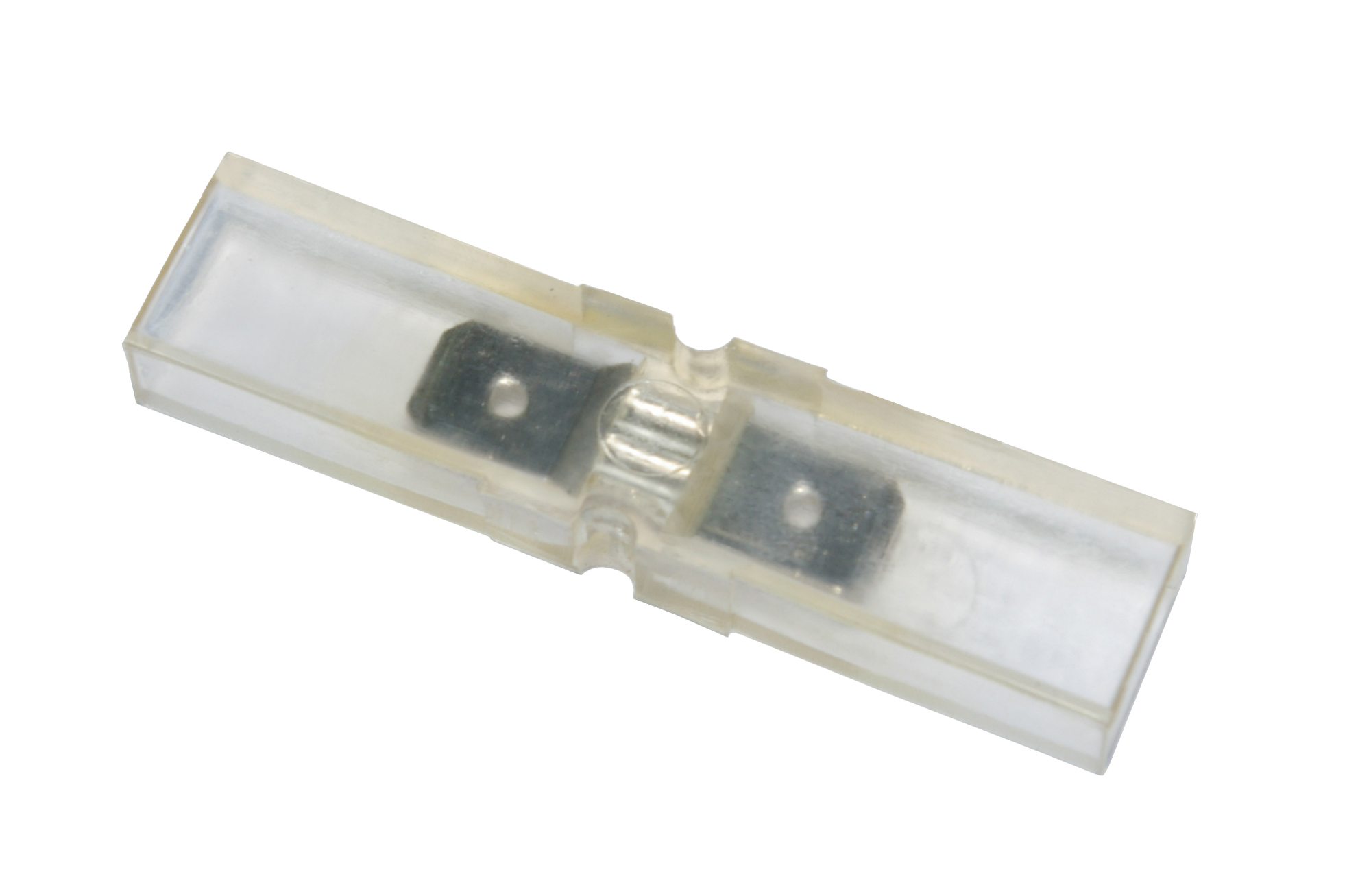

Kopplingsplintar med 6.3 x 0.8 mm flatstiftsanslutning.
Har längre isolering runt flatstiften.
Material: Polyamid
Färg: Natur
404-1: 1-polig
404-2: 2-polig
404-12: 12-polig
Technical properties
- Number of poles:
- 1 ., 12 .
- Rated voltage:
- 450 V
- Rated current In:
- 24 A
- Type of electrical connection 1:
- Flat plug-in connection
- Type of electrical connection 2:
- Flat plug-in connection
- Material insulation body:
- Thermoplastic
- Transparent:
- Yes
- Colour:
- Other, Cyan (blue-green)
- Inflammability class of insulation material according to with UL94:
- V0
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Rated voltage | Rated current In | Width/grid dimension | Height at lowest possible mounting height | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| TERMINAL STRIP 1-POL | 100 . | pcs | 450 V | 24 A | 12.12 mm | 7.7 mm | 51.15 mm |
No
|
|
|
| TERMINAL STRIP 12-POL | 10 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|
| TERMINAL STRIP 1-POL |
|
No
|
|
|
| TERMINAL STRIP 12-POL |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of poles | Rated voltage | Rated current In | Type of electrical connection 1 | Type of electrical connection 2 | Material insulation body | Transparent | Colour | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TERMINAL STRIP 1-POL | 1 . | 450 V | 24 A | Flat plug-in connection | Flat plug-in connection | Thermoplastic | Yes | Other, Cyan (blue-green) |
|
No
|
|
|
| TERMINAL STRIP 12-POL | 12 . | Flat plug-in connection | Flat plug-in connection | Thermoplastic | Yes | Cyan (blue-green) |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| TERMINAL STRIP 1-POL | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - TAB | KOPPLINGSPLINT 1-POL, | 404-1 | E0812830 |
No
|
|
|
| TERMINAL STRIP 12-POL | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - TAB | KOPPLINGSPLINT 12-POL | 404-12 |
Yes
|
|
|
- Total: 2
