Pin terminals N PL-series
Easy Entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_N PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 4
| Product Description | D | ID | L | N | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED PIN TERMINAL RED, 12x1.9mm | 2 mm | 4.1 mm | 22.5 mm | 10.5 mm | 100 . | pcs | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED PIN TERMINAL RED, 9x1.9mm | 2 mm | 4.1 mm | 19.5 mm | 10.5 mm | 100 . | pcs | 0.5-1.65 mm² |
No
|
|
|
| INSULATED PIN TERMINAL BLUE, 12x1.9mm | 2 mm | 4.5 mm | 23 mm | 11 mm | 100 . | pcs | 1.04-2.63 mm² |
Yes
|
|
|

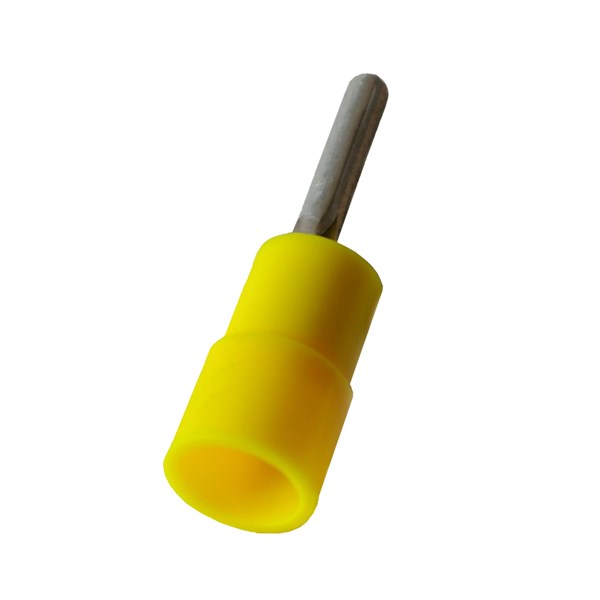

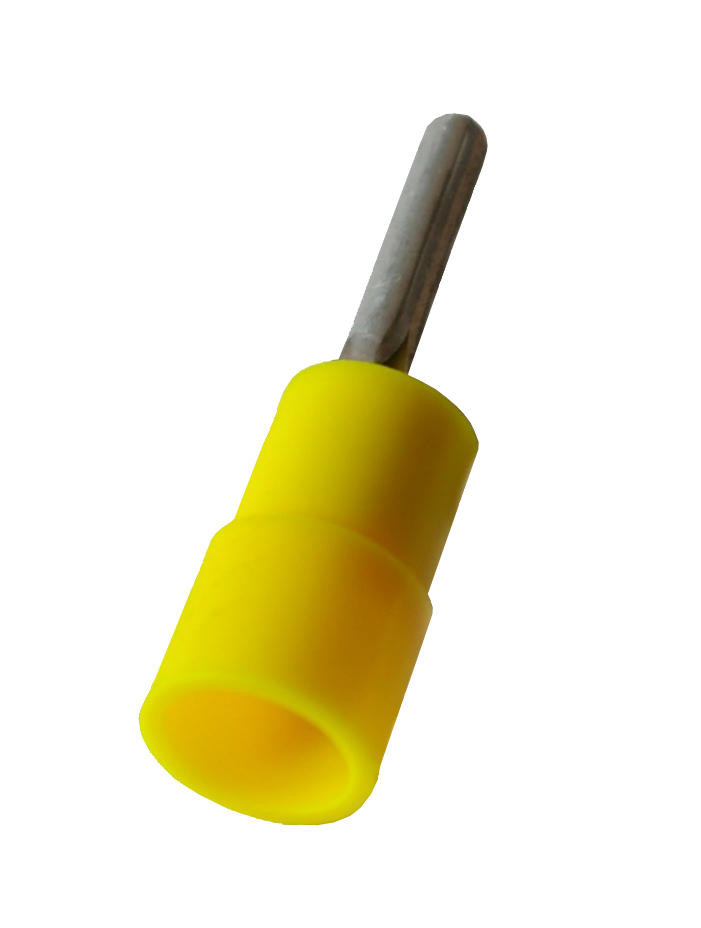

| INSULATED PIN TERMINAL YELLOW, 14x2.7mm | 2.7 mm | 6.6 mm | 27.5 mm | 14 mm | 100 . | pcs | 2.63-6.64 mm² |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED PIN TERMINAL RED, 12x1.9mm |
|
|
|
Yes
|
|
|
| INSULATED PIN TERMINAL RED, 9x1.9mm |
|
|
|
No
|
|
|
| INSULATED PIN TERMINAL BLUE, 12x1.9mm |
|
|
|
Yes
|
|
|
| INSULATED PIN TERMINAL YELLOW, 14x2.7mm |
|
|
|
No
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED PIN TERMINAL RED, 12x1.9mm | Yes | Yes | No | 19 A | Pin shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED PIN TERMINAL RED, 9x1.9mm | Yes | Yes | No | 19 A | Pin shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
| INSULATED PIN TERMINAL BLUE, 12x1.9mm | Yes | Yes | No | 27 A | Pin shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED PIN TERMINAL YELLOW, 14x2.7mm | Yes | Yes | No | 48 A | Pin shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED PIN TERMINAL RED, 12x1.9mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Pin Terminals - Polyamide | N1519SRPL |
Yes
|
|
|
| INSULATED PIN TERMINAL RED, 9x1.9mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Pin Terminals - Polyamide | N1519SR-9PL |
No
|
|
|
| INSULATED PIN TERMINAL BLUE, 12x1.9mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Pin Terminals - Polyamide | N2519SRPL |
Yes
|
|
|
| INSULATED PIN TERMINAL YELLOW, 14x2.7mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Pin Terminals - Polyamide | N4630SRPL |
No
|
|
|
