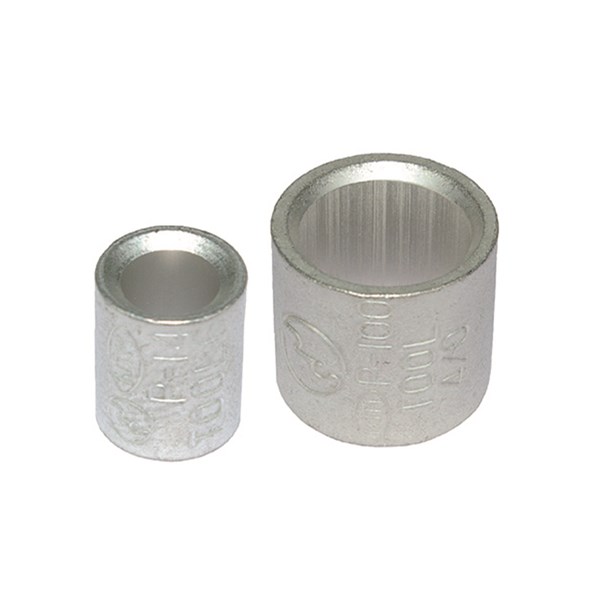

Parallellskarvar
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Tillverkad av rör.
Technical properties
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- 110 °C
- Material:
- Copper
- Packaging:
- Loose piece
Show more
Item List
- Total: 21
- Total: 21
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 21
| Product Description | Max. AWG-size | Min. AWG-size | ID | OD | L | MOQ | Unit | Nominal cross section | AWG-range | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSUATED PARALLEL SPLICE 0.32-1.31mm2 | 18 | 22 | 1.4 mm | 2.6 mm | 8 mm | 100 . | pcs | 0.32-1.31 mm² | 18-22 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 1.31-2.08mm2 | 14 | 16 | 2.3 mm | 4.1 mm | 8 mm | 100 . | pcs | 1.31-2.08 mm² | 14-16 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 1.5-2.5mm2 | 2.3 mm | 3.9 mm | 7 mm | 100 . | pcs | 1.5-2.5 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 2.5-4.0mm2 | 3 mm | 5 mm | 7 mm | 100 . | pcs | 2.5-4 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 3.31-5.27mm2 | 10 | 12 | 3.4 mm | 5.4 mm | 8.5 mm | 100 . | pcs | 3.31-5.27 mm² | 10-12 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 10mm2 | 8 | 8 | 4.5 mm | 7 mm | 9.5 mm | 100 . | pcs | 10 mm² | 8 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 16mm2 | 6 | 6 | 5.8 mm | 8.9 mm | 11 mm | 100 . | pcs | 16 mm² | 6 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 25mm2 | 4 | 4 | 7.7 mm | 11.3 mm | 13.5 mm | 100 . | pcs | 25 mm² | 4 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 35mm2 | 2 | 2 | 9.4 mm | 13.2 mm | 16.5 mm | 100 . | pcs | 35 mm² | 2 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 50mm2 | 11.4 mm | 15.3 mm | 19 mm | 100 . | pcs | 50 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 70mm2 | 13.3 mm | 17.5 mm | 19 mm | 100 . | pcs | 70 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 95mm2 | 14.5 mm | 19.5 mm | 19.5 mm | 100 . | pcs | 95 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 120mm2 | 16.4 mm | 22.1 mm | 20 mm | 100 . | pcs | 120 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 150mm2 | 19.5 mm | 26.4 mm | 27 mm | 50 . | pcs | 150 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 185mm2 | 21 mm | 28 mm | 28 mm | 25 . | pcs | 185 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 240mm2 | 24 mm | 32 mm | 32 mm | 25 . | pcs | 240 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 300mm2 | 28 mm | 36.4 mm | 36 mm | 25 . | pcs | 300 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 0.25-1.65mm2 | 16 | 22 | 1.7 mm | 3.3 mm | 8 mm | 100 . | pcs | 0.25-1.65 mm² | 16-22 . |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 0.25-1.65mm2 | 1.7 mm | 3.3 mm | 4 mm | 500 . | pcs | 0.25-1.65 mm² |
Yes
|
|
|
|||
| UNINSUATED PARALLEL SPLICE 185mm2 | 25 . | pcs | 185 mm² |
Yes
|
|
|
||||||
| UNINSUATED PARALLEL SPLICE 240mm2 | 25 . | pcs | 240 mm² |
Yes
|
|
|
- Total: 21
Similar Options
Approvals
- Total: 21
- Total: 21
Technical Properties
- Total: 21
| Product Description | Model | Number of branches | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Surface protection | Operating temperature | Material | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSUATED PARALLEL SPLICE 0.32-1.31mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 1.31-2.08mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 1.5-2.5mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 2.5-4.0mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 3.31-5.27mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 10mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 16mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 25mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 35mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 50mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 70mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 95mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 120mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 150mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 185mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 240mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 300mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 0.25-1.65mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 0.25-1.65mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 185mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 240mm2 | UL model | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
- Total: 21
Other information
- Total: 21
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSUATED PARALLEL SPLICE 0.32-1.31mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-0.5 | 04000 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 1.31-2.08mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-2 | 04001 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 1.5-2.5mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | 04001ESPA |
Yes
|
|
|
|
| UNINSUATED PARALLEL SPLICE 2.5-4.0mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | 04002 |
Yes
|
|
|
|
| UNINSUATED PARALLEL SPLICE 3.31-5.27mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-5.5 | 04003 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 10mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-8 | 04004 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 16mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-14 | 04005 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 25mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-22 | 04006 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 35mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-38 | 04007 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 50mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-60 | 04008 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 70mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-70 | 04009 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 95mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-80 | 04010 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 120mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-100 | 04011 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 150mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-150 | 04012 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 185mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-180 | 04013 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 240mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-200 | 04014 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 300mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-325 | 04015 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 0.25-1.65mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | NICHIFU, P-1.25 | 04016 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 0.25-1.65mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | 23049100 , P-1.25 L-4 | 04016-4 |
Yes
|
|
|
| UNINSUATED PARALLEL SPLICE 185mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | B185PSK |
Yes
|
|
|
|
| UNINSUATED PARALLEL SPLICE 240mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Parallel splices | B240PSK |
Yes
|
|
|
- Total: 21
