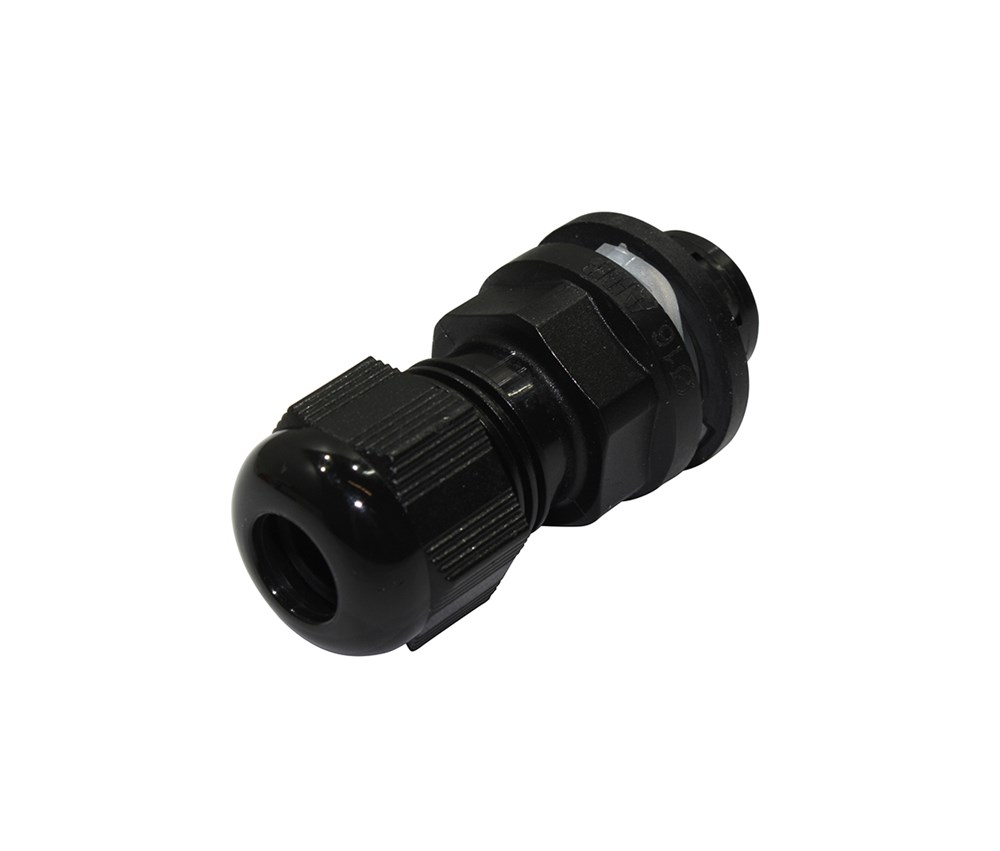

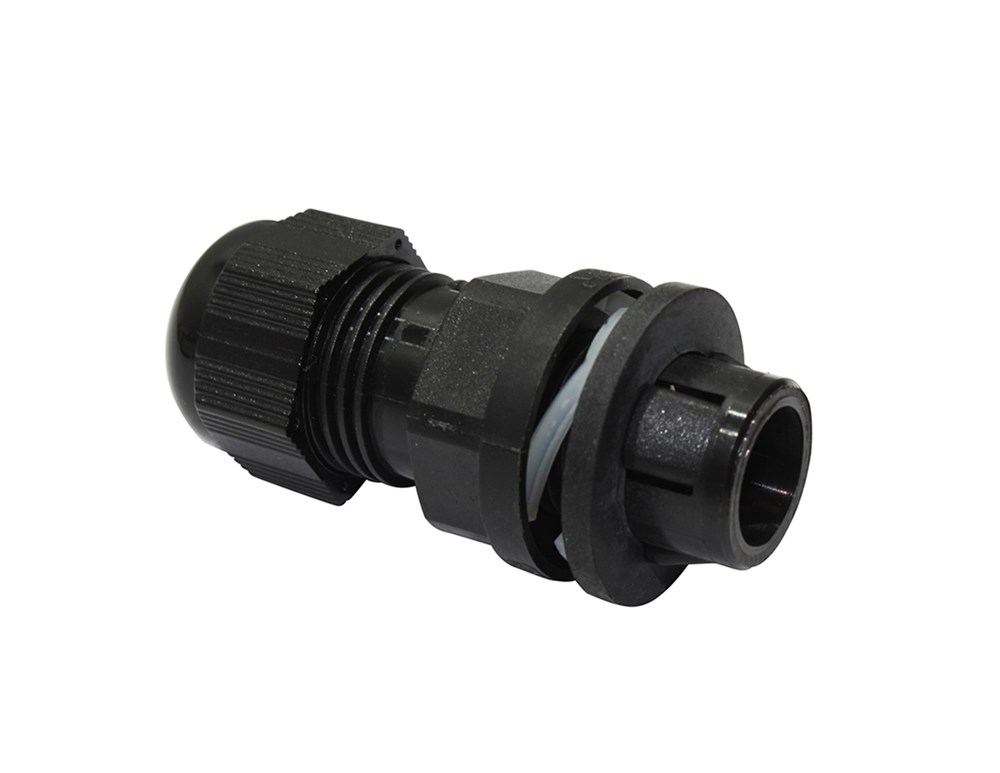

NQC - Snap-In förskruvning
Snap-In förskruvning utan gänga.Enkel att montera, tryck i hop förskruvningen och vrid kroppen medsols.För väggtjocklek: 0.5-4.0mmMaterial:
Kropp och topp: PA 6,Packningen: KloroprenTätningen: KloroprenUL94 V2Färger: Svart (RAL 9005) och Ljusgrå (RAL 7035)Godkännanden:
Godkännande:
Certifikatnummer
Standard
VDE
134171
DIN EN 62444
CSA
115116_0_000
CSA C22.2
UL
E199260
UL514BCSA22.2 No 18.3-12CSA22.2 No 94.2-15
Type 4X
UL50E
UV
SERCOV AM RES 107572
UL514B §8.26.7
DNV-GL
E-14046
EN62444
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 9005 ., 7035 .
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- Yes
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Black, Grey
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 10
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M16, 5-10mm | 500 . | pcs | 5-10 mm | 16 . | Other |
Yes
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M16, 5-10mm | 500 . | pcs | 5-10 mm | 16 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 6-12mm | 500 . | pcs | 6-12 mm | 20 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 6-12mm | 500 . | pcs | 6-12 mm | 20 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 7-13mm | 250 . | pcs | 7-13 mm | 20 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 7-13mm | 250 . | pcs | 7-13 mm | 20 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M25, 11-17mm | 150 . | pcs | 11-17 mm | 25 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M25, 11-17mm | 150 . | pcs | 11-17 mm | 25 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M32, 15-21mm | 100 . | pcs | 15-21 mm | 32 . | Other |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M32, 15-21mm | 100 . | pcs | 15-21 mm | 32 . | Other |
No
|
|
|
- Total: 10
Similar Options
Approvals
- Total: 10
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M16, 5-10mm | IP68 |
Yes
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M16, 5-10mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 6-12mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 6-12mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 7-13mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 7-13mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M25, 11-17mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M25, 11-17mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M32, 15-21mm | IP68 |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M32, 15-21mm | IP68 |
No
|
|
|
- Total: 10
Technical Properties
- Total: 10
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Material | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | Plastic | Yes |
Yes
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 7-13mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 7-13mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M25, 11-17mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M25, 11-17mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M32, 15-21mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | Plastic | Yes |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M32, 15-21mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | Plastic | Yes |
No
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M16, 5-10mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M16B |
Yes
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M16, 5-10mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M16G |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 6-12mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M201B |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 6-12mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M201G |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M20, 7-13mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M20B |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M20, 7-13mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M20G |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M25, 11-17mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M25B |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M25, 11-17mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M25G |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, BLACK, NYLON M32, 15-21mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M32B |
No
|
|
|
| CABLE GLAND, QUICK-CONNECT, GREY, NYLON M32, 15-21mm | EC000441 - Cable gland | 9.0 | Plastic, standard | NQC-M32G |
No
|
|
|
- Total: 10
