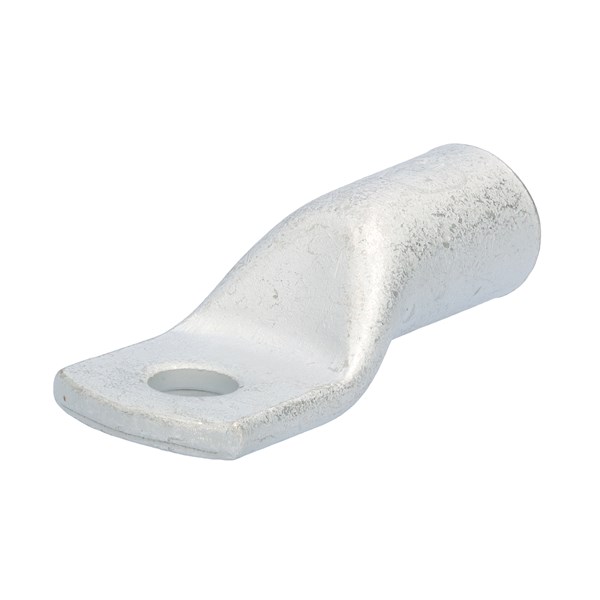

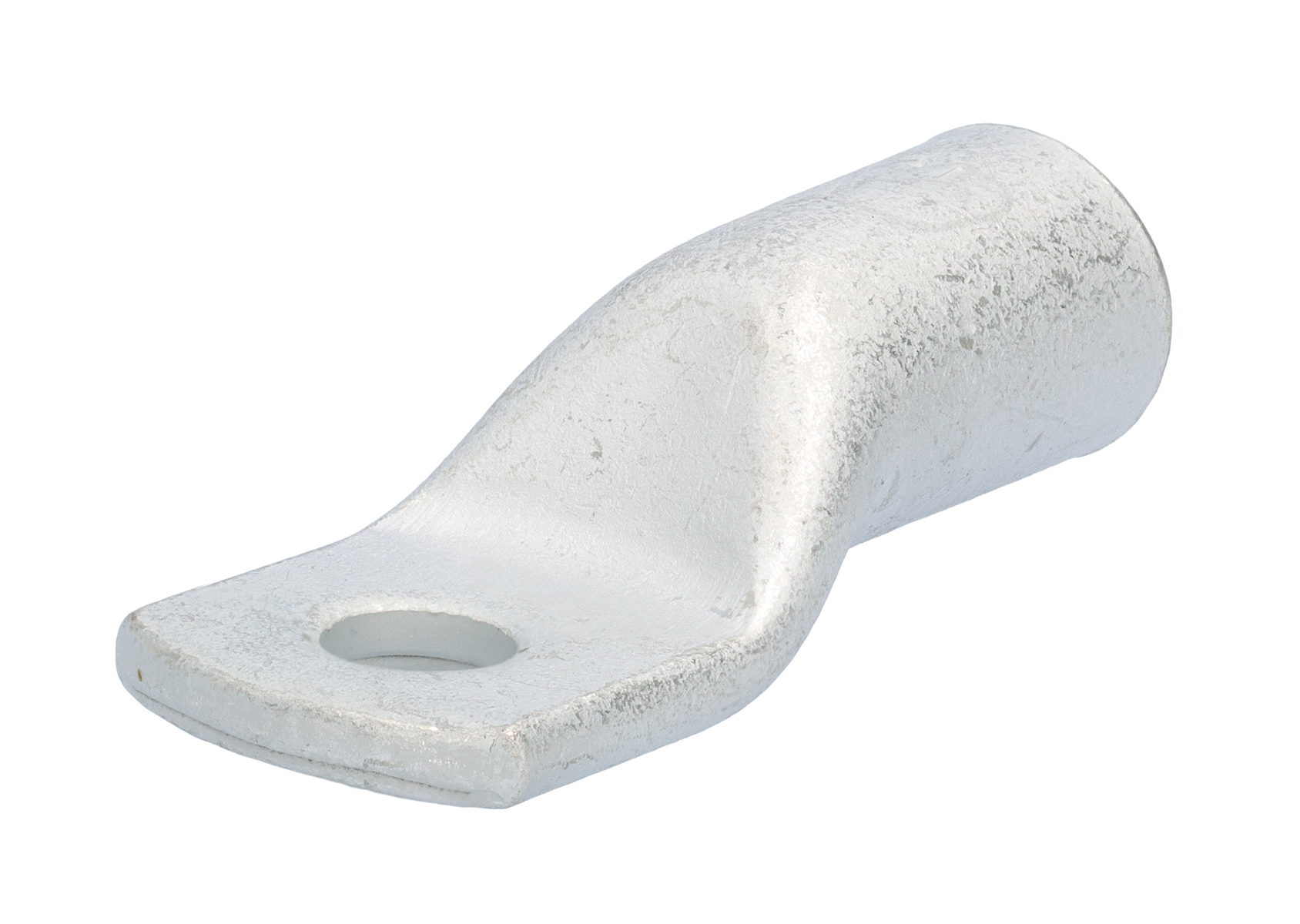

KRT 10-400mm² without inspection hole
Meets the measure requirements according to DIN 46235. Copper tube lugs for stranded (class 5 and class 6) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs neck can for ie be: 12
12 = Outside diameter of the neck (F).
When crimping with hexagon dies neck inscription and die markings must conform.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Insulated:
- No
- Max. current (Imax):
- 66 A, 124 A, 153 A, 190 A, 227 A, 288 A, 97 A
- Number of mounting holes:
- 1 .
- Flange shape:
- Ring shape
- Colour insulation:
- Other
- Slender flange model:
- No
- With sight-hole:
- No
- Conductor category:
- Several
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 180° (horizontal)
- Series:
- KRT/KST(10-500mm2)
Show more
Item List
- Total: 22
- Total: 22
Accessories
Related products
Spare Parts
Product video
Documents

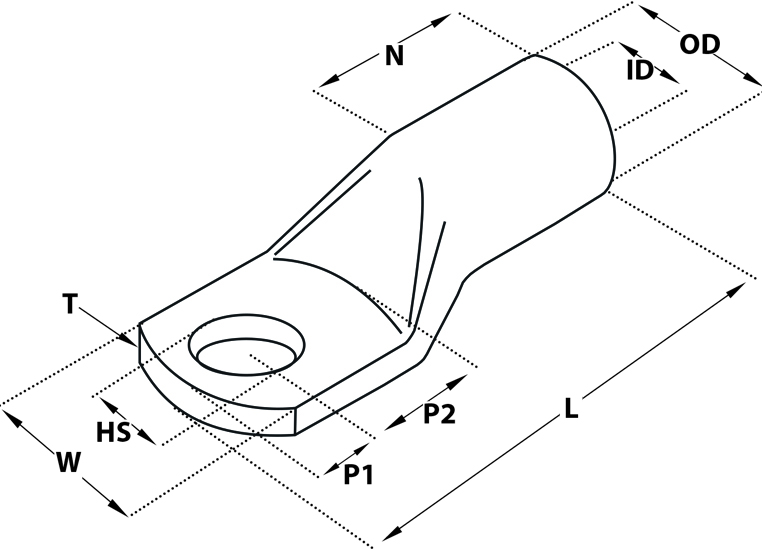

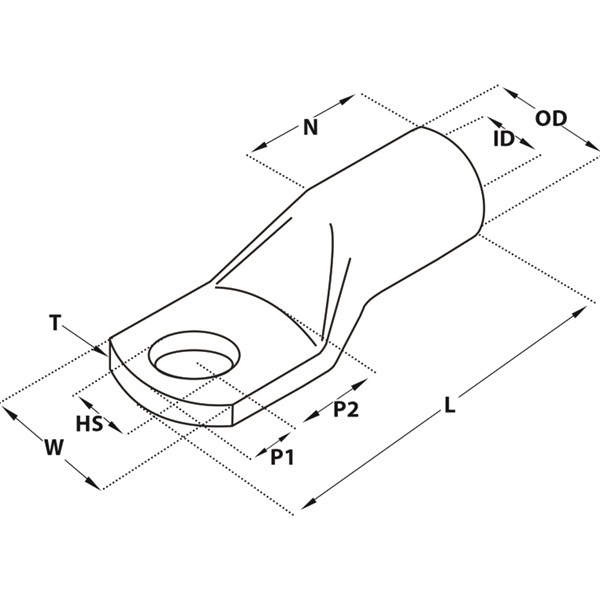

Dimensions
- Total: 22
| Product Description | HS | ID | OD | T | P1 | P2 | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRT - NO INSPECTION HOLE 10mm2, M6 | 6.5 mm | 4.5 mm | 7 mm | 2.1 mm | 6 mm | 8 mm | 29 mm | 10 mm | 11 mm | 100 . | pcs | 6 . | 10 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 10mm2, M8 | 8.5 mm | 4.5 mm | 7 mm | 1.8 mm | 6.5 mm | 11 mm | 34 mm | 10 mm | 13.5 mm | 100 . | pcs | 8 . | 10 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M4 | 100 . | pcs |
Yes
|
|
|
|||||||||||
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M6 | 6.5 mm | 5.5 mm | 8.5 mm | 3 mm | 6.5 mm | 8.5 mm | 34 mm | 13 mm | 12 mm | 100 . | pcs | 6 . | 16 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M8 | 8.5 mm | 5.5 mm | 8.5 mm | 2.4 mm | 6.5 mm | 11.5 mm | 37 mm | 13 mm | 15 mm | 100 . | pcs | 8 . | 16 mm² |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M6 | 6.5 mm | 7 mm | 10 mm | 3 mm | 7 mm | 10 mm | 40.5 mm | 15 mm | 14 mm | 100 . | pcs | 6 . | 25 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M10 | 10.5 mm | 5.5 mm | 8.5 mm | 2.2 mm | 8.5 mm | 11.5 mm | 39 mm | 13 mm | 16 mm | 100 . | pcs | 10 . | 16 mm² |
Yes
|
|
|
| CABLE LUG KRT 25mm2, M8. UTAN INSP. HÅL | 8.5 mm | 7 mm | 10 mm | 3 mm | 7 mm | 10 mm | 43.5 mm | 15 mm | 15 mm | 100 . | pcs | 8 . | 25 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M10 | 10.5 mm | 7 mm | 10 mm | 2.7 mm | 9 mm | 11.5 mm | 43.5 mm | 15 mm | 17 mm | 100 . | pcs | 10 . | 25 mm² |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M16 | 17 mm | 7 mm | 10 mm | 1.7 mm | 57 mm | 15 mm | 25 mm | 100 . | pcs | 16 . | 25 mm² |
Yes
|
|
|
||
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M6 | 6.5 mm | 8.5 mm | 12 mm | 3.5 mm | 8.5 mm | 12 mm | 45 mm | 16 mm | 17 mm | 100 . | pcs | 6 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M8 | 8.5 mm | 8.5 mm | 12 mm | 3.5 mm | 8.5 mm | 12 mm | 45 mm | 16 mm | 17 mm | 100 . | pcs | 8 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M10 | 10.5 mm | 8.5 mm | 12 mm | 3.1 mm | 10.5 mm | 12 mm | 45 mm | 16 mm | 19 mm | 100 . | pcs | 10 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M8 | 8.5 mm | 10 mm | 14 mm | 4 mm | 10.5 mm | 14.5 mm | 53 mm | 20 mm | 20 mm | 50 . | pcs | 8 . | 50 mm² |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M10 | 10.5 mm | 10 mm | 14 mm | 4 mm | 10.5 mm | 14.5 mm | 53 mm | 20 mm | 20 mm | 50 . | pcs | 10 . | 50 mm² |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M6 | 6.5 mm | 10 mm | 14 mm | 4 mm | 10.5 mm | 14.5 mm | 53 mm | 20 mm | 20 mm | 50 . | pcs | 6 . | 50 mm² |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M12 | 13 mm | 10 mm | 14 mm | 3.5 mm | 56 mm | 20 mm | 22 mm | 50 . | pcs | 12 . | 50 mm² |
Yes
|
|
|
||
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M16 | 50 . | pcs |
Yes
|
|
|
|||||||||||
| CABLE LUG KRT - NO INSPECTION HOLE 70mm2, M8 | 8.5 mm | 12 mm | 16 mm | 4 mm | 55 mm | 21 mm | 23 mm | 50 . | pcs | 8 . | 70 mm² |
Yes
|
|
|
||
| CABLE LUG KRT - NO INSPECTION HOLE 70mm2, M10 | 10.5 mm | 12 mm | 16 mm | 4 mm | 55 mm | 21 mm | 23 mm | 50 . | pcs | 10 . | 70 mm² |
Yes
|
|
|
||
| CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M8 | 8.5 mm | 13.5 mm | 18 mm | 4.5 mm | 60 mm | 24 mm | 26 mm | 50 . | pcs | 8 . | 95 mm² |
Yes
|
|
|
||
| CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M10 | 10.5 mm | 13.5 mm | 18 mm | 4.5 mm | 60 mm | 24 mm | 26 mm | 50 . | pcs | 10 . | 95 mm² |
Yes
|
|
|
- Total: 22
Similar Options
Approvals
- Total: 22
- Total: 22
Technical Properties
- Total: 22
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Insulated | Max. current (Imax) | Number of mounting holes | Flange shape | Colour insulation | Slender flange model | With sight-hole | Conductor category | Max Temp | Surface protection | Material | Connecting angle | Series | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRT - NO INSPECTION HOLE 10mm2, M6 | Yes | Yes | No | 66 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 10mm2, M8 | Yes | Yes | No | 66 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M4 | Yes | Yes | 150 °C | Tinned |
Yes
|
|
|
|||||||||||
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M6 | Yes | Yes | No | 97 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M8 | Yes | Yes | No | 97 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M6 | Yes | Yes | No | 124 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M10 | Yes | Yes | No | 97 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT 25mm2, M8. UTAN INSP. HÅL | Yes | Yes | No | 124 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M10 | Yes | Yes | No | 124 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M16 | Yes | Yes | No | 124 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M6 | Yes | Yes | No | 153 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M8 | Yes | Yes | No | 153 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M10 | Yes | Yes | No | 153 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M8 | Yes | Yes | No | 190 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M10 | Yes | Yes | No | 190 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M6 | Yes | Yes | No | 190 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M12 | Yes | Yes | No | 190 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M16 | Yes | Yes | No | 190 A | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 70mm2, M8 | Yes | Yes | No | 227 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 70mm2, M10 | Yes | Yes | No | 227 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M8 | Yes | Yes | No | 288 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M10 | Yes | Yes | No | 288 A | 1 . | Ring shape | Other | No | No | Several | 150 °C | Tinned | Copper | 180° (horizontal) | KRT/KST(10-500mm2) |
Yes
|
|
|
- Total: 22
Other information
- Total: 22
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRT - NO INSPECTION HOLE 10mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT10-6UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 10mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT10-8UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M4 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT16-4UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT16-6UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT16-8UI |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT25-6UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT16-10UI |
Yes
|
|
|
| CABLE LUG KRT 25mm2, M8. UTAN INSP. HÅL | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT25-8UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT25-10UI |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 25mm2, M16 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT25-16UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT35-6UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT35-8UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 35mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT35-10UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT50-8UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT50-10UI |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT50-6UI |
No
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT50-12UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 50mm2, M16 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT50-16UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 70mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT70-8UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 70mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT70-10UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT95-8UI |
Yes
|
|
|
| CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKV2023ERIK | KRT95-10UI |
Yes
|
|
|
- Total: 22
