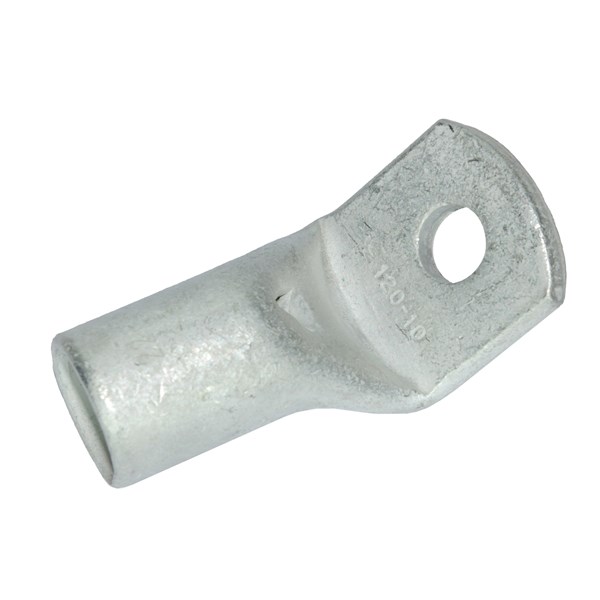

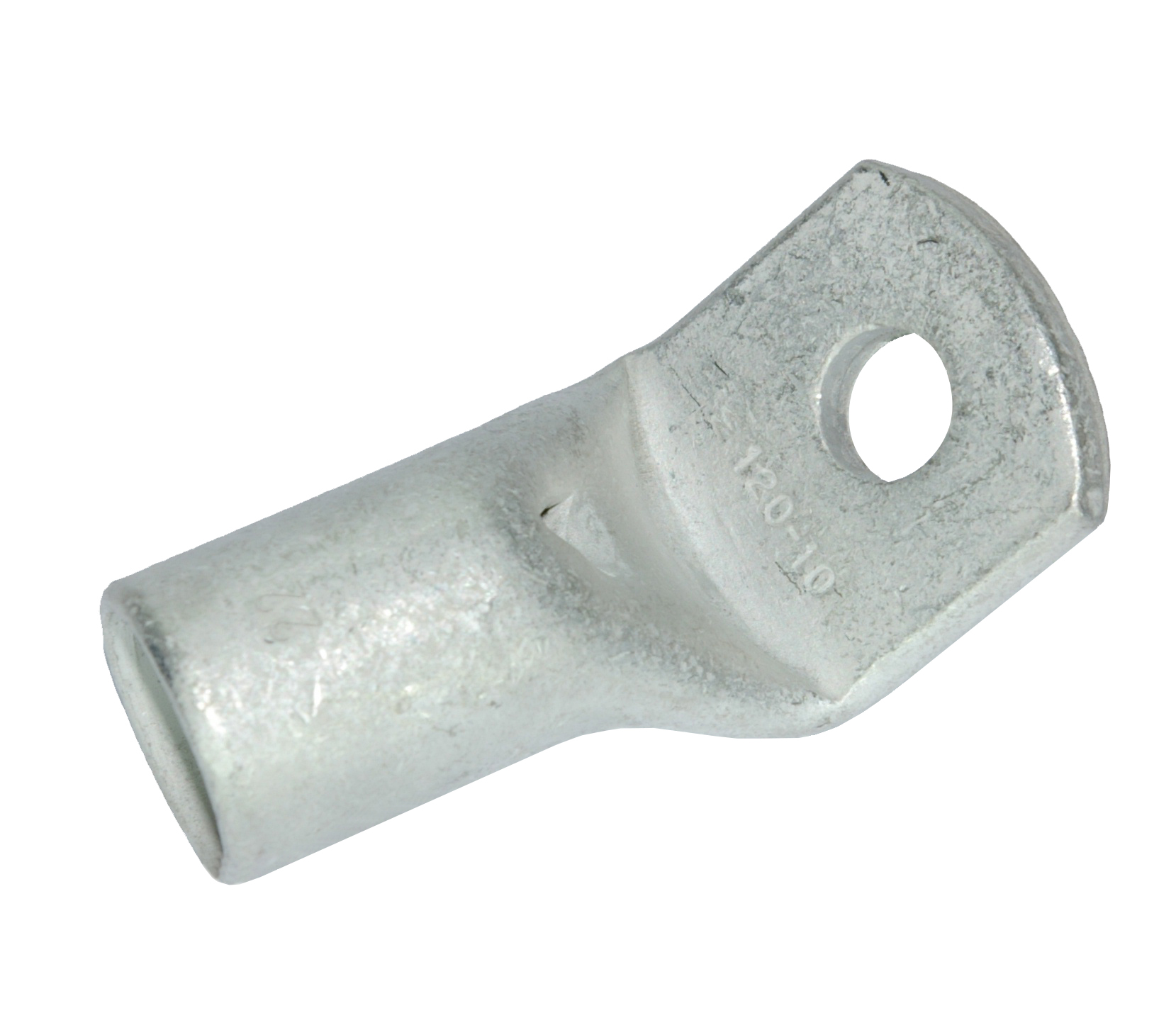

KRF - Cable lugs angled +45º
For stranded wires. (class 5 and class 6)
Material: 99.9% pure copper
Surface: > 4µ Sn
Temperature range: Up to 200° C (392º F)
Inscriptions on the lugs palm can for ie be: n35-12F
n = nemiq // 35 = 35 wire // 12 = M12 stud size. // F = KRF, D= KRD, T = KRT
Inscriptions on the lugs neck can for ie be: 13
13 = Outside diameter of the neck (OD).
When crimping with hexagon dies neck inscription and die markings must conform.
Technical properties
- Suitable for Class 5 conductor:
- Yes
- Suitable for Class 6 conductor:
- Yes
- Insulated:
- No
- Max. current (Imax):
- 334 A, 395 A, 153 A, 842 A, 227 A, 288 A
- Number of mounting holes:
- 1 .
- Flange shape:
- Ring shape
- Colour insulation:
- Other
- Slender flange model:
- No
- With sight-hole:
- Yes
- Conductor category:
- Several
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 45°
- Series:
- KRF/KSF (10-500mm2)
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 10

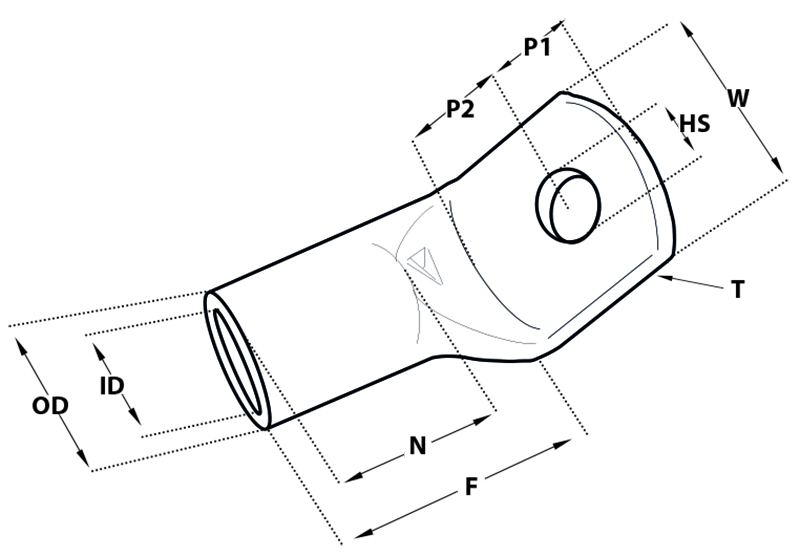

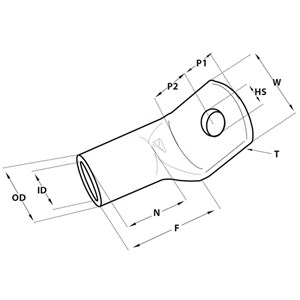

| Product Description | HS | ID | OD | F | T | P1 | P2 | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRF, +45GR 35mm2, M8 | 8.5 mm | 9 mm | 13 mm | 25 mm | 4 mm | 12 mm | 14 mm | 18.5 mm | 100 . | pcs | 8 . | 35 mm² |
Yes
|
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M8 | 8.5 mm | 15 mm | 20 mm | 36 mm | 4.8 mm | 15 mm | 17 mm | 23 mm | 29 mm | 50 . | pcs | 8 . | 95 mm² |
Yes
|
|
|
| CABLE LUG KRF, +45GR 35mm2, M10 | 10.5 mm | 9 mm | 13 mm | 25 mm | 4 mm | 12 mm | 14 mm | 18.5 mm | 100 . | pcs | 10 . | 35 mm² |
No
|
|
|
|
| CABLE LUG KRF, +45GR 50mm2, M10 | 10.5 mm | 11 mm | 14.5 mm | 30 mm | 3.5 mm | 10 mm | 17 mm | 21 mm | 50 . | pcs | 10 . | 50 mm² |
Yes
|
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M8 | 8.5 mm | 13 mm | 17 mm | 37 mm | 4 mm | 11 mm | 20 mm | 24.5 mm | 50 . | pcs | 8 . | 70 mm² |
Yes
|
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M12 | 13 mm | 13 mm | 17 mm | 34 mm | 4 mm | 14 mm | 20 mm | 24.5 mm | 50 . | pcs | 12 . | 70 mm² |
Yes
|
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M12 | 13 mm | 15 mm | 20 mm | 36 mm | 4.8 mm | 17 mm | 17 mm | 23 mm | 29 mm | 50 . | pcs | 12 . | 95 mm² |
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M10 | 10.5 mm | 17 mm | 22 mm | 40 mm | 5 mm | 17 mm | 25 mm | 32 mm | 25 . | pcs | 10 . | 120 mm² |
Yes
|
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M12 | 13 mm | 17 mm | 22 mm | 40 mm | 5 mm | 17 mm | 25 mm | 32 mm | 25 . | pcs | 12 . | 120 mm² |
Yes
|
|
|
|
| CABLE LUG KRF, +45GR 150mm2, M12 | 0 mm | 17.5 mm | 25 . | pcs | 12 . | 150 mm² |
Yes
|
|
|
- Total: 10
Similar Options
Approvals
- Total: 10
| Product Description | Approved according to CE | Approved according to DNV | Availability | ||
|---|---|---|---|---|---|
| CABLE LUG KRF, +45GR 35mm2, M8 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M8 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 35mm2, M10 |
|
|
No
|
|
|
| CABLE LUG KRF, +45GR 50mm2, M10 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M8 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M12 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M12 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M10 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M12 |
|
|
Yes
|
|
|
| CABLE LUG KRF, +45GR 150mm2, M12 |
|
|
Yes
|
|
|
- Total: 10
Technical Properties
- Total: 10
| Product Description | Suitable for Class 5 conductor | Suitable for Class 6 conductor | Insulated | Max. current (Imax) | Number of mounting holes | Flange shape | Colour insulation | Slender flange model | With sight-hole | Conductor category | Max Temp | Surface protection | Material | Connecting angle | Series | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRF, +45GR 35mm2, M8 | Yes | Yes | No | 153 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M8 | Yes | Yes | No | 288 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 35mm2, M10 | Yes | Yes | No | 153 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
No
|
|
|
| CABLE LUG KRF, +45GR 50mm2, M10 | Yes | Yes | No | 842 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M8 | Yes | Yes | No | 227 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M12 | Yes | Yes | No | 227 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M12 | Yes | Yes | No | 288 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M10 | Yes | Yes | No | 334 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M12 | Yes | Yes | No | 334 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
| CABLE LUG KRF, +45GR 150mm2, M12 | Yes | Yes | No | 395 A | 1 . | Ring shape | Other | No | Yes | Several | 150 °C | Tinned | Copper | 45° | KRF/KSF (10-500mm2) |
Yes
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRF, +45GR 35mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 35-8+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 95-8+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 35mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 35-10+45GR |
No
|
|
|
| CABLE LUG KRF, +45GR 50mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 50-10+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 70-8+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 70mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 70-12+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 95mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 95-12+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 120-10+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 120mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 120-12+45GR |
Yes
|
|
|
| CABLE LUG KRF, +45GR 150mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs, angled | 150-12+45GR |
Yes
|
|
|
- Total: 10
