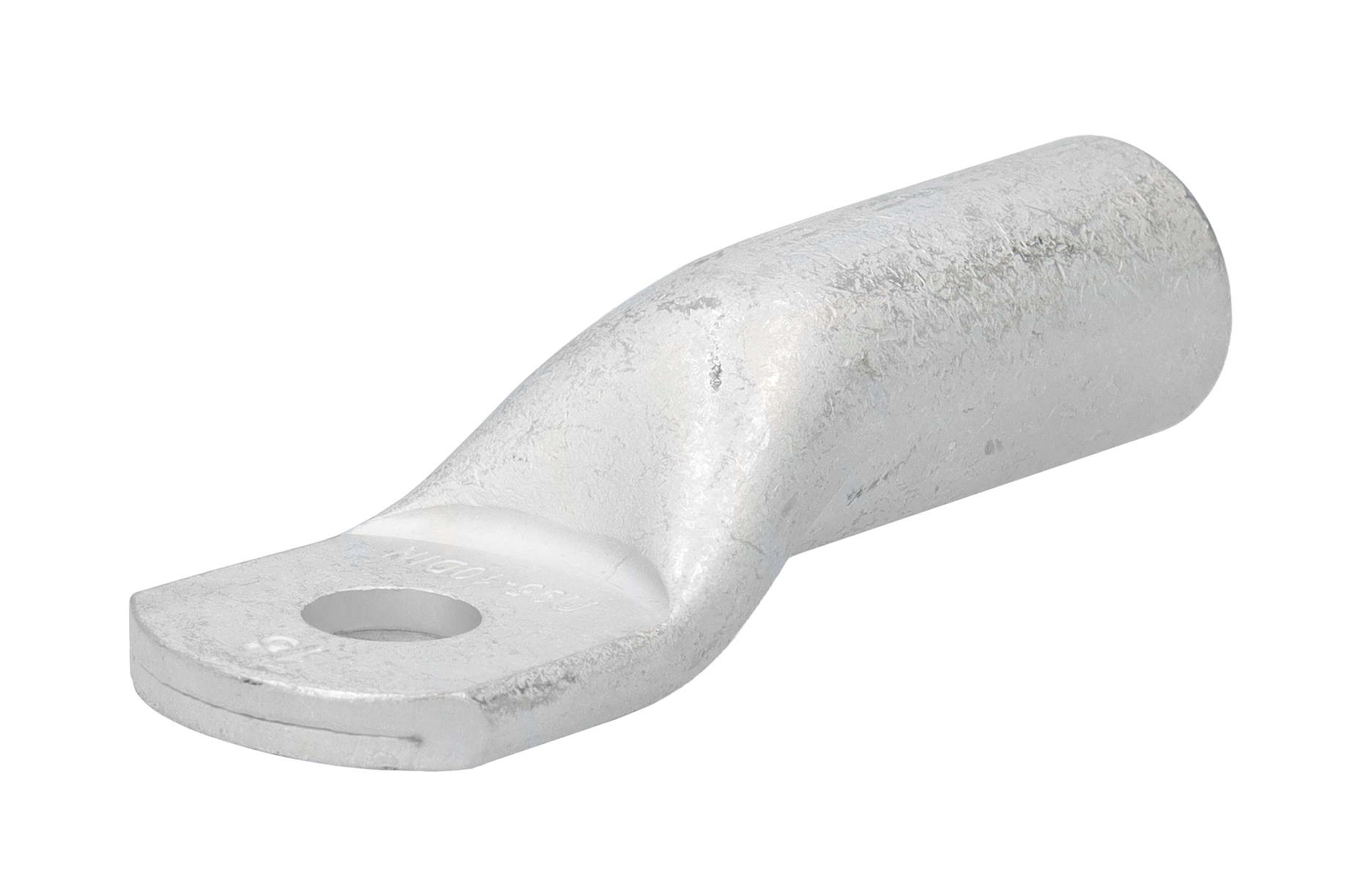

KRDIN - 10-630mm² without inspection hole
Cable lugs according to DIN 46235. Suitable for multi-stranded conductors (class 2 and class 5).
Material: 99.9% pure Cu
Surface: > 4µ Sn
Marking on the flat of the tube cable lug can be, for example: n35-12DIN
n = Nemiq // 35 = 35 mm² cable // 12 = M12 hole // DIN = DIN46235

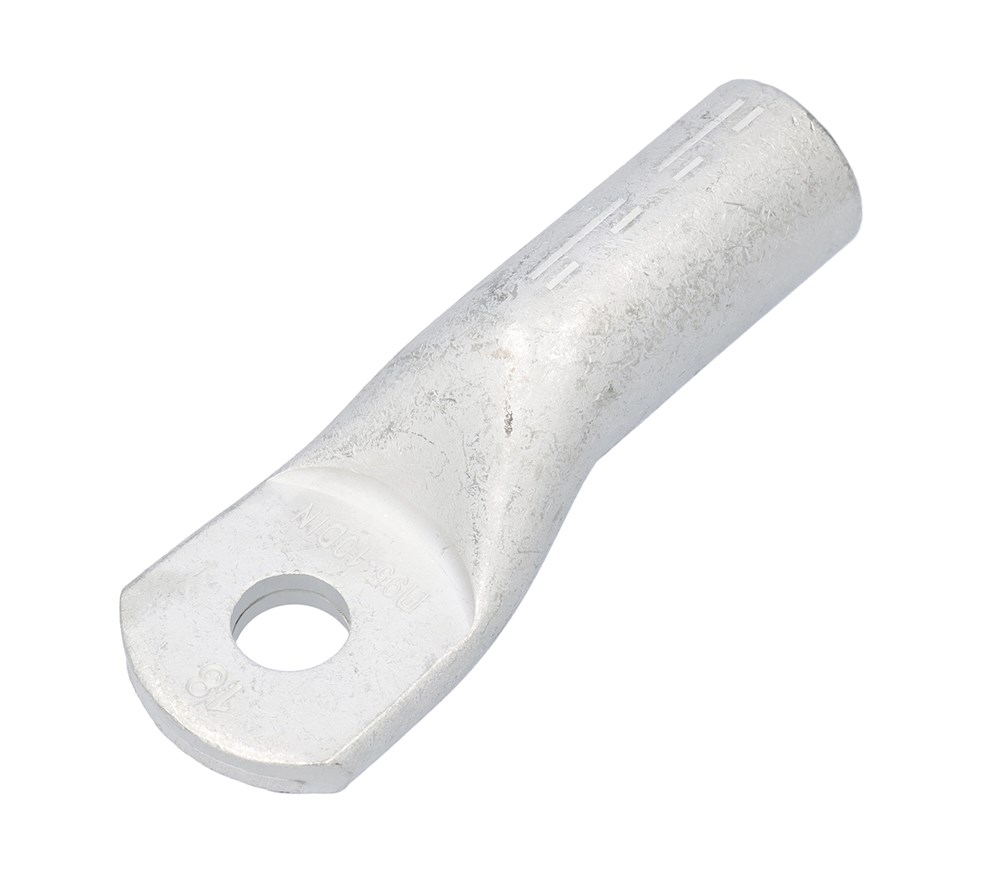

Marking is found on the neck of the cable lug as an indication of how they should be crimped.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Insulated:
- No
- Number of mounting holes:
- 1 .
- Flange shape:
- Ring shape
- Colour insulation:
- Other
- Slender flange model:
- No
- With sight-hole:
- No
- Conductor category:
- Several
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 180° (horizontal)
Show more
Item List
- Total: 41
- Total: 41
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity KRDIN CUT from 10mm2 to 630mm2

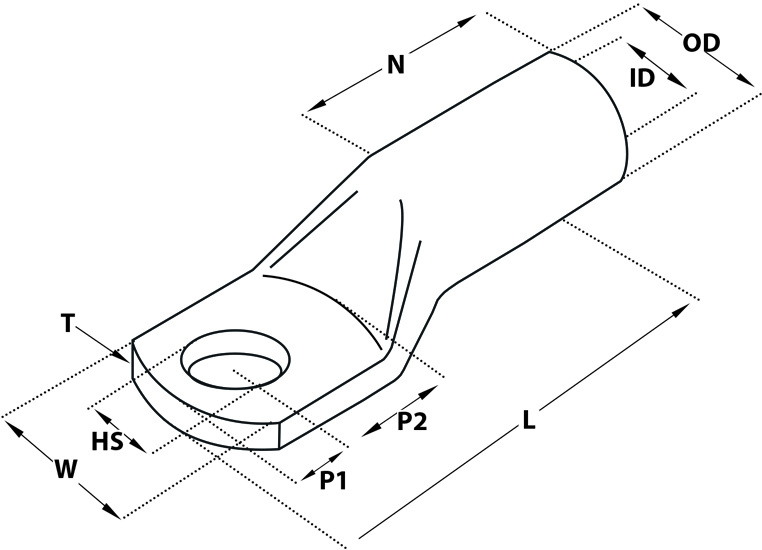

Dimensions
- Total: 41
| Product Description | HS | ID | OD | T | P1 | P2 | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRDIN 10mm2, M10 | 10.5 mm | 4.5 mm | 6 mm | 0.9 mm | 10 mm | 11 mm | 10 mm | 14 mm | 100 . | pcs | 10 . | 10 mm² |
Yes
|
|
|
|
| CABLE LUG KRDIN 10mm2, M4 | 4.3 mm | 4.5 mm | 6 mm | 1.4 mm | 7 mm | 8 mm | 10 mm | 9 mm | 100 . | pcs | 4 . | 10 mm² |
Yes
|
|
|
|
| CABLE LUG KRDIN 10mm2, M5 | 5.3 mm | 4.5 mm | 6 mm | 1.4 mm | 8 mm | 8 mm | 36 mm | 10 mm | 9 mm | 100 . | pcs | 5 . | 10 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M6 | 6.4 mm | 4.5 mm | 6 mm | 1.4 mm | 9.5 mm | 9 mm | 37.5 mm | 10 mm | 9 mm | 100 . | pcs | 6 . | 10 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M8 | 8.4 mm | 4.5 mm | 6 mm | 1 mm | 10 mm | 11 mm | 40 mm | 10 mm | 13 mm | 100 . | pcs | 8 . | 10 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M10 | 10.5 mm | 5.5 mm | 8.5 mm | 1.9 mm | 14 mm | 12 mm | 51 mm | 20 mm | 17 mm | 100 . | pcs | 10 . | 16 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M12 | 13 mm | 5.5 mm | 8.5 mm | 1.9 mm | 14 mm | 14 mm | 51 mm | 20 mm | 17 mm | 100 . | pcs | 12 . | 16 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M5 | 5.3 mm | 5.5 mm | 8.5 mm | 2.5 mm | 9.5 mm | 9 mm | 20 mm | 13 mm | 100 . | pcs | 5 . | 16 mm² |
Yes
|
|
|
|
| CABLE LUG KRDIN 16mm2, M6 | 6.4 mm | 5.5 mm | 8.5 mm | 2.5 mm | 9.5 mm | 9 mm | 46.5 mm | 20 mm | 13 mm | 100 . | pcs | 6 . | 16 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M8 | 8.4 mm | 5.5 mm | 8.5 mm | 2.5 mm | 12 mm | 11 mm | 49 mm | 20 mm | 13 mm | 100 . | pcs | 8 . | 16 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M10 | 10.5 mm | 7 mm | 10 mm | 2.3 mm | 14 mm | 12 mm | 53 mm | 20 mm | 17 mm | 100 . | pcs | 10 . | 25 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M12 | 13 mm | 7 mm | 10 mm | 2 mm | 15 mm | 13 mm | 54 mm | 20 mm | 19 mm | 100 . | pcs | 12 . | 25 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M6 | 6.4 mm | 7 mm | 10 mm | 2.8 mm | 9.5 mm | 9 mm | 48.5 mm | 20 mm | 14 mm | 100 . | pcs | 6 . | 25 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M8 | 8.4 mm | 7 mm | 10 mm | 2.4 mm | 12 mm | 11 mm | 51 mm | 20 mm | 16 mm | 100 . | pcs | 8 . | 25 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M10 | 10.5 mm | 8.2 mm | 12.5 mm | 3.5 mm | 14 mm | 12.5 mm | 57 mm | 20 mm | 19 mm | 100 . | pcs | 10 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M12 | 13 mm | 8.2 mm | 12.5 mm | 3.3 mm | 15 mm | 13.5 mm | 58 mm | 20 mm | 21 mm | 100 . | pcs | 12 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M6 | 6.4 mm | 8.2 mm | 12.5 mm | 3.8 mm | 11 mm | 11.5 mm | 55 mm | 20 mm | 18 mm | 100 . | pcs | 6 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M8 | 8.4 mm | 8.2 mm | 12.5 mm | 4 mm | 12 mm | 11 mm | 55 mm | 20 mm | 17 mm | 100 . | pcs | 8 . | 35 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M10 | 10.5 mm | 10 mm | 14.5 mm | 4 mm | 14 mm | 12.5 mm | 67 mm | 28 mm | 22 mm | 50 . | pcs | 10 . | 50 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M12 | 13 mm | 10 mm | 14.5 mm | 3.4 mm | 15 mm | 13.5 mm | 68 mm | 28 mm | 24 mm | 50 . | pcs | 12 . | 50 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M16 | 17 mm | 10 mm | 14.5 mm | 3 mm | 18 mm | 16 mm | 71 mm | 28 mm | 28 mm | 50 . | pcs | 16 . | 50 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M6 | 6.4 mm | 10 mm | 14.5 mm | 4.5 mm | 11 mm | 11 mm | 28 mm | 20 mm | 50 . | pcs | 6 . | 50 mm² |
Yes
|
|
|
|
| CABLE LUG KRDIN 50mm2, M8 | 8.4 mm | 10 mm | 14.5 mm | 4.5 mm | 12 mm | 11 mm | 65 mm | 28 mm | 20 mm | 50 . | pcs | 8 . | 50 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M10 | 10.5 mm | 11.5 mm | 16.5 mm | 4.5 mm | 14 mm | 12.5 mm | 70 mm | 28 mm | 24 mm | 50 . | pcs | 10 . | 70 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M12 | 13 mm | 11.5 mm | 16.5 mm | 4.5 mm | 15 mm | 13.5 mm | 71 mm | 28 mm | 24 mm | 50 . | pcs | 12 . | 70 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M8 | 8.4 mm | 11.5 mm | 16.5 mm | 4.5 mm | 12 mm | 11 mm | 68 mm | 28 mm | 24 mm | 50 . | pcs | 8 . | 70 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M10 | 10.5 mm | 13.5 mm | 19 mm | 4.8 mm | 14 mm | 12.5 mm | 80 mm | 35 mm | 28 mm | 50 . | pcs | 10 . | 95 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M12 | 13 mm | 13.5 mm | 19 mm | 4.8 mm | 15 mm | 14 mm | 81 mm | 35 mm | 28 mm | 50 . | pcs | 12 . | 95 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M8 | 8.4 mm | 13.5 mm | 19 mm | 4.8 mm | 11 mm | 12.5 mm | 77 mm | 35 mm | 28 mm | 50 . | pcs | 8 . | 95 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M10 | 10.5 mm | 15.5 mm | 21 mm | 4.7 mm | 14 mm | 13 mm | 85 mm | 35 mm | 32 mm | 25 . | pcs | 10 . | 120 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M12 | 13 mm | 15.5 mm | 21 mm | 4.7 mm | 15 mm | 14 mm | 86 mm | 35 mm | 32 mm | 25 . | pcs | 12 . | 120 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M8 | 8.4 mm | 15.5 mm | 21 mm | 4.7 mm | 12 mm | 13 mm | 35 mm | 32 mm | 25 . | pcs | 8 . | 120 mm² |
Yes
|
|
|
|
| CABLE LUG KRDIN 150mm2, M10 | 10.5 mm | 17 mm | 23.5 mm | 6 mm | 14 mm | 13 mm | 93 mm | 35 mm | 34 mm | 25 . | pcs | 10 . | 150 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 150mm2, M12 | 13 mm | 17 mm | 23.5 mm | 6 mm | 15 mm | 14 mm | 94 mm | 35 mm | 34 mm | 25 . | pcs | 12 . | 150 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 185mm2, M12 | 13 mm | 19 mm | 25.5 mm | 6 mm | 15 mm | 14 mm | 98 mm | 40 mm | 37 mm | 25 . | pcs | 12 . | 185 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 240mm2, M12 | 13 mm | 21.5 mm | 29 mm | 6.8 mm | 15 mm | 14 mm | 108 mm | 40 mm | 42 mm | 10 . | pcs | 12 . | 240 mm² |
Yes
|
|
|
| CABLE LUG KRDIN 300mm2, M12 | 13 mm | 24.5 mm | 32 mm | 7 mm | 15 mm | 13.5 mm | 116 mm | 50 mm | 48 mm | 10 . | pcs | 12 . | 300 mm² |
No
|
|
|
| CABLE LUG KRDIN 300mm2, M16 | 17 mm | 24.5 mm | 32 mm | 7 mm | 18 mm | 119 mm | 50 mm | 48 mm | 10 . | pcs | 16 . | 300 mm² |
No
|
|
|
|
| CABLE LUG KRDIN 400mm2, M12 | 13 mm | 27.5 mm | 38.5 mm | 10 mm | 24 mm | 16.5 mm | 70 mm | 55 mm | 10 . | pcs | 12 . | 400 mm² |
No
|
|
|
|
| CABLE LUG KRDIN 500mm2, M12 | 13 mm | 31 mm | 42 mm | 10 mm | 24 mm | 150 mm | 70 mm | 60 mm | 5 . | pcs | 12 . | 500 mm² |
No
|
|
|
|
| CABLE LUG KRDIN 500mm2, M16 | 17 mm | 31 mm | 42 mm | 10 mm | 24 mm | 150 mm | 70 mm | 60 mm | 5 . | pcs | 16 . | 500 mm² |
No
|
|
|
- Total: 41
Similar Options
Approvals
- Total: 41
- Total: 41
Technical Properties
- Total: 41
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Insulated | Number of mounting holes | Flange shape | Colour insulation | Slender flange model | With sight-hole | Conductor category | Surface protection | Material | Connecting angle | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRDIN 10mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M4 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M5 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M6 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M5 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M6 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M6 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M6 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M16 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M6 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M8 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 150mm2, M10 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 150mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 185mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 240mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
Yes
|
|
|
| CABLE LUG KRDIN 300mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
No
|
|
|
| CABLE LUG KRDIN 300mm2, M16 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
No
|
|
|
| CABLE LUG KRDIN 400mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
No
|
|
|
| CABLE LUG KRDIN 500mm2, M12 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
No
|
|
|
| CABLE LUG KRDIN 500mm2, M16 | Yes | Yes | No | 1 . | Ring shape | Other | No | No | Several | Tinned | Copper | 180° (horizontal) |
No
|
|
|
- Total: 41
Other information
- Total: 41
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CABLE LUG KRDIN 10mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2 | KRDIN10-10 |
Yes
|
|
|
|
| CABLE LUG KRDIN 10mm2, M4 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2 | KRDIN10-4 |
Yes
|
|
|
|
| CABLE LUG KRDIN 10mm2, M5 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2 | KRDIN10-5 |
Yes
|
|
|
|
| CABLE LUG KRDIN 10mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN10-6 | E0812789 |
Yes
|
|
|
| CABLE LUG KRDIN 10mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN10-8 | E0812790 |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN16-10 | E0812796 |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN16-12 | E0812797 |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M5 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN16-5 | E0812798 |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN16-6 | E0812799 |
Yes
|
|
|
| CABLE LUG KRDIN 16mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN16-8 | E0812800 |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN25-10 | E0812803 |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN25-12 | E0812804 |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN25-6 | E0812805 |
Yes
|
|
|
| CABLE LUG KRDIN 25mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN25-8 | E0812806 |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN35-10 | E0812808 |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN35-12 | E0812809 |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN35-6 | E0812810 |
Yes
|
|
|
| CABLE LUG KRDIN 35mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN35-8 | E0812811 |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN50-10 | E0812813 |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN50-12 | E0812814 |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M16 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN50-16 | E0812815 |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M6 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN50-6 | E0812816 |
Yes
|
|
|
| CABLE LUG KRDIN 50mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN50-8 | E0812817 |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN70-10 | E0812818 |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN70-12 | E0812819 |
Yes
|
|
|
| CABLE LUG KRDIN 70mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN70-8 | E0812820 |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN95-10 | E0812821 |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN95-12 | E0812822 |
Yes
|
|
|
| CABLE LUG KRDIN 95mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN95-8 | E0812823 |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN120-10 | E0812791 |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN120-12 | E0812792 |
Yes
|
|
|
| CABLE LUG KRDIN 120mm2, M8 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN120-8 | E0812793 |
Yes
|
|
|
| CABLE LUG KRDIN 150mm2, M10 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN150-10 | E0812794 |
Yes
|
|
|
| CABLE LUG KRDIN 150mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN150-12 | E0812795 |
Yes
|
|
|
| CABLE LUG KRDIN 185mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN185-12 | E0812801 |
Yes
|
|
|
| CABLE LUG KRDIN 240mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | SKH2023ERIK2, ENR2025V | KRDIN240-12 | E0812802 |
Yes
|
|
|
| CABLE LUG KRDIN 300mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | ENR2025V | KRDIN300-12 | E0812807 |
No
|
|
|
| CABLE LUG KRDIN 300mm2, M16 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | KRDIN300-16 |
No
|
|
|
||
| CABLE LUG KRDIN 400mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | ENR2025V | KRDIN400-12 | E0812812 |
No
|
|
|
| CABLE LUG KRDIN 500mm2, M12 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | KRDIN500-12 |
No
|
|
|
||
| CABLE LUG KRDIN 500mm2, M16 | EC001051 - Tube cable lug for copper conductors | 9.0 |
|
Cable lugs | KRDIN500-16 |
No
|
|
|
- Total: 41
Back to top
Do you need help finding the right product or other advice contact us.
