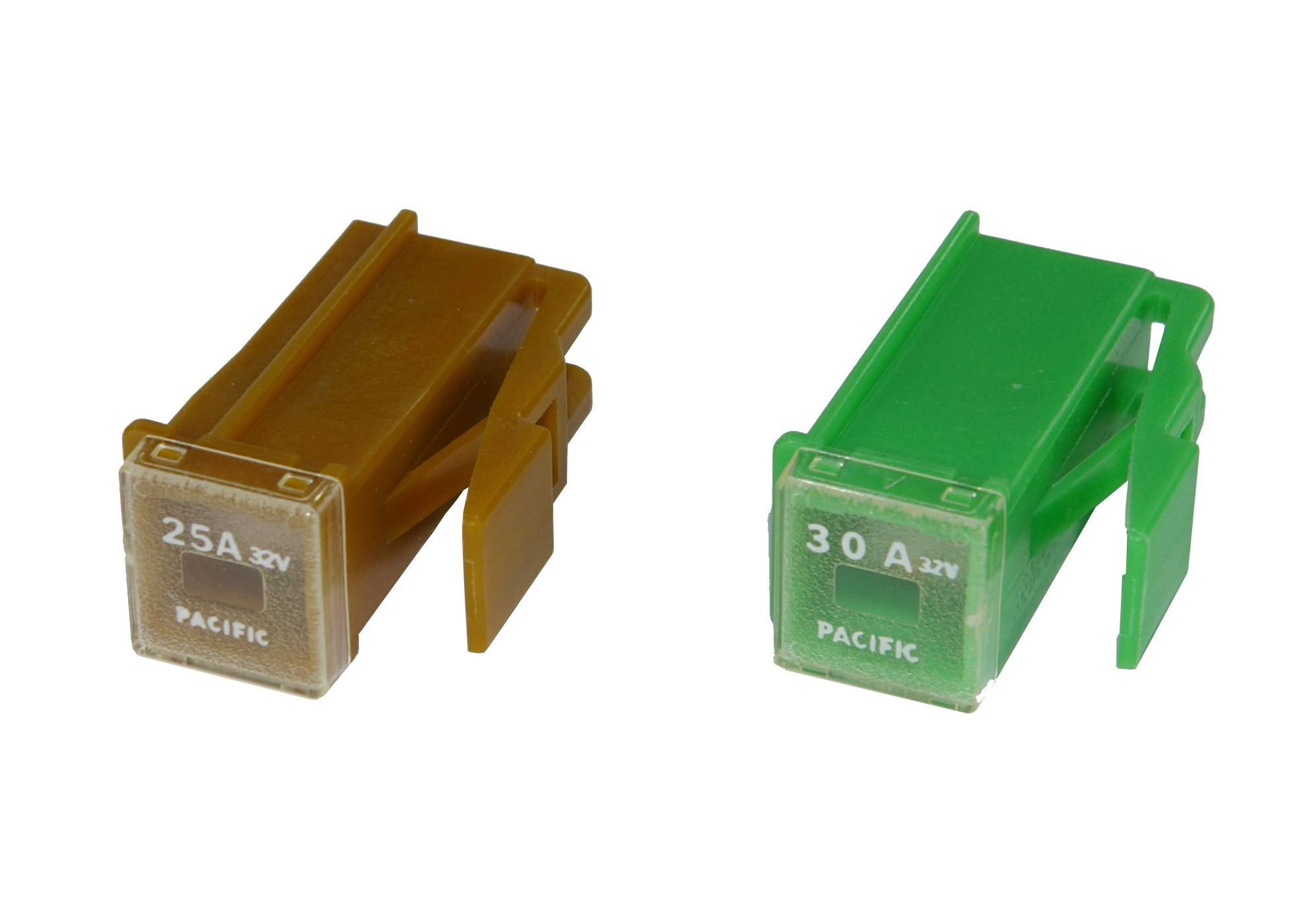

Japanese fuses - D series
D
Maximum voltage: 32 V DCCurrent rating: 25-35 A
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Brown
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 25 A, 30 A
- Nominal current:
- 25 A, 30 A
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 2
| Product Description | Width | MOQ | Unit | Mounting holes | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 25A BROWN | 14 mm | 10 . | pcs | Other | 13 mm | 27 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A GREEN | 14 mm | 10 . | pcs | Other | 13 mm | 27 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| JAPANESE FUSE LINKS, 25A BROWN |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A GREEN |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Explosion-proof | Release characteristic | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Max. current (Imax) | Nominal current | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 25A BROWN | No | Time-lag (T) | Yes | DC | Brown | 32 V | 32 V | 25 A | 25 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A GREEN | No | Time-lag (T) | Yes | DC | Brown | 32 V | 32 V | 30 A | 30 A | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, 25A BROWN | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | D25A |
Yes
|
|
|
| JAPANESE FUSE LINKS, 30A GREEN | EC004122 - Strip fuse | DYNAMIC |
|
Japanese fuses | D30A |
Yes
|
|
|
- Total: 2
