Förskruvning, RSF

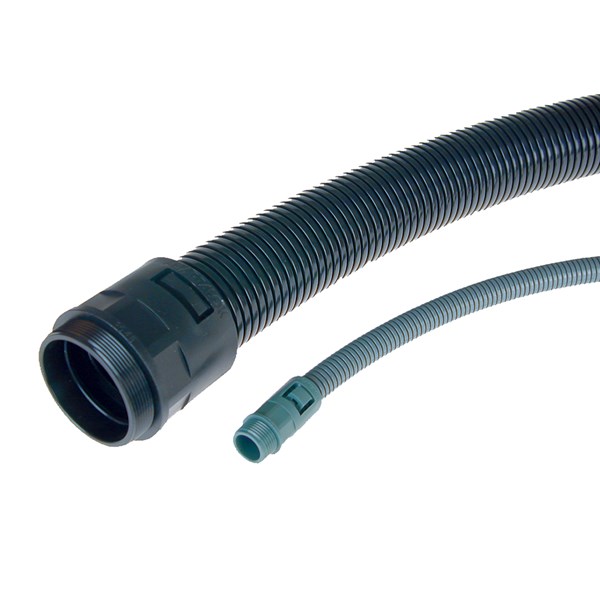

Conduit fittings of polyamide with secure two-sidedsnap-lock. Fittings consists only of one part and is therefore easy to install.All metric fittings are supplied including lock nut.Material: Polyamide 6Temperature range: -40 degrees Celsius to +120 degrees Celsius Colour: Black RAL 8022Protection: IP 66Other properties: Halogen free, UV-resistant (black), IEC 613386/EN 50086non-flammable acc. to IEC 613386/EN 50086
Technical properties
- Revolving thread:
- No
- Thread material:
- Polyamide (PA)
- Degree of protection (IP):
- IP66
- Model:
- Straight
- Type of connection:
- Snap connection
- Transparent:
- No
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -45-120 °C
- Material:
- Polyamide (PA)
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
Show more
Item List
- Total: 19
- Total: 19
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 19
| Product Description | Thread size | Nominal diameter | Thread connection size | Total height | Lowest inner diameter hose | Max. outer diameter hose | MOQ | Unit | Total length | Thread length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW10 | 16 . | 10 mm | M16 x 1.5 | 19 mm | 11.6 mm | 21.3 mm | 20 . | pcs | 44.5 mm | 11.5 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW12 | 16 . | 12 mm | M16 x 1.5 | 23.4 mm | 15.3 mm | 23.7 mm | 20 . | pcs | 44.5 mm | 11.5 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW12 | 20 . | 12 mm | M20 x 1.5 | 23 mm | 15 mm | 26.3 mm | 20 . | pcs | 45.5 mm | 11.5 mm |
No
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW17 | 20 . | 17 mm | M20 x 1.5 | 26.7 mm | 14.8 mm | 28.9 mm | 20 . | pcs | 48.7 mm | 14 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M25, CONDUIT NW23 | 25 . | 23 mm | M25 x 1.5 | 35.5 mm | 20 mm | 36.8 mm | 20 . | pcs | 53 mm | 16 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M32, CONDUIT NW29 | 32 . | 29 mm | M32 x 1.5 | 41.5 mm | 26.5 mm | 43.2 mm | 10 . | pcs | 53.8 mm | 16 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M40, CONDUIT NW36 | 40 . | 36 mm | M40 x 1.5 | 52.8 mm | 31 mm | 53.8 mm | 2 . | pcs | 63.8 mm | 16 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M50, CONDUIT NW48 | 50 . | 48 mm | M50 x 1.5 | 67.2 mm | 40.2 mm | 66.9 mm | 2 . | pcs | 69 mm | 16 mm |
No
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG7, CONDUIT NW7 | 12.5 . | 7 mm | PG7 | 15.2 mm | 8 mm | 16.1 mm | 20 . | pcs | 33.1 mm | 8 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG9, CONDUIT NW10 | 15.2 . | 10 mm | PG9 | 18.4 mm | 11.4 mm | 21.3 mm | 20 . | pcs | 41.4 mm | 10 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG11, CONDUIT NW12 | 18.6 . | 12 mm | PG11 | 21.7 mm | 12.5 mm | 23.7 mm | 20 . | pcs | 43 mm | 10 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW12 | 20.4 . | 12 mm | PG13.5 | 23.6 mm | 12.5 mm | 23.7 mm | 20 . | pcs | 43 mm | 10 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW17 | 20.4 . | 17 mm | PG13.5 | 26.8 mm | 17 mm | 28.9 mm | 20 . | pcs | 44.5 mm | 10 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW12 | 22.5 . | 12 mm | PG16 | 26.8 mm | 14.5 mm | 23.7 mm | 20 . | pcs | 44.5 mm | 11.5 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW17 | 22.5 . | 17 mm | PG16 | 26.8 mm | 17.7 mm | 28.9 mm | 20 . | pcs | 46 mm | 11.5 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG21, CONDUIT NW23 | 28.3 . | 23 mm | PG21 | 35.5 mm | 22.3 mm | 36.8 mm | 20 . | pcs | 49.1 mm | 12.2 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG29, CONDUIT NW29 | 37 . | 29 mm | PG29 | 41.5 mm | 30.1 mm | 43 mm | 10 . | pcs | 50 mm | 12.2 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG36, CONDUIT NW36 | 47 . | 36 mm | PG36 | 52.7 mm | 38 mm | 53.8 mm | 2 . | pcs | 60.1 mm | 12.2 mm |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG48, CONDUIT NW48 | 59.3 . | 48 mm | PG48 | 67.2 mm | 49.3 mm | 66.8 mm | 2 . | pcs | 64.9 mm | 12.2 mm |
Yes
|
|
|
- Total: 19
Similar Options
Approvals
- Total: 19
| Product Description | Approved according to UR | Approved according to Lloyd's Register TA | Approved according to NF F 16-101 | Approved in combination with protective conduit CSA | Approved in combination with protective conduit UR | Approved in combination with protective conduit VD TÜV/GGVS | Approved in combination with protective conduit DIN EN 61386-23 | Approved in combination with protective conduit Lloyd's Register | Degree of protection (IP) | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW10 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, M25, CONDUIT NW23 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, M32, CONDUIT NW29 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, M40, CONDUIT NW36 |
|
Yes | Yes | No | Yes | No | Yes | Yes | IP66 |
|
|
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M50, CONDUIT NW48 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG7, CONDUIT NW7 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG9, CONDUIT NW10 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG11, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG21, CONDUIT NW23 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG29, CONDUIT NW29 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG36, CONDUIT NW36 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
|||||
| CONDUIT FITTING STRAIGHT BLACK, PG48, CONDUIT NW48 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
- Total: 19
Technical Properties
- Total: 19
| Product Description | Revolving thread | Thread material | Degree of protection (IP) | Model | Type of connection | Transparent | Thread type | Construction type | Colour | Operating temperature | Material | Halogen free | Suitable in fire resistance areas | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW10 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW12 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW12 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW17 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, M25, CONDUIT NW23 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, M32, CONDUIT NW29 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, M40, CONDUIT NW36 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) | Yes | Yes |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M50, CONDUIT NW48 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG7, CONDUIT NW7 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG9, CONDUIT NW10 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG11, CONDUIT NW12 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW12 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW17 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW12 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW17 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG21, CONDUIT NW23 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG29, CONDUIT NW29 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG36, CONDUIT NW36 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
||
| CONDUIT FITTING STRAIGHT BLACK, PG48, CONDUIT NW48 | No | Polyamide (PA) | IP66 | Straight | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
- Total: 19
Other information
- Total: 19
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW10 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL13/M16/A/BL, 7TCA296000R0188 | RSF-M16B-10 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M16, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/M16/A/BL, 7TCA296000R0350 | RSF-M16B-12 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/M20/A/BL, 7TCA296000R0384 | RSF-M20B-12 |
No
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M20, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/M20/A/BL, 7TCA296000R0585 | RSF-M20B-17 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M25, CONDUIT NW23 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL28/M25/A/BL, 7TCA296000R0797 | RSF-M25B-23 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M32, CONDUIT NW29 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL34/M32/A/BL, 7TCA296000R0957 | RSF-M32B-29 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M40, CONDUIT NW36 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL42/M40/A/BL, 7TCA296000R1081 | RSF-M40B-36 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, M50, CONDUIT NW48 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL54/M50/A/BL, 7TCA296000R1213 | RSF-M50B-48 |
No
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG7, CONDUIT NW7 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL10/PG7/A/BL, 7TCA296000R0143 | SF-PG7B-7S |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG9, CONDUIT NW10 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL13/PG9/A/BL, 7TCA296000R0253 | RSF-PG9B-10 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG11, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG11/A/BL, 7TCA296000R0412 | RSF-PG11B-12 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG13/A/BL, 7TCA296000R0443 | RSF-PG13B-12 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG13.5, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/PG13/A/BL, 7TCA296000R0643 | RSF-PG13B-17 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG16/A/BL, 7TCA296000R0462 | RSF-PG16B-12 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG16, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/PG16/A/BL, 7TCA296000R0674 | RSF-PG16B-17 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG21, CONDUIT NW23 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL28/PG21/A/BL, 7TCA296000R0851 | RSF-PG21B-23 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG29, CONDUIT NW29 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL34/PG29/A/BL, 7TCA296000R1002 | RSF-PG29B-29 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG36, CONDUIT NW36 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL42/PG36/A/BL, 7TCA296000R1122 | RSF-PG36B-36 |
Yes
|
|
|
| CONDUIT FITTING STRAIGHT BLACK, PG48, CONDUIT NW48 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL54/PG48/A/BL, 7TCA296000R1278 | RSF-PG48B-48 |
Yes
|
|
|
- Total: 19
