Förskruvning, RAF 90º
RAF 90º

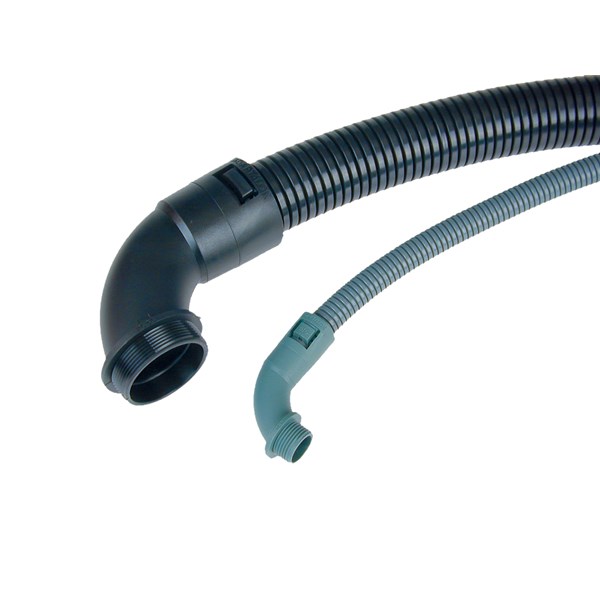

Slangförskruvning av polyamid med säker tvåsidig snäpplåsning. Förskruvningarna består endast av en del och är därför enkla att montera. Alla metriska förskruvningar levereras inklusive kontramutter.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Färg: Svart RAL 8022
Skyddsklass: IP 66
Övriga egenskaper: Halogen fri, UV-beständig, flamavvisande enligt IEC 613386/EN 50086
Technical properties
- Revolving thread:
- No
- Thread material:
- Polyamide (PA)
- Degree of protection (IP):
- IP66
- Model:
- 90°-Bend
- Type of connection:
- Snap connection
- Transparent:
- No
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -45-120 °C
- Material:
- Polyamide (PA)
Show more
Item List
- Total: 17
- Total: 17
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 17
Product Description | Thread size | Nominal diameter | Thread connection size | Total height | Lowest inner diameter hose | MOQ | Unit | Total length | Thread length | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW10 | 16 . | 10 mm | M16 x 1.5 | 63.9 mm | 11.3 mm | 20 . | pcs | 43 mm | 11.5 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW12 | 16 . | 12 mm | M16 x 1.5 | 65.7 mm | 11.3 mm | 20 . | pcs | 44.6 mm | 11.5 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW12 | 20 . | 12 mm | M20 x 1.5 | 68.2 mm | 15.2 mm | 20 . | pcs | 46.1 mm | 13 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW17 | 20 . | 17 mm | M20 x 1.5 | 70 mm | 15.2 mm | 20 . | pcs | 49.1 mm | 13 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, M25, CONDUIT NW23 | 25 . | 23 mm | M25 x 1.5 | 80.5 mm | 20.2 mm | 20 . | pcs | 60.1 mm | 15 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, M32, CONDUIT NW29 | 32 . | 29 mm | M32 x 1.5 | 93.2 mm | 25.9 mm | 10 . | pcs | 74 mm | 16 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, M40, CONDUIT NW36 | 40 . | 36 mm | M40 x 1.5 | 116 mm | 34 mm | 2 . | pcs | 89.5 mm | 16 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, M50, CONDUIT NW48 | 50 . | 48 mm | M50 x 1.5 | 144.5 mm | 40.2 mm | 1 . | pcs | 111.1 mm | 16 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG7, CONDUIT NW7 | 12.5 . | 7 mm | PG7 | 48.8 mm | 6.1 mm | 20 . | pcs | 25.8 mm | 8 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG9, CONDUIT NW10 | 15.2 . | 10 mm | PG9 | 63.9 mm | 11.2 mm | 20 . | pcs | 41.7 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG11, CONDUIT NW12 | 18.6 . | 12 mm | PG11 | 67.2 mm | 14.4 mm | 20 . | pcs | 43.2 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG13, CONDUIT NW12 | 20.4 . | 12 mm | PG13.5 | 68.1 mm | 14.7 mm | 20 . | pcs | 43.2 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG16, CONDUIT NW17 | 22.5 . | 17 mm | PG16 | 70.1 mm | 15.2 mm | 20 . | pcs | 47.6 mm | 11.2 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG21, CONDUIT NW23 | 28.3 . | 23 mm | PG21 | 81.8 mm | 21.9 mm | 20 . | pcs | 57.7 mm | 12.2 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG29, CONDUIT NW29 | 37 . | 29 mm | PG29 | 96.2 mm | 29 mm | 10 . | pcs | 69.2 mm | 12.2 mm |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG36, CONDUIT NW36 | 47 . | 36 mm | PG36 | 119.1 mm | 39.1 mm | 2 . | pcs | 85.5 mm | 12.2 mm |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG48, CONDUIT NW48 | 59.3 . | 48 mm | PG48 | 148.8 mm | 50.8 mm | 2 . | pcs | 107.1 mm | 12.2 mm |
Yes
|
|
|
- Total: 17
Similar Options
Approvals
- Total: 17
Product Description | Approved in combination with protective conduit CSA | Approved in combination with protective conduit UR | Approved in combination with protective conduit VD TÜV/GGVS | Approved in combination with protective conduit DIN EN 61386-23 | Approved in combination with protective conduit Lloyd's Register | Degree of protection (IP) | Availability | ||
---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW10 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M25, CONDUIT NW23 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M32, CONDUIT NW29 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M40, CONDUIT NW36 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M50, CONDUIT NW48 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG7, CONDUIT NW7 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG9, CONDUIT NW10 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG11, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG13, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG16, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG21, CONDUIT NW23 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG29, CONDUIT NW29 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG36, CONDUIT NW36 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG48, CONDUIT NW48 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
- Total: 17
Technical Properties
- Total: 17
Product Description | Revolving thread | Thread material | Degree of protection (IP) | Model | Type of connection | Transparent | Thread type | Construction type | Colour | Operating temperature | Material | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW10 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW17 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, M25, CONDUIT NW23 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, M32, CONDUIT NW29 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, M40, CONDUIT NW36 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, M50, CONDUIT NW48 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG7, CONDUIT NW7 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG9, CONDUIT NW10 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG11, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG13, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG16, CONDUIT NW17 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG21, CONDUIT NW23 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG29, CONDUIT NW29 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG36, CONDUIT NW36 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG48, CONDUIT NW48 | No | Polyamide (PA) | IP66 | 90°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
- Total: 17
Other information
- Total: 17
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW10 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL13/M16/C90/BL, 7TCA296000R0195 | RAF-M16B-10-90 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M16, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/M16/C90/BL, 7TCA296000R0361 | RAF-M16B-12-90 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/M20/C90/BL, 7TCA296000R0390 | RAF-M20B-12-90 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, M20, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/M20/C90/BL, 7TCA296000R0596 | RAF-M20B-17-90 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M25, CONDUIT NW23 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL28/M25/C90/BL, 7TCA296000R0807 | RAF-M25B-23-90 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M32, CONDUIT NW29 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL34/M32/C90/BL, 7TCA296000R0964 | RAF-M32B-29-90 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M40, CONDUIT NW36 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL42/M40/C90/BL, 7TCA296000R1087 | RAF-M40B-36-90 |
No
|
|
|
CONDUIT FITTING 90° BLACK, M50, CONDUIT NW48 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL54/M50/C90/BL, 7TCA296000R1219 | RAF-M50B-48-90 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG7, CONDUIT NW7 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL10/PG7/C90/BL, 7TCA296000R0148 | RAF-PG7B-7S |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG9, CONDUIT NW10 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL13/PG9/C90, 7TCA296000R0259 | RAF-PG9B-10 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG11, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG11/C90/BL | RAF-PG11B-12 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG13, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG13/C90/BL, 7TCA296000R0450 | RAF-PG13B-12 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG16, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/PG16/C90/BL, 7TCA296000R0682 | RAF-PG16B-17 |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG21, CONDUIT NW23 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL28/PG21/90/BL, 7TCA296000R0845 | RAF-PG21B-23 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG29, CONDUIT NW29 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL34/PG29/C90/BL, 7TCA296000R1010 | RAF-PG29B-29 |
No
|
|
|
CONDUIT FITTING 90° BLACK, PG36, CONDUIT NW36 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL42/PG36/C90/BL, 7TCA296000R1130 | RAF-PG36B-36 |
Yes
|
|
|
CONDUIT FITTING 90° BLACK, PG48, CONDUIT NW48 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL54/PG48/C90/BL, 7TCA296000R1286 | RAF-PG48B-48 |
Yes
|
|
|
- Total: 17
