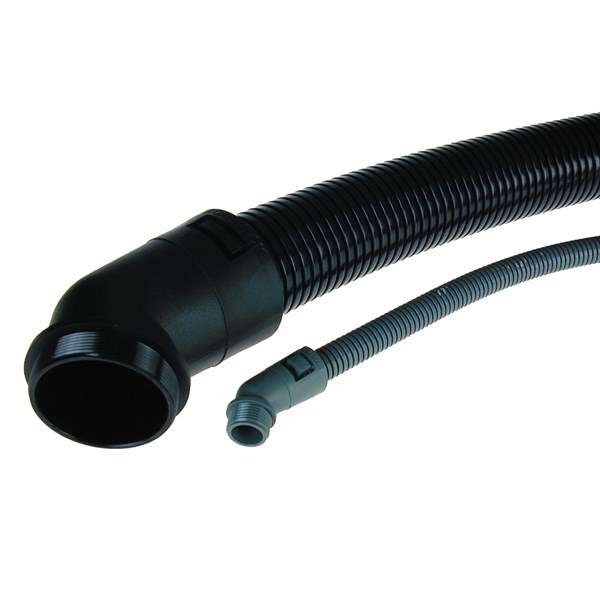

Förskruvning, RAF 45º
Conduit fittings of polyamide with secure two-sidedsnap-lock. Fittings consists only of one part and is therefore easy to install.All metric fittings are supplied including lock nut.Material: Polyamide 6Temperature range: -40 degrees Celsius to +120 degrees Celsius Colour: Black RAL 8022Protection: IP 66Other properties: Halogen free, UV-resistant (black),non-flammable acc. to IEC 613386/EN 50086
Technical properties
- Revolving thread:
- No
- Thread material:
- Polyamide (PA)
- Degree of protection (IP):
- IP66
- Model:
- 45°-Bend
- Type of connection:
- Snap connection
- Transparent:
- No
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -45-120 °C
- Material:
- Polyamide (PA)
Show more
Item List
- Total: 17
- Total: 17
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 17
Product Description | Thread size | Nominal diameter | Thread connection size | Total height | Lowest inner diameter hose | MOQ | Unit | Total length | Thread length | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW10 | 16 . | 10 mm | M16 x 1.5 | 34.7 mm | 11.9 mm | 20 . | pcs | 46.6 mm | 11.5 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW12 | 16 . | 12 mm | M16 x 1.5 | 41.7 mm | 11.6 mm | 20 . | pcs | 51.2 mm | 11.5 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW12 | 20 . | 12 mm | M20 x 1.5 | 42.7 mm | 15.3 mm | 20 . | pcs | 51.2 mm | 13 mm |
No
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW17 | 20 . | 17 mm | M20 x 1.5 | 48.8 mm | 15.5 mm | 20 . | pcs | 60 mm | 13 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M25, CONDUIT NW23 | 25 . | 23 mm | M25 x 1.5 | 59 mm | 20.5 mm | 20 . | pcs | 71.5 mm | 15 mm |
No
|
|
|
CONDUIT FITTING 45° BLACK, M32, CONDUIT NW29 | 32 . | 29 mm | M32 x 1.5 | 65 mm | 26.5 mm | 10 . | pcs | 75.4 mm | 16 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M40, CONDUIT NW36 | 40 . | 36 mm | M40 x 1.5 | 85.1 mm | 34 mm | 2 . | pcs | 94 mm | 16 mm |
No
|
|
|
CONDUIT FITTING 45° BLACK, M50, CONDUIT NW48 | 50 . | 48 mm | M50 x 1.5 | 104 mm | 43.5 mm | 2 . | pcs | 112.1 mm | 16 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG9, CONDUIT NW10 | 15.2 . | 10 mm | PG9 | 34.7 mm | 11.7 mm | 20 . | pcs | 45.1 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG11, CONDUIT NW12 | 18.6 . | 12 mm | PG11 | 41.9 mm | 13.4 mm | 20 . | pcs | 49.7 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW12 | 20.4 . | 12 mm | PG13.5 | 42.7 mm | 13.3 mm | 20 . | pcs | 49.7 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW17 | 20.4 . | 17 mm | PG13.5 | 48.8 mm | 15.5 mm | 20 . | pcs | 57.6 mm | 10 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG16, CONDUIT NW17 | 22.5 . | 17 mm | PG16 | 48.8 mm | 17.4 mm | 20 . | pcs | 58.2 mm | 11.2 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG21, CONDUIT NW23 | 28.3 . | 23 mm | PG21 | 59.9 mm | 24.1 mm | 20 . | pcs | 69.4 mm | 12.2 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG29, CONDUIT NW29 | 37 . | 29 mm | PG29 | 65.1 mm | 30.8 mm | 10 . | pcs | 71.6 mm | 12.2 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG36, CONDUIT NW36 | 47 . | 36 mm | PG36 | 85.1 mm | 41.4 mm | 2 . | pcs | 90.2 mm | 12.2 mm |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG48, CONDUIT NW48 | 59.3 . | 48 mm | PG48 | 105 mm | 52.4 mm | 2 . | pcs | 108.3 mm | 12.2 mm |
Yes
|
|
|
- Total: 17
Similar Options
Approvals
- Total: 17
Product Description | Approved in combination with protective conduit CSA | Approved in combination with protective conduit UR | Approved in combination with protective conduit VD TÜV/GGVS | Approved in combination with protective conduit DIN EN 61386-23 | Approved in combination with protective conduit Lloyd's Register | Degree of protection (IP) | Availability | ||
---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW10 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M25, CONDUIT NW23 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 45° BLACK, M32, CONDUIT NW29 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M40, CONDUIT NW36 | No | Yes | No | Yes | Yes | IP66 |
No
|
|
|
CONDUIT FITTING 45° BLACK, M50, CONDUIT NW48 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG9, CONDUIT NW10 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG11, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW12 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG16, CONDUIT NW17 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG21, CONDUIT NW23 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG29, CONDUIT NW29 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG36, CONDUIT NW36 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG48, CONDUIT NW48 | No | Yes | No | Yes | Yes | IP66 |
Yes
|
|
|
- Total: 17
Technical Properties
- Total: 17
Product Description | Revolving thread | Thread material | Degree of protection (IP) | Model | Type of connection | Transparent | Thread type | Construction type | Colour | Operating temperature | Material | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW10 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW17 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M25, CONDUIT NW23 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 45° BLACK, M32, CONDUIT NW29 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M40, CONDUIT NW36 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
No
|
|
|
CONDUIT FITTING 45° BLACK, M50, CONDUIT NW48 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | Metric | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG9, CONDUIT NW10 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG11, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW12 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW17 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG16, CONDUIT NW17 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG21, CONDUIT NW23 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG29, CONDUIT NW29 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG36, CONDUIT NW36 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG48, CONDUIT NW48 | No | Polyamide (PA) | IP66 | 45°-Bend | Snap connection | No | PG | External thread | Black | -45-120 °C | Polyamide (PA) |
Yes
|
|
|
- Total: 17
Other information
- Total: 17
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW10 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL13/M16/45/BL, 7TCA296000R0184 | RAF-M16B-10-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M16, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/M16/45/BL, 7TCA296000R0345 | RAF-M16B-12-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/M20/45/BL, 7TCA296000R0380 | RAF-M20B-12-45 |
No
|
|
|
CONDUIT FITTING 45° BLACK, M20, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/M20/45/BL, 7TCA296000R0578 | RAF-M20B-17-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M25, CONDUIT NW23 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL28/M25/45/BL, 7TCA296000R0791 | RAF-M25B-23-45 |
No
|
|
|
CONDUIT FITTING 45° BLACK, M32, CONDUIT NW29 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL34/M32/45/BL, 7TCA296000R0950 | RAF-M32B-29-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, M40, CONDUIT NW36 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL42/M40/45/BL, 7TCA296000R1079 | RAF-M40B-36-45 |
No
|
|
|
CONDUIT FITTING 45° BLACK, M50, CONDUIT NW48 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL54/M50/45/BL, 7TCA296000R1210 | RAF-M50B-48-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG9, CONDUIT NW10 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL13/PG9/45/BL, 7TCA296000R0250 | RAF-PG9B-10-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG11, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG11/45/BL | RAF-PG11B-12-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW12 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL16/PG13/45/BL, 7TCA296000R0438 | RAF-PG13B-12-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG13, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/PG13/45/BL, 7TCA296000R0639 | RAF-PG13B-17-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG16, CONDUIT NW17 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL21/PG16/45/BL, 7TCA296000R0664 | RAF-PG16B-17-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG21, CONDUIT NW23 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL28/PG21/45/BL, 7TCA296000R0843 | RAF-PG21B-23-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG29, CONDUIT NW29 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL34/PG29/45/BL, 7TCA296000R0996 | RAF-PG29B-29-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG36, CONDUIT NW36 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL42/PG36/45/BL, 7TCA296000R1117 | RAF-PG36B-36-45 |
Yes
|
|
|
CONDUIT FITTING 45° BLACK, PG48, CONDUIT NW48 | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | AL54/PG48/45/BL, 7TCA296000R1272 | RAF-PG48B-48-45 |
Yes
|
|
|
- Total: 17
