Flag terminals FLBX-series

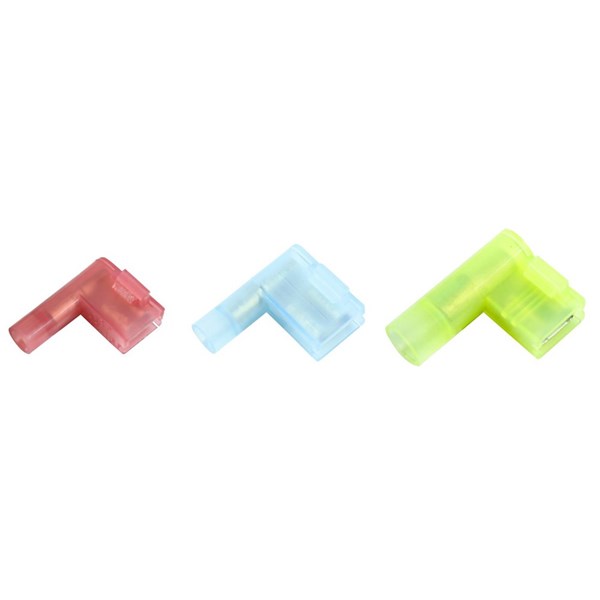

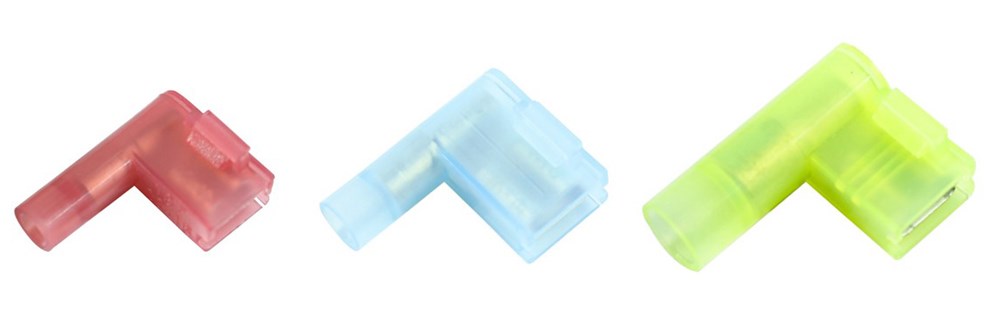

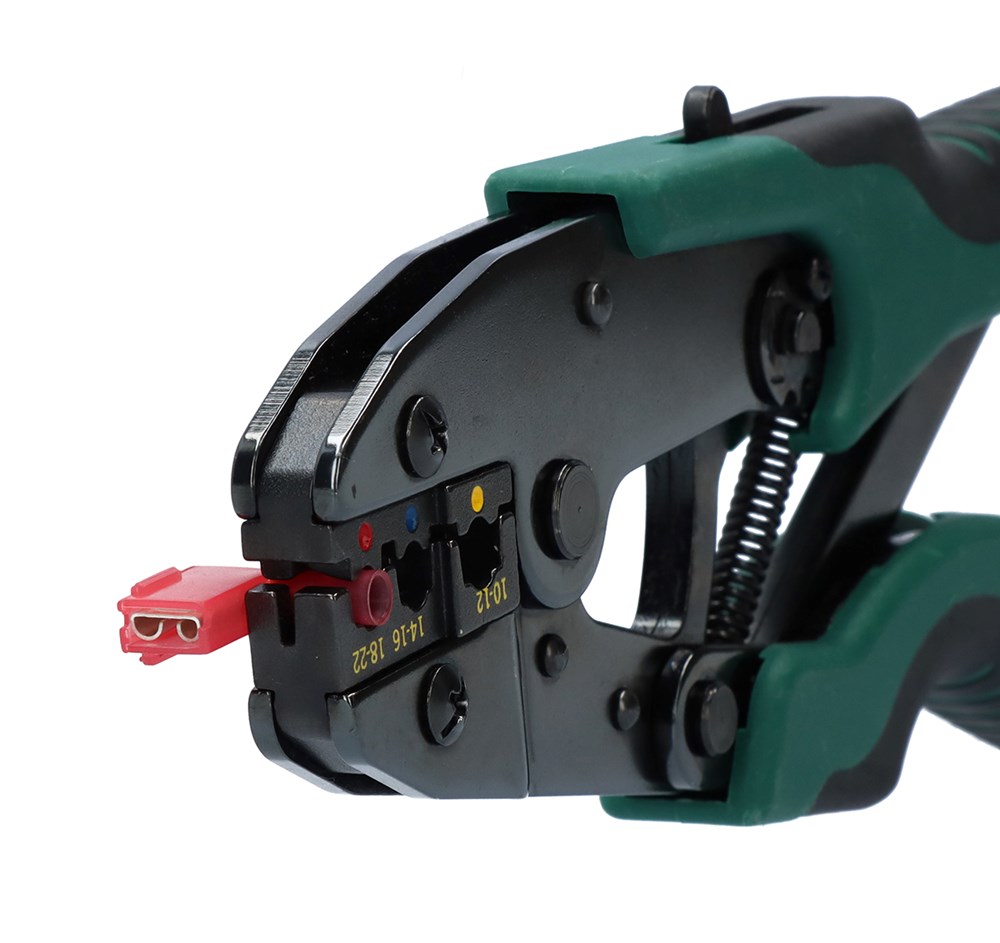

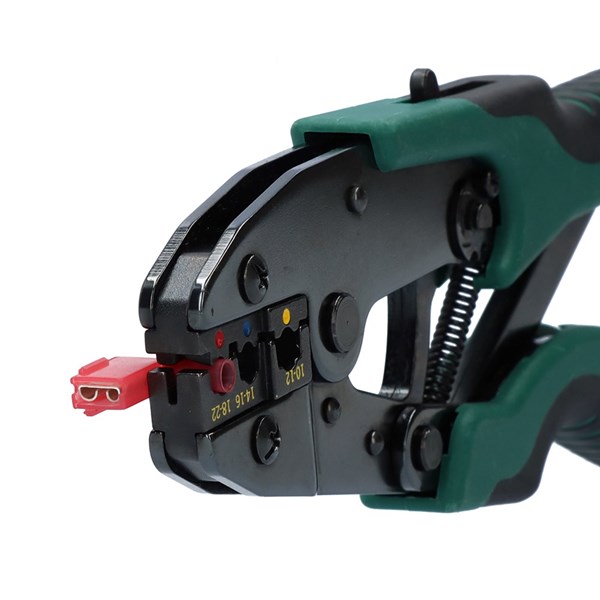

FLBX-series has a extra long copper sleeve, which makes it possible to use a standard crimping tool for insulated terminals.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 15 A, 10 A, 24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -60-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Packaging:
- Loose piece
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Dimensions
- Total: 7
Product Description | ID | L1 | L2 | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
INSULATED FLAG TERMINAL RED, 4.8x0.5mm | 3.5 mm | 19 mm | 8 mm | 11 mm | 4.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.5 mm |
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 4.8x0.8mm | 3.5 mm | 19 mm | 8 mm | 11 mm | 4.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.8 mm |
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 6.3x0.8mm | 3.5 mm | 19 mm | 9 mm | 11 mm | 6.3 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 6.3x0.8 mm |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.5mm | 4.8 mm | 19 mm | 8 mm | 11 mm | 4.8 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 4.8x0.5 mm |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.8mm | 4.8 mm | 19 mm | 8 mm | 11 mm | 4.8 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 4.8x0.8 mm |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm | 4.8 mm | 19 mm | 9 mm | 11 mm | 6.3 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 6.3x0.8 mm |
Yes
|
|
|
INSULATED FLAG TERMINAL YELLOW, 6.3x0.8mm | 6.5 mm | 19 mm | 10 mm | 13 mm | 6.3 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
Product Description | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
---|---|---|---|---|---|---|---|
INSULATED FLAG TERMINAL RED, 4.8x0.5mm |
|
|
|
|
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 4.8x0.8mm |
|
|
|
|
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 6.3x0.8mm |
|
|
|
|
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.5mm |
|
|
|
|
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.8mm |
|
|
|
|
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm |
|
|
|
|
Yes
|
|
|
INSULATED FLAG TERMINAL YELLOW, 6.3x0.8mm |
|
|
|
|
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
INSULATED FLAG TERMINAL RED, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 6.3x0.8mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
INSULATED FLAG TERMINAL YELLOW, 6.3x0.8mm | Yes | Yes | Bushing | 24 A | Partially isolated | Yellow | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|
INSULATED FLAG TERMINAL RED, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A1504FLBX-5 |
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A1504FLBX-8 |
Yes
|
|
|
INSULATED FLAG TERMINAL RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A1507FLBX-8 |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A2504FLBX-5 |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A2504FLBX-8 |
Yes
|
|
|
INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A2507FLBX-8 |
Yes
|
|
|
INSULATED FLAG TERMINAL YELLOW, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | A4607FLBX-8 |
Yes
|
|
|
- Total: 7
